NSN 5325-01-465-7836 HS44303, HS4430-3, 1127742
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-465-7836 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: HS44303, HS4430-3, 1127742, 26R1811AA, 26R18-1-1AA, 600030P46, 5325-01-465-7836, 01-465-7836, 5325014657836, 014657836
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1999 | 01-465-7836 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

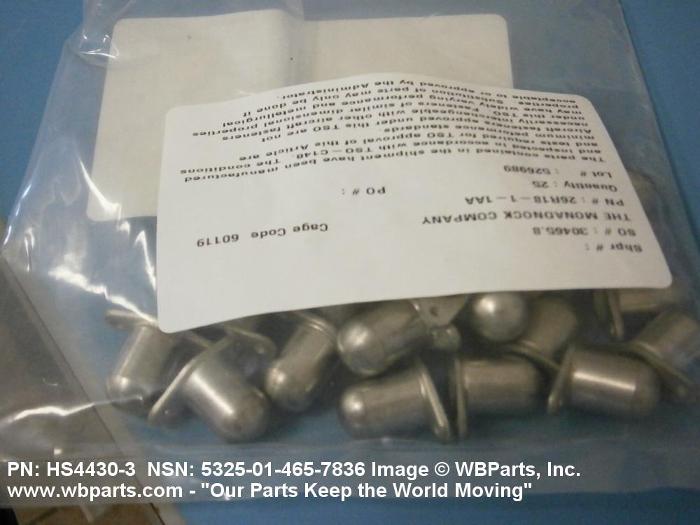

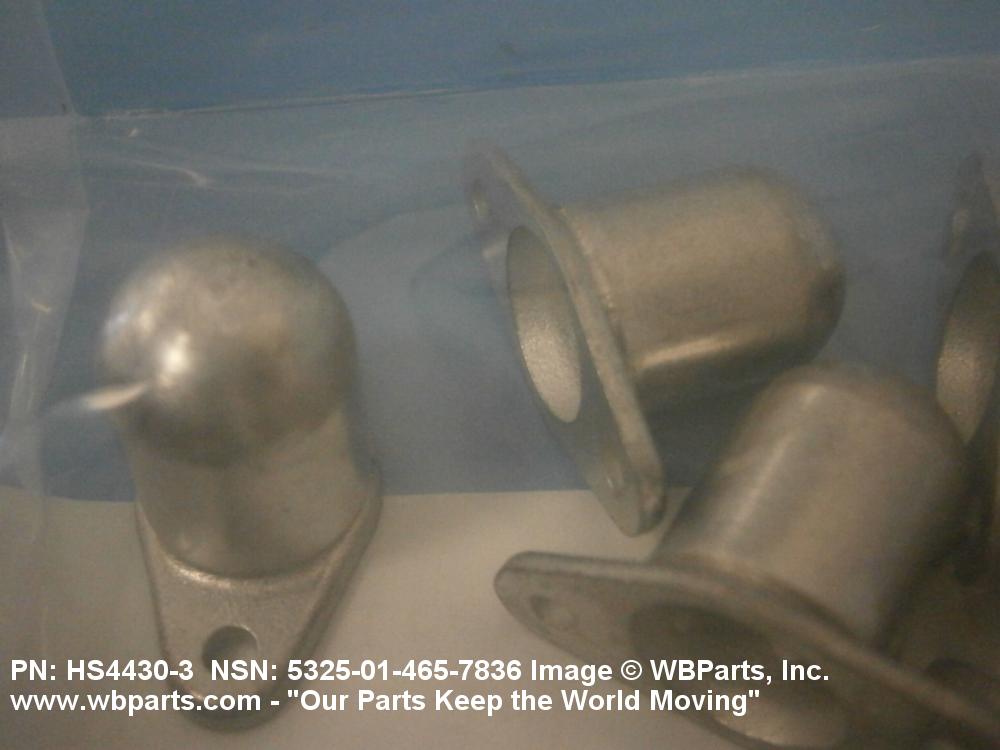

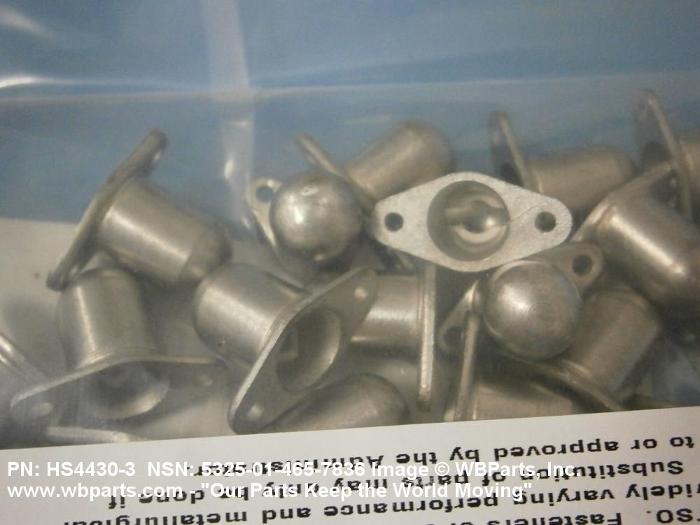

Drawings & Photos | NSN 5325-01-465-7836
Demand History | NSN 5325-01-465-7836
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26R1811AA | 2024-08-214 | 168 | United States |
| 1127742 | 2022-04-95 | 798 | DIBBS |
| 26R18-1-1AA | 2022-04-95 | 798 | DIBBS |
| 600030P46 | 2022-04-95 | 798 | DIBBS |
| 1127742 | 2020-12-344 | 320 | DIBBS |
| 26R18-1-1AA | 2020-12-344 | 320 | DIBBS |
| 600030P46 | 2020-12-344 | 320 | DIBBS |
| 1127742 | 2020-12-342 | 261 | DIBBS |
| 26R18-1-1AA | 2020-12-342 | 261 | DIBBS |
| 600030P46 | 2020-12-342 | 261 | DIBBS |
| 1127742 | 2020-11-329 | 261 | DIBBS |
| 26R18-1-1AA | 2020-11-329 | 261 | DIBBS |
| 600030P46 | 2020-11-329 | 261 | DIBBS |
| 5325-01-465-7836 | 2020-10-281 | 100 | United States |
| 1127742 | 2020-10-281 | 68 | DIBBS |
| 26R18-1-1AA | 2020-10-281 | 68 | DIBBS |
| 600030P46 | 2020-10-281 | 68 | DIBBS |
| 5325-01-465-7836 | 2020-09-273 | 10 | United States |
| 5325-01-465-7836 | 2020-09-273 | 100 | United States |
| 1127742 | 2020-09-268 | 68 | DIBBS |
| 26R18-1-1AA | 2020-09-268 | 68 | DIBBS |
| 600030P46 | 2020-09-268 | 68 | DIBBS |
| HS44303 | 2019-08-232 | 8 | US |
| 5325-01-465-7836 | 2018-02-38 | 319 | DIBBS |
| 1127742 | 2017-09-249 | 180 | United States |
| 5325-01-465-7836 | 2017-08-230 | 750 | US |
| 5325-01-465-7836 | 2017-02-46 | 30 | United States |
| 5325-01-465-7836 | 2017-02-46 | 60 | United States |
| 5325-01-465-7836 | 2014-07-196 | 493 | DIBBS |
| HS44303 | 2011-10-304 | 25 | United States |
| 5325-01-465-7836 | 2010-10-300 | 419 | DIBBS |
| 5325-01-465-7836 | 2010-09-247 | 209 | DIBBS |
| 5325-01-465-7836 | 2010-04-118 | 62 | DIBBS |
| 5325-01-465-7836 | 2010-04-100 | 225 | DIBBS |
| 5325-01-465-7836 | 2010-03-74 | 162 | DIBBS |
| 26R1811AA | 2010-03-69 | 120 | United States |
| 5325-01-465-7836 | 2010-03-62 | 200 | DIBBS |
| 26R1811AA | 2009-09-273 | 40 | Canada |
| 5325-01-465-7836 | 2009-01-06 | 81 | DIBBS |
| 5325-01-465-7836 | 2008-09-256 | 120 | DIBBS |
| 5325-01-465-7836 | 2008-07-197 | 91 | DIBBS |
| 5325-01-465-7836 | 2008-06-175 | 54 | DIBBS |
| 5325-01-465-7836 | 2008-06-169 | 54 | DIBBS |
Cross Reference | NSN 5325-01-465-7836
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-465-7836
Related Products | NSN 5325-01-465-7836
Technical Data | NSN 5325-01-465-7836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A743,GR CF-20 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK RECEPTACLE STYLE | 23 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 1.000 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.660 INCHES MINIMUM AND 0.720 INCHES MAXIMUM |
| RECEPTACLE WIDTH | 0.500 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | AH-64 |
Restrictions/Controls & Freight Information | NSN 5325-01-465-7836
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | QE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-465-7836
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
