NSN 5325-01-470-8849 M22529/2-3R-25, M2252923R25, NASM22529/2
Product Details | NONMETALLIC GROMMET
5325-01-470-8849 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: M22529/2-3R-25, M2252923R25, NASM22529/2, NASM225292, BT30025ER0602, BT3-0025-ER0602, 5325-01-470-8849, 01-470-8849, 5325014708849, 014708849
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JAN 2000 | 01-470-8849 | 06314 ( GROMMET, METALLIC ) |

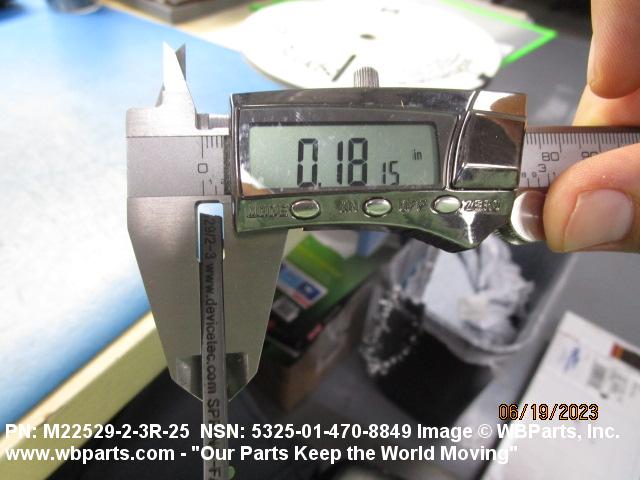

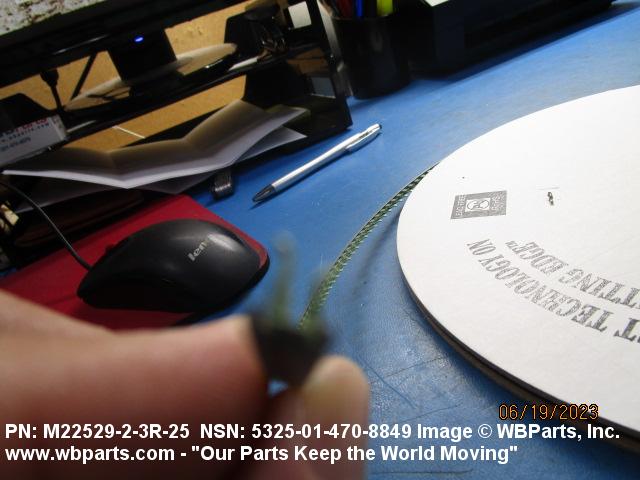

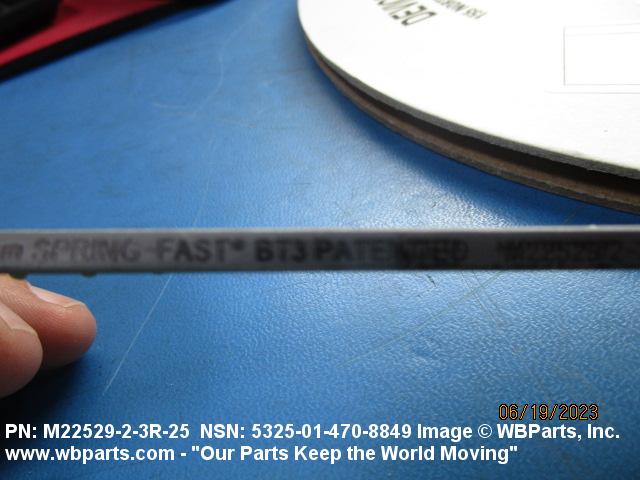

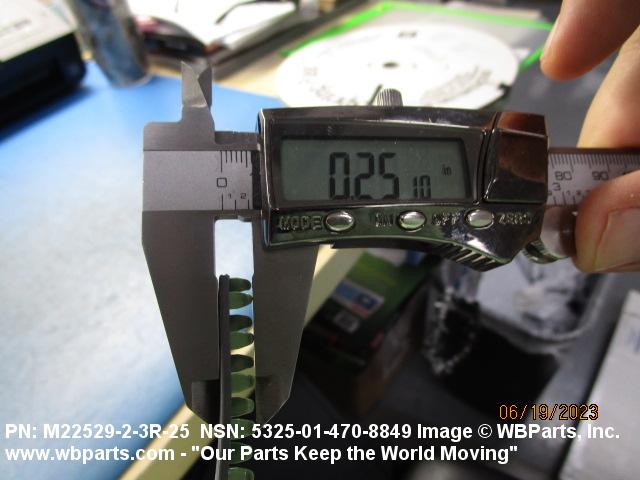

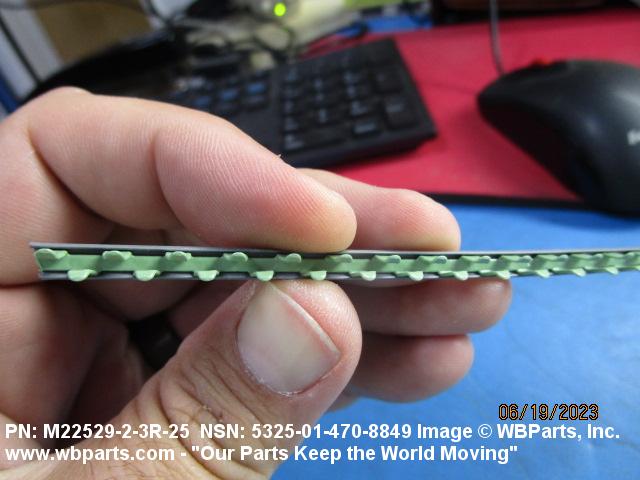

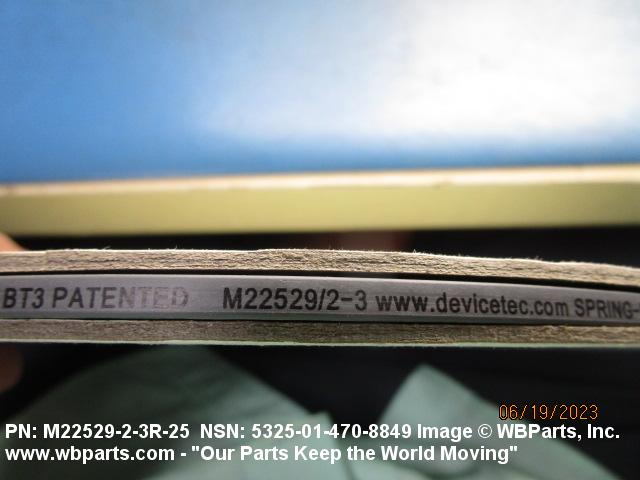

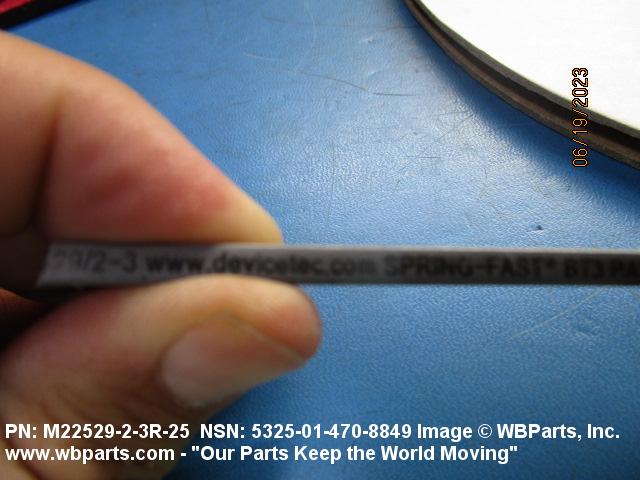

Drawings & Photos | NSN 5325-01-470-8849
Demand History | NSN 5325-01-470-8849
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-470-8849 | 2023-06-159 | 2 | United States |
| 5325-01-470-8849 | 2023-06-158 | 2 | US |
| M2252923R25 | 2022-02-33 | 10 | United States |
| 5325-01-470-8849 | 2014-12-364 | 42 | DIBBS |
| 5325-01-470-8849 | 2012-05-123 | 1215 | DIBBS |
| 5325-01-470-8849 | 2012-03-69 | 100 | DIBBS |
| 5325-01-470-8849 | 2011-07-206 | 60 | DIBBS |
| 5325-01-470-8849 | 2010-08-233 | 1 | DIBBS |
| NASM225292 | 2009-09-266 | 24 | us |
| 5325-01-470-8849 | 2008-11-328 | 1 | DIBBS |
| M2252923R25 | 2008-08-241 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-470-8849
Related Products | NSN 5325-01-470-8849
Technical Data | NSN 5325-01-470-8849
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 METALLIC PARTS |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5517 ASSN STD 1ST MATERIAL RESPONSE OR AMS5903 ASSN STD 2ND MATERIAL RESPONSE OR AMS5907 ASSN STD 3RD MATERIAL RESPONSE OR AMS5310 ASSN STD 4TH MATERIAL RESPONSE METALLIC PARTS |
| COLOR | GREEN OVERALL |
| GROMMET STYLE | 60 EDGING |
| GROOVE DEPTH | 0.180 INCHES NOMINAL |
| GROOVE WIDTH | 0.059 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.023 INCHES NOMINAL |
| OVERALL WIDTH | 0.220 INCHES NOMINAL |
| GROMMET OVERALL LENGTH | 300.000 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| SPECIAL FEATURES | 25FT.-REEL,LIME GREEN,FED-STD-595,COLOR NUMBER-15353 |
| III END ITEM IDENTIFICATION | AIRCRAFT (AC-130A,AC-130H,MC-130H,E) |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22529/2-3R-25 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NASM22529/2 |
Restrictions/Controls & Freight Information | NSN 5325-01-470-8849
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-470-8849
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QK | SX:"ROPE, HARDWARE, SPRINGS, SPACERS, AND ABRASIVES" |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
