NSN 5325-01-484-1719 NAS183244, NAS1832-4-4, 01-484-1719
Product Details | PANEL FASTENER INSERT

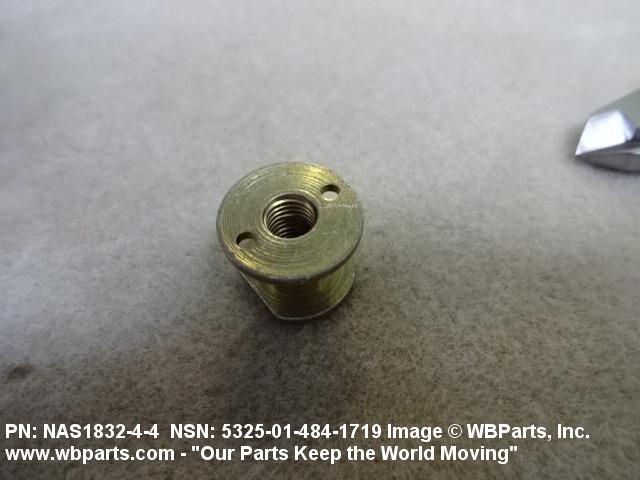

5325-01-484-1719 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS183244, NAS1832-4-4, 5325-01-484-1719, 01-484-1719, 5325014841719, 014841719
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 2001 | 01-484-1719 | 37444 ( INSERT, PANEL FASTENER ) |

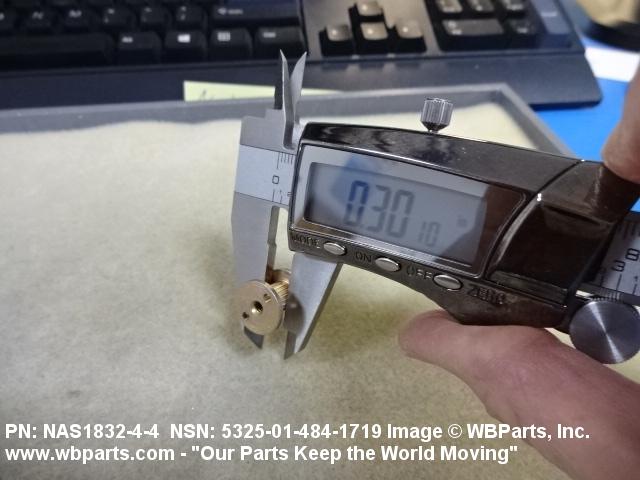

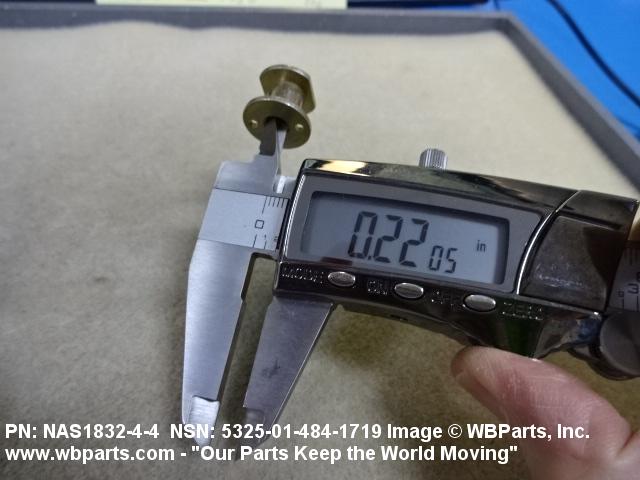

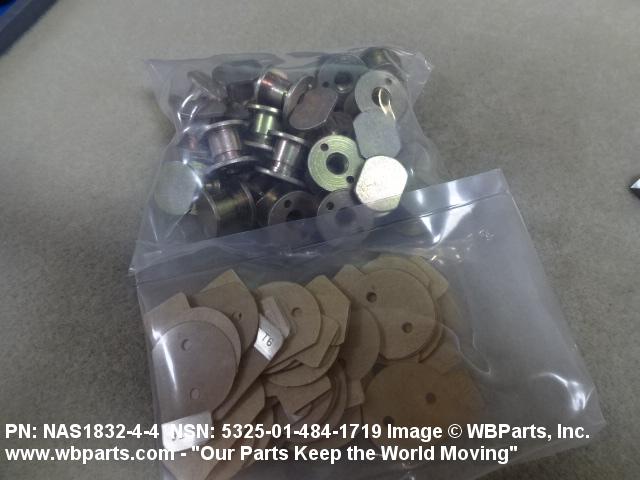

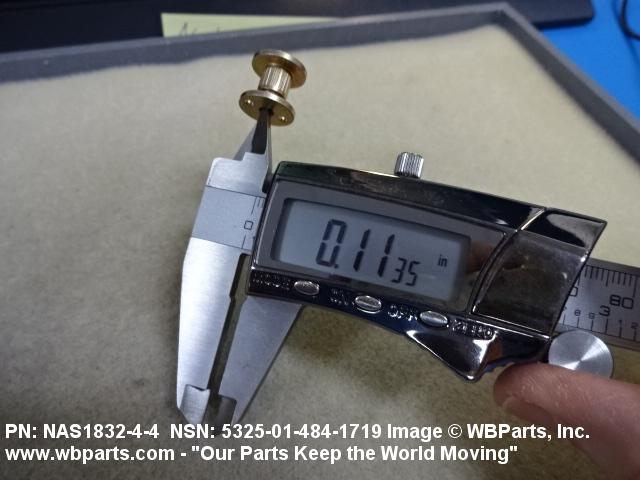

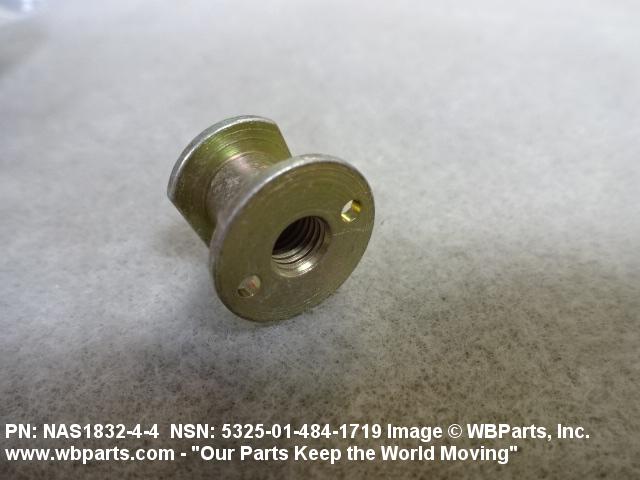

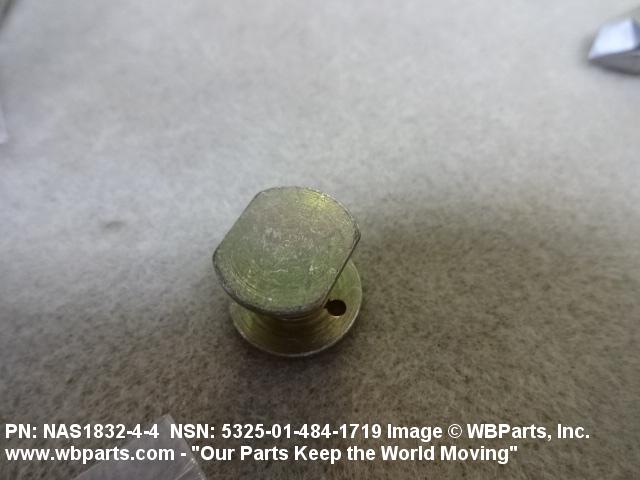

Drawings & Photos | NSN 5325-01-484-1719
Demand History | NSN 5325-01-484-1719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-484-1719 | 2025-05-127 | 16 | DIBBS |
| 5325-01-484-1719 | 2024-09-252 | 4 | DIBBS |
| 5325-01-484-1719 | 2024-07-196 | 6 | DIBBS |
| 5325-01-484-1719 | 2023-12-339 | 2 | DIBBS |
| 5325-01-484-1719 | 2023-11-309 | 8 | DIBBS |
| 5325-01-484-1719 | 2023-08-238 | 10 | US |
| 5325-01-484-1719 | 2023-05-136 | 25 | BE |
| 5325-01-484-1719 | 2022-06-164 | 2 | DIBBS |
| 5325-01-484-1719 | 2022-06-159 | 2 | DIBBS |
| 5325-01-484-1719 | 2021-12-341 | 12 | DIBBS |
| 5325-01-484-1719 | 2021-12-335 | 15 | DIBBS |
| NAS183244 | 2021-06-153 | 60 | US |
| NAS1832-4-4 | 2015-06-176 | 160 | Turkey |
| NAS183244 | 2011-01-06 | 50 | US |
| NAS183244 | 2011-01-06 | 100 | United States |
| NAS183244 | 2008-12-366 | 10 | US |
Cross Reference | NSN 5325-01-484-1719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1832-4-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-484-1719
Technical Data | NSN 5325-01-484-1719
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| INSERT STYLE | 19 PROTRUDING FLANGE |

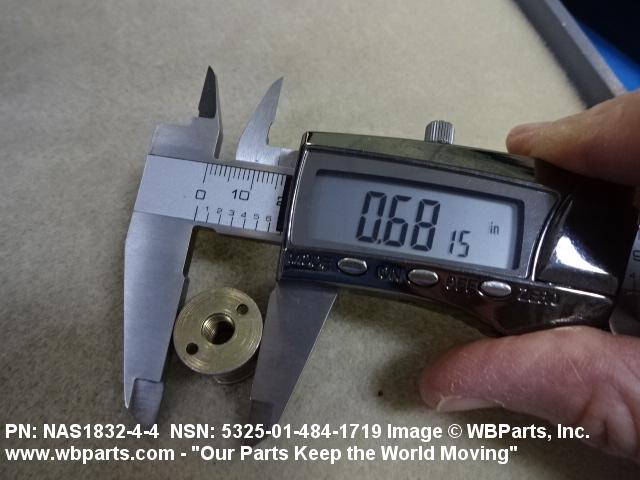

| FLANGE DIAMETER | 0.685 INCHES NOMINAL |

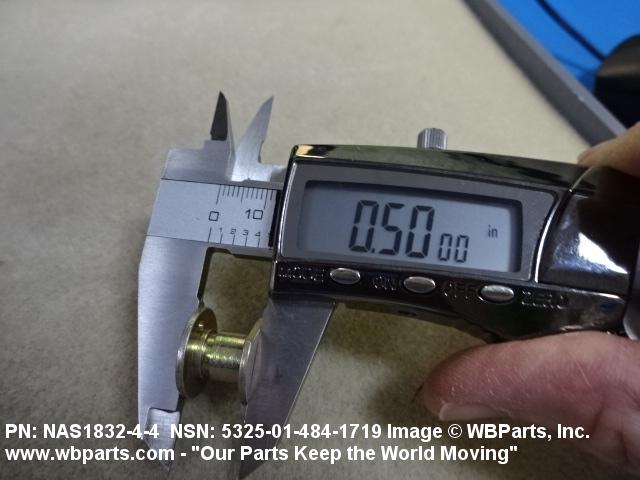

| OVERALL LENGTH | 0.500 INCHES MINIMUM |

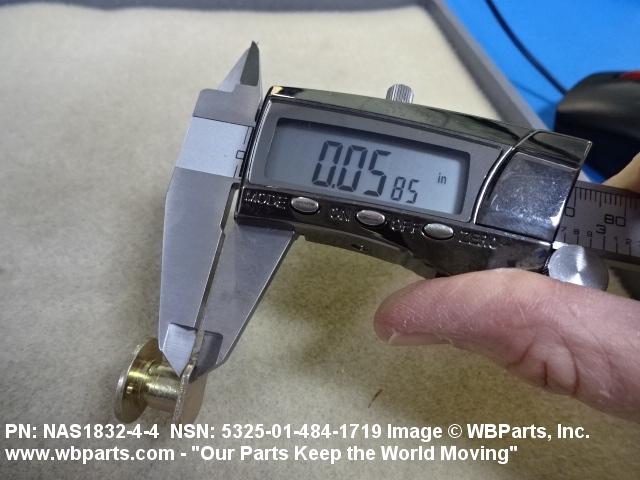

| FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-28 UNJF |
Restrictions/Controls & Freight Information | NSN 5325-01-484-1719
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
