NSN 5325-01-487-4621 M22529/2-6R-25, M2252926R25, BT60025ER0602
Product Details | NONMETALLIC GROMMET
5325-01-487-4621 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: M22529/2-6R-25, M2252926R25, BT60025ER0602, BT6-0025-ER0602, 5325-01-487-4621, 01-487-4621, 5325014874621, 014874621
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 2001 | 01-487-4621 | 06314 ( GROMMET, METALLIC ) |

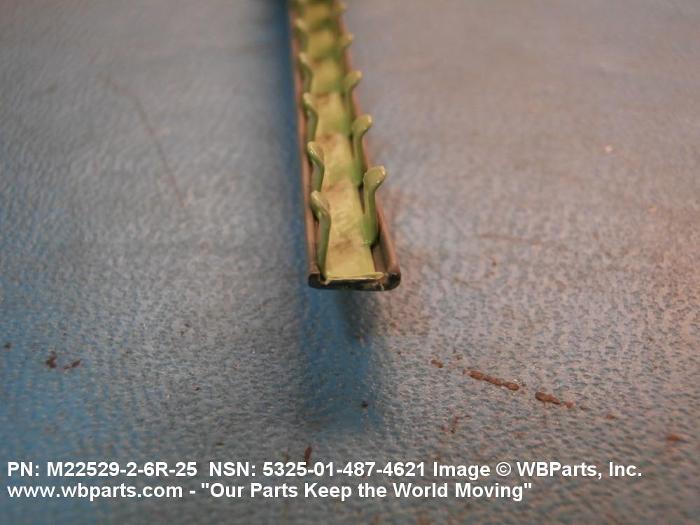

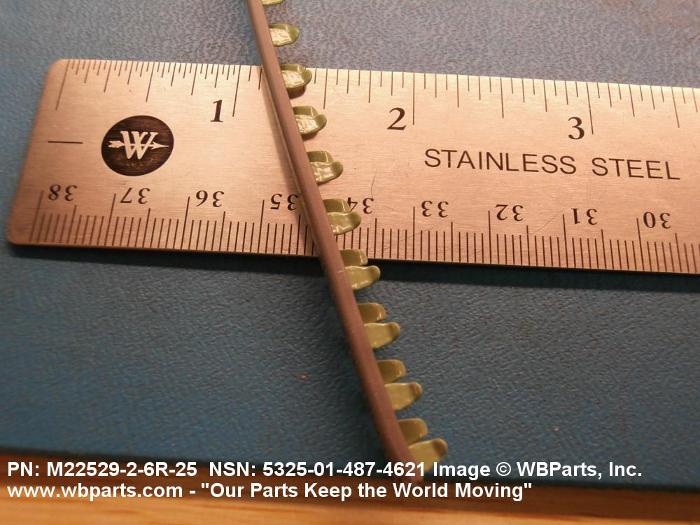

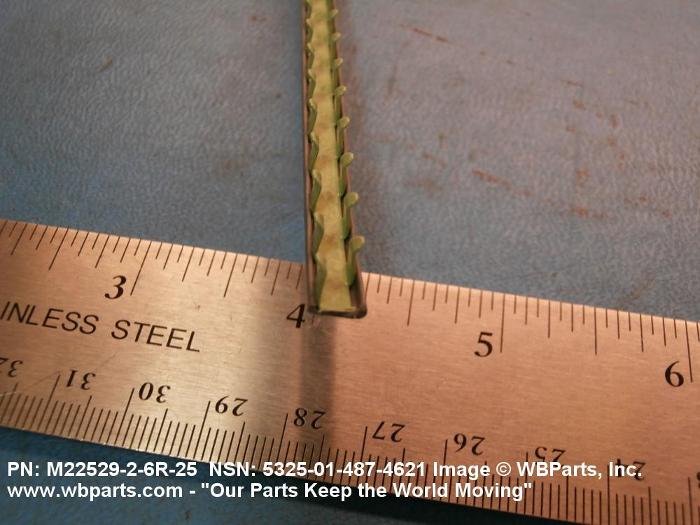

Drawings & Photos | NSN 5325-01-487-4621
Demand History | NSN 5325-01-487-4621
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-487-4621 | 2023-05-136 | 2 | DIBBS |
| 5325-01-487-4621 | 2023-04-101 | 2 | DIBBS |
| 5325-01-487-4621 | 2022-11-306 | 4 | DIBBS |
| 5325-01-487-4621 | 2022-11-306 | 6 | DIBBS |
| 5325-01-487-4621 | 2022-04-117 | 4 | DIBBS |
| 5325-01-487-4621 | 2022-04-117 | 6 | DIBBS |
| 5325-01-487-4621 | 2022-02-58 | 1 | DIBBS |
| 5325-01-487-4621 | 2021-09-256 | 4 | DIBBS |
| M2252926R25 | 2021-08-243 | 4 | United States |
| 5325-01-487-4621 | 2021-06-174 | 5 | DIBBS |
| 5325-01-487-4621 | 2021-02-47 | 1 | DIBBS |
| 5325-01-487-4621 | 2020-09-272 | 11 | DIBBS |
| 5325-01-487-4621 | 2020-09-259 | 11 | DIBBS |
| 5325-01-487-4621 | 2020-09-252 | 5 | DIBBS |
| 5325-01-487-4621 | 2020-08-239 | 5 | DIBBS |
| 5325-01-487-4621 | 2020-08-218 | 20 | DIBBS |
| 5325-01-487-4621 | 2020-07-195 | 10 | DIBBS |
| 5325-01-487-4621 | 2020-06-182 | 1 | DIBBS |
| 5325-01-487-4621 | 2020-06-175 | 10 | DIBBS |
| 5325-01-487-4621 | 2020-05-148 | 1 | DIBBS |
| 5325-01-487-4621 | 2020-03-76 | 1 | DIBBS |
| 5325-01-487-4621 | 2020-01-13 | 1 | DIBBS |
| 5325-01-487-4621 | 2019-12-345 | 1 | DIBBS |
| 5325-01-487-4621 | 2019-01-29 | 3 | DIBBS |
| 5325-01-487-4621 | 2019-01-22 | 1 | DIBBS |
| 5325-01-487-4621 | 2018-11-317 | 3 | DIBBS |
| 5325-01-487-4621 | 2018-08-214 | 10 | DIBBS |
| 5325-01-487-4621 | 2018-06-178 | 1 | DIBBS |
| 5325-01-487-4621 | 2017-12-346 | 4 | DIBBS |
| 5325-01-487-4621 | 2017-11-324 | 4 | DIBBS |
| 5325-01-487-4621 | 2017-10-290 | 4 | DIBBS |
| 5325-01-487-4621 | 2017-08-213 | 2 | DIBBS |
| 5325-01-487-4621 | 2014-11-321 | 7 | DIBBS |
| 5325-01-487-4621 | 2014-11-308 | 7 | DIBBS |
| 5325-01-487-4621 | 2014-09-268 | 1 | DIBBS |
| 5325-01-487-4621 | 2013-10-276 | 1 | DIBBS |
| 5325-01-487-4621 | 2013-09-261 | 1 | DIBBS |
| 5325-01-487-4621 | 2013-09-245 | 50 | DIBBS |
| M2252926R25 | 2013-07-192 | 150 | United States |
| 5325-01-487-4621 | 2012-10-281 | 4 | DIBBS |
| M2252926R25 | 2010-12-351 | 27 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-487-4621
Related Products | NSN 5325-01-487-4621
Technical Data | NSN 5325-01-487-4621
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 METALLIC PARTS |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5517 ASSN STD 1ST MATERIAL RESPONSE OR AMS5903 ASSN STD 2ND MATERIAL RESPONSE OR AMS5907 ASSN STD 3RD MATERIAL RESPONSE OR AMS5310 ASSN STD 4TH MATERIAL RESPONSE METALLIC PARTS |
| COLOR | GREEN OVERALL |
| GROMMET STYLE | 60 EDGING |
| GROOVE DEPTH | 0.180 INCHES NOMINAL |
| GROOVE WIDTH | 0.320 INCHES NOMINAL |
| OVERALL HEIGHT | 0.445 INCHES NOMINAL |
| OVERALL WIDTH | 0.255 INCHES NOMINAL |
| TAB WIDTH | 0.067 INCHES NOMINAL |
| WIDTH BETWEEN TABS | 0.067 INCHES NOMINAL |
| GROMMET OVERALL LENGTH | 300.000 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| SPECIAL FEATURES | SHEET THICKNESS 0.105/0.134 IN; REEL LENGTH 25.0 FT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22529/2-6R-25 |
Restrictions/Controls & Freight Information | NSN 5325-01-487-4621
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-487-4621
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
