NSN 5325-01-493-8653 AC20C130/39, AC20C13039, 85-11-480-20
Product Details | TURNLOCK FASTENER STUD
5325-01-493-8653 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: AC20C130/39, AC20C13039, 85-11-480-20, 5325-01-493-8653, 01-493-8653, 5325014938653, 851148020, 014938653
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JAN 2002 | 01-493-8653 | 18421 ( STUD, TURNLOCK FASTENER ) |

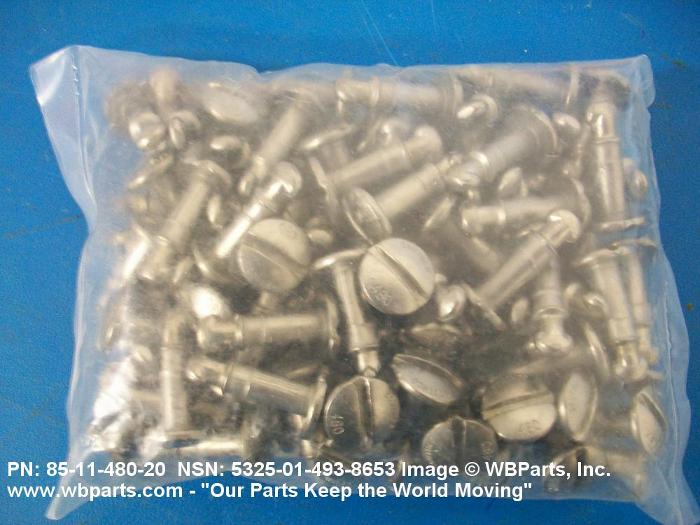

Drawings & Photos | NSN 5325-01-493-8653
Demand History | NSN 5325-01-493-8653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 851148020 | 2011-07-194 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-493-8653
Technical Data | NSN 5325-01-493-8653
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CHROMATE AND ZINC OVERALL |
| TURNLOCK STUD SHANK STYLE | 8 STUD SHANK |
| STUD SHANK MAJOR DIAMETER | 0.290 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.562 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.470 INCHES MINIMUM AND 0.489 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | HOWITZER, 155MM SELF-PROPELLED, SOUTHCO INC |
Restrictions/Controls & Freight Information | NSN 5325-01-493-8653
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
