NSN 5325-01-501-6710 M22529/2-4C-85, M2252924C85, 01-501-6710
Product Details | NONMETALLIC GROMMET
5325-01-501-6710 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: M22529/2-4C-85, M2252924C85, 5325-01-501-6710, 01-501-6710, 5325015016710, 015016710
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 OCT 2002 | 01-501-6710 | 33729 ( GROMMET, NONMETALLIC ) |

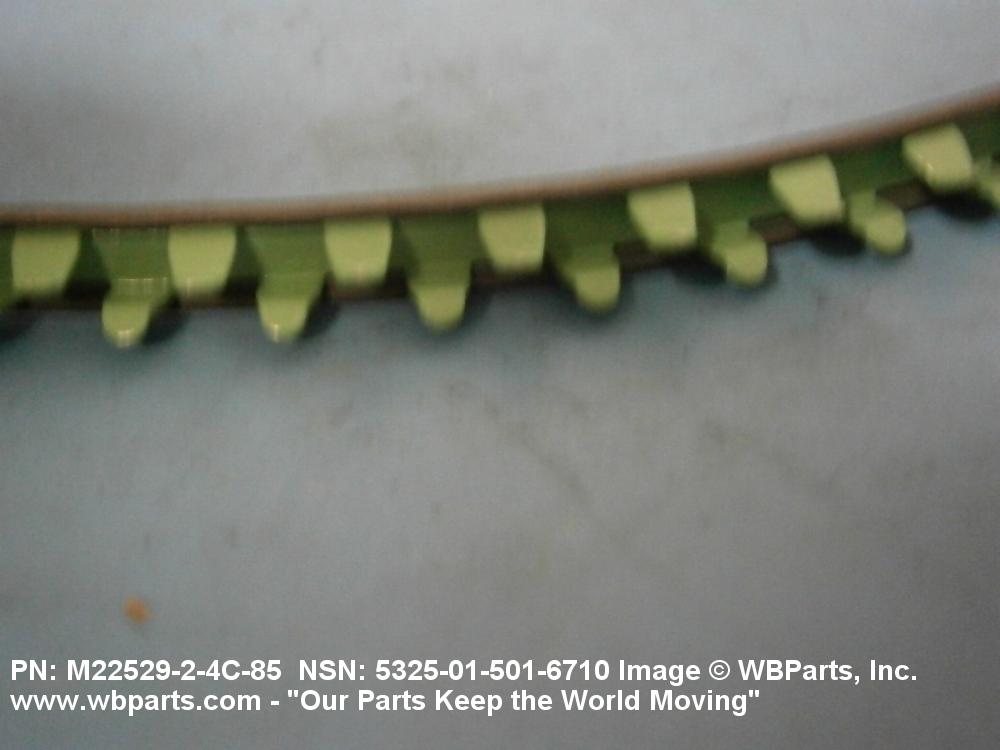

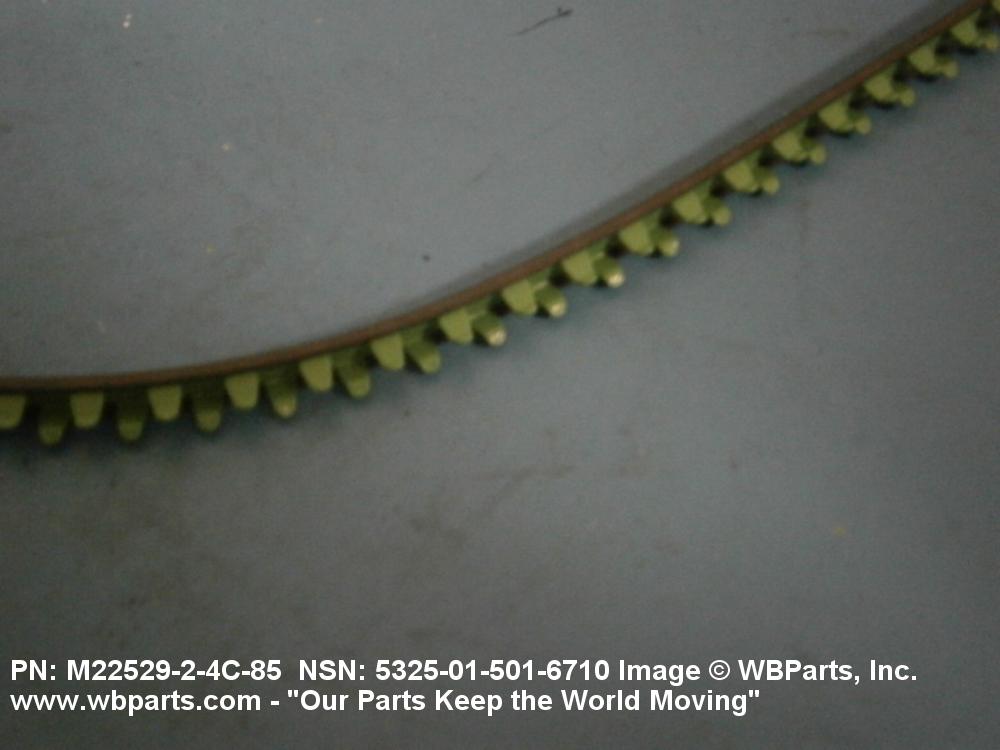

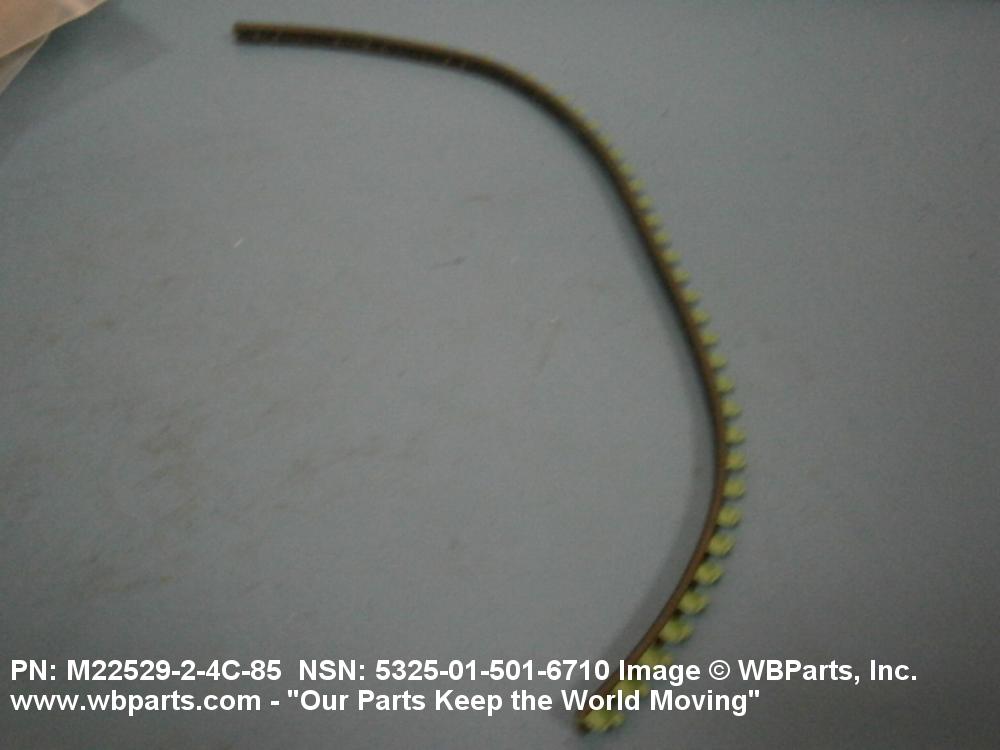

Drawings & Photos | NSN 5325-01-501-6710
Demand History | NSN 5325-01-501-6710
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-501-6710 | 2019-02-34 | 107 | DIBBS |
| 5325-01-501-6710 | 2018-05-128 | 87 | DIBBS |
| 5325-01-501-6710 | 2017-04-103 | 30 | US |
| M2252924C85 | 2016-11-312 | 2 | United States |
| 5325-01-501-6710 | 2011-10-285 | 12 | United States |
Cross Reference | NSN 5325-01-501-6710
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M22529/2-4C-85 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
