NSN 5325-01-502-7769 AS3217189, AS3217-189, 01-502-7769
Product Details | RETAINING RING
5325-01-502-7769 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: AS3217189, AS3217-189, 5325-01-502-7769, 01-502-7769, 5325015027769, 015027769
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 NOV 2002 | 01-502-7769 | 07623 ( RING, RETAINING ) |

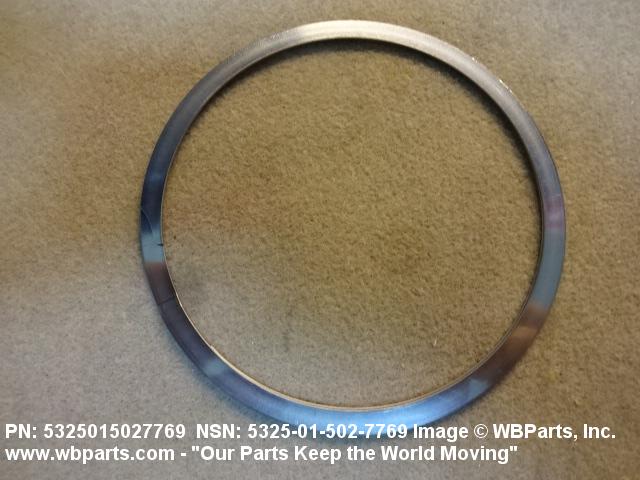

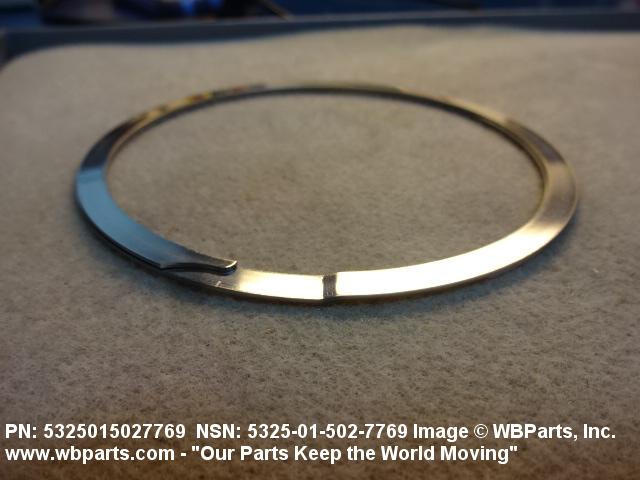

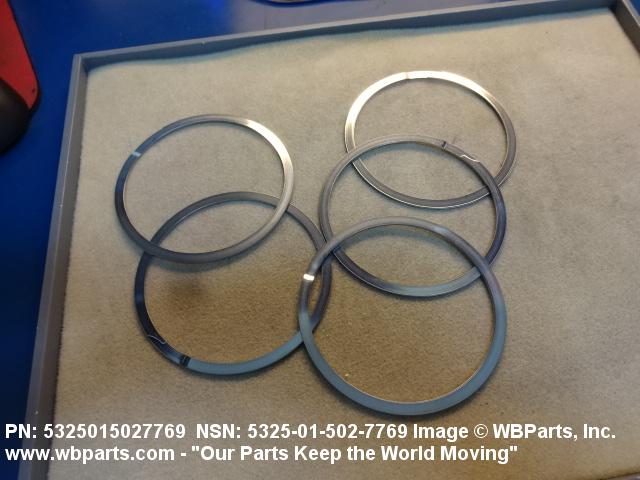

Drawings & Photos | NSN 5325-01-502-7769
Demand History | NSN 5325-01-502-7769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-502-7769 | 2018-10-281 | 5 | United States |
| 5325-01-502-7769 | 2018-10-277 | 5 | US |
| AS3217189 | 2018-10-276 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-502-7769
Technical Data | NSN 5325-01-502-7769
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 7330 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A55 SPECIAL FLAT |

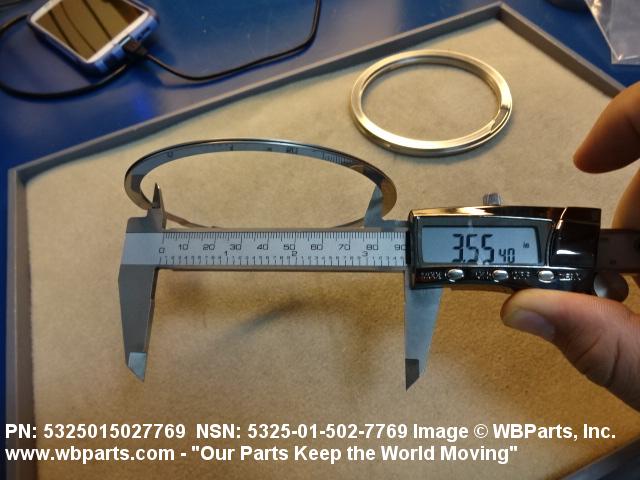

| INSIDE DIAMETER | 3.559 INCHES MINIMUM AND 3.569 INCHES MAXIMUM |

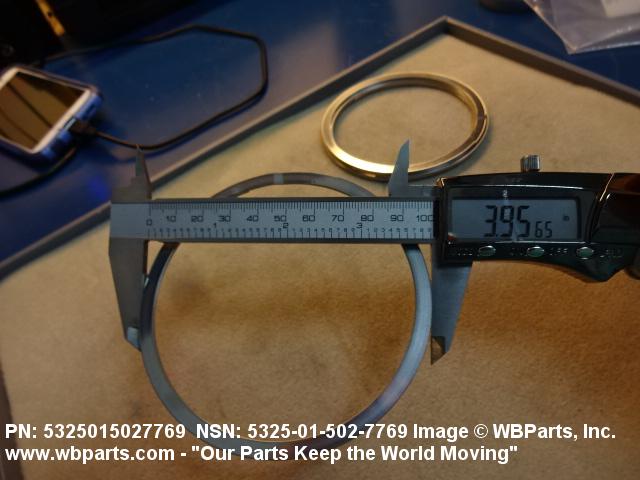

| OUTSIDE DIAMETER | 3.963 INCHES MINIMUM AND 3.993 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D12 DOUBLE OVAL |

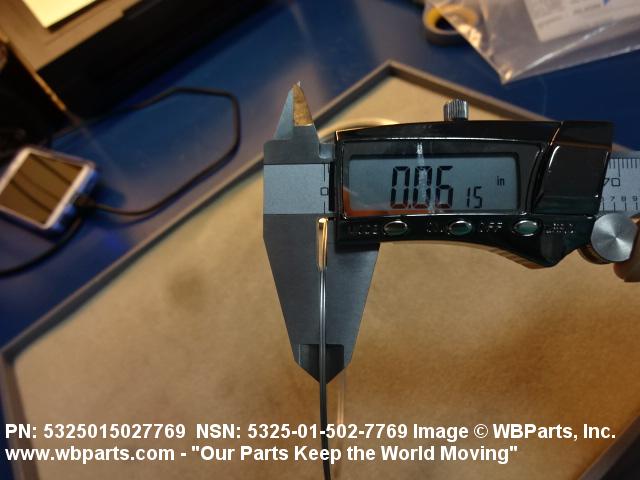

| MAJOR THICKNESS | 0.058 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
| III END ITEM IDENTIFICATION | AE2100A, C, AE2100D2, D3 J, AE1107 AND T406-AD-400 ENGINES |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RING, RETAINING-SPIRAL |
Restrictions/Controls & Freight Information | NSN 5325-01-502-7769
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
