NSN 5325-01-505-3104 PVS3544SEB, PVS35-44-SEB, 3522S44EEB
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-01-505-3104 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: PVS3544SEB, PVS35-44-SEB, 3522S44EEB, 3522-S44-EEB, 5325-01-505-3104, 01-505-3104, 5325015053104, 015053104
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAR 2003 | 01-505-3104 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

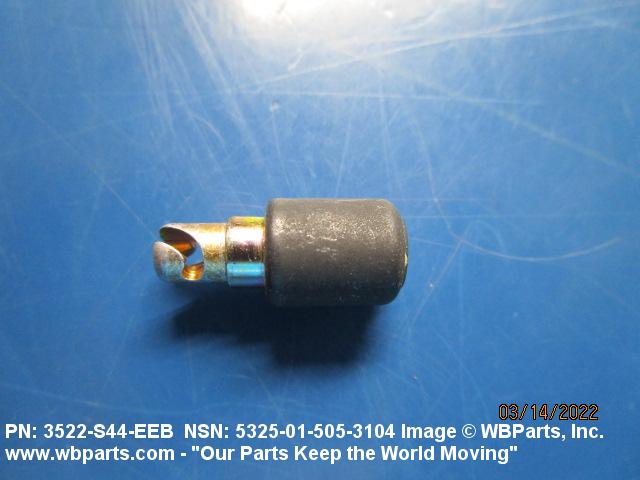

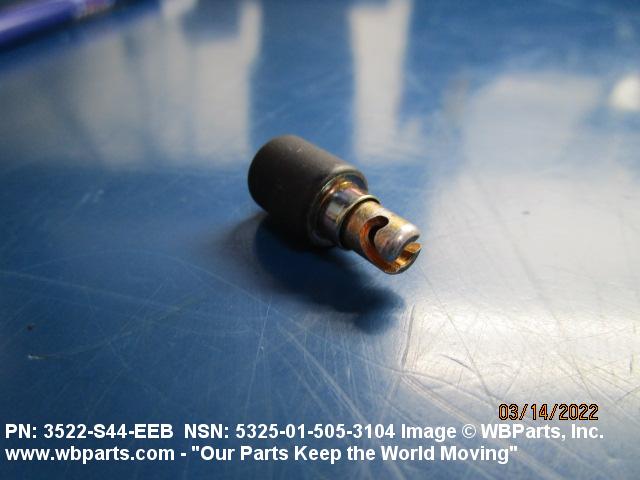

Drawings & Photos | NSN 5325-01-505-3104
Demand History | NSN 5325-01-505-3104
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-01-505-3104 | 2022-03-60 | 170 | United States |
| 3522S44EEB | 2012-03-90 | 4 | United States |
| 5325-01-505-3104 | 2010-08-239 | 120 | DIBBS |
| 5325-01-505-3104 | 2010-07-209 | 16 | DIBBS |
| 5325-01-505-3104 | 2010-05-124 | 43 | DIBBS |
| 5325-01-505-3104 | 2010-03-86 | 12 | DIBBS |
| 5325-01-505-3104 | 2010-02-51 | 40 | DIBBS |
| 5325-01-505-3104 | 2009-11-325 | 16 | DIBBS |
| 5325-01-505-3104 | 2009-10-281 | 30 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-505-3104
Related Products | NSN 5325-01-505-3104
Technical Data | NSN 5325-01-505-3104
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1118 OVERALL |
| SURFACE TREATMENT | CADMIUM AND PRIMER AND ENAMEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |

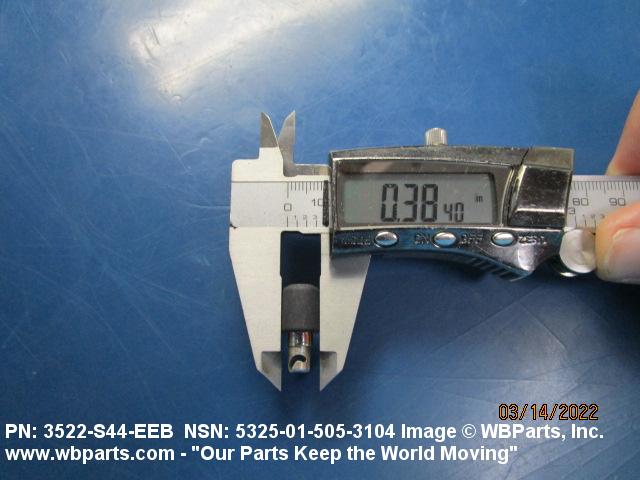

| DIAMETER | 0.373 INCHES MINIMUM AND 0.383 INCHES MAXIMUM |

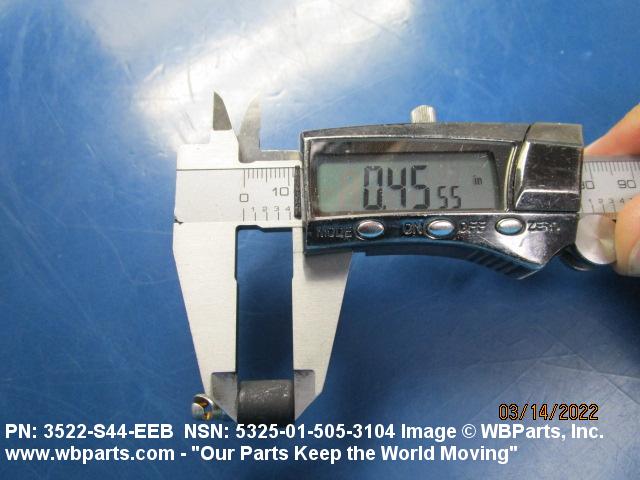

| STUD HEAD HEIGHT | 0.450 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 20 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.610 INCHES NOMINAL |

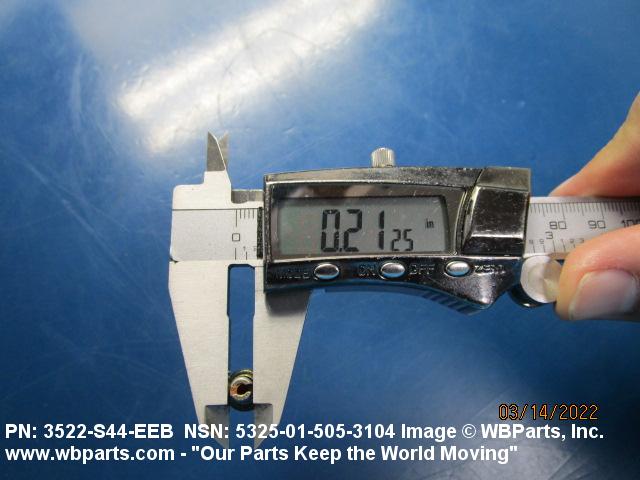

| EYELET OUTSIDE DIAMETER | 0.212 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |

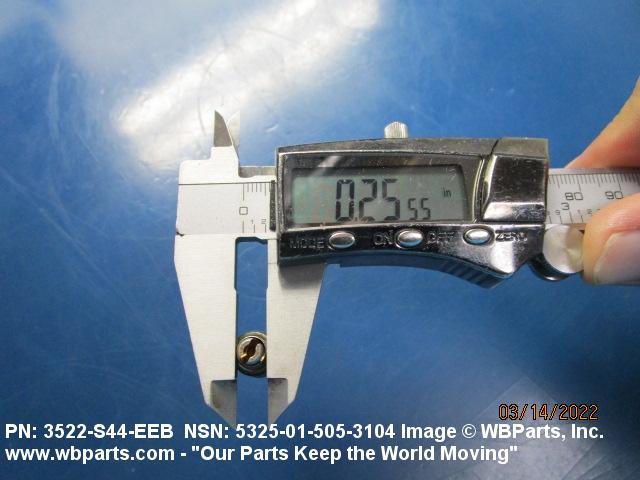

| STUD DIAMETER | 0.253 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| EYELET LENGTH | 0.010 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.120 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| SPECIAL FEATURES | BLACK EPOXY PRIMER .0006" MIN. AND DULL BLACK EPOXY ENAMEL .0003" MIN. |
| III END ITEM IDENTIFICATION | AN/ALQ172 LRU |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FASTENER, STUD ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5325-01-505-3104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-505-3104
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
