NSN 5325-01-528-9916 CA3580361, CA358036-1, 1230041

Product Details | PANEL FASTENER INSERT

5325-01-528-9916 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Part Alternates: CA3580361, CA358036-1, 1230041, 123004-1, 501161, 50-116-1, 5325-01-528-9916, 01-528-9916, 5325015289916, 015289916

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 MAR 2005	01-528-9916	37444 ( INSERT, PANEL FASTENER )

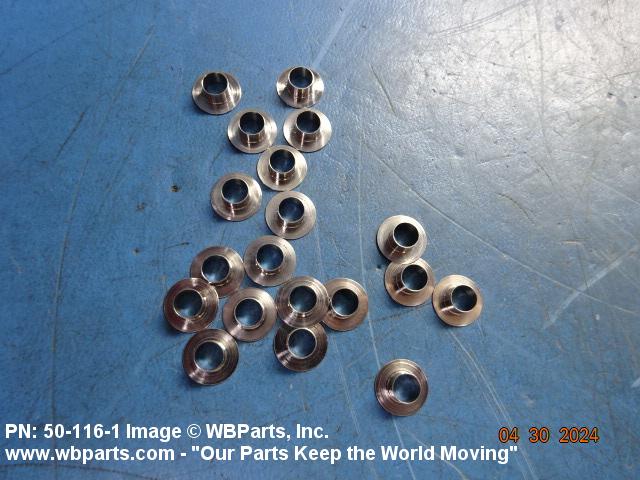

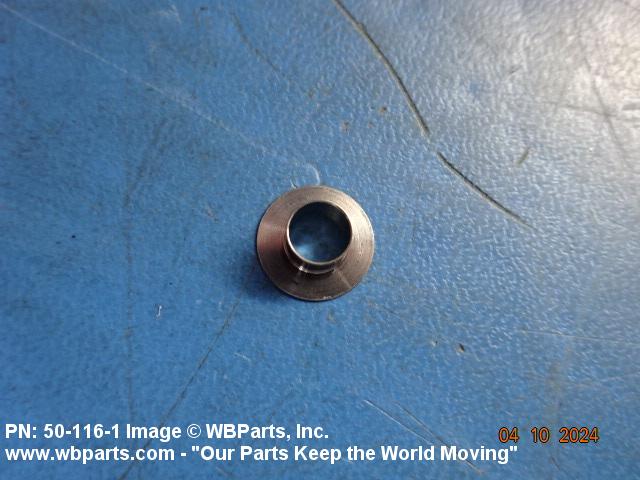

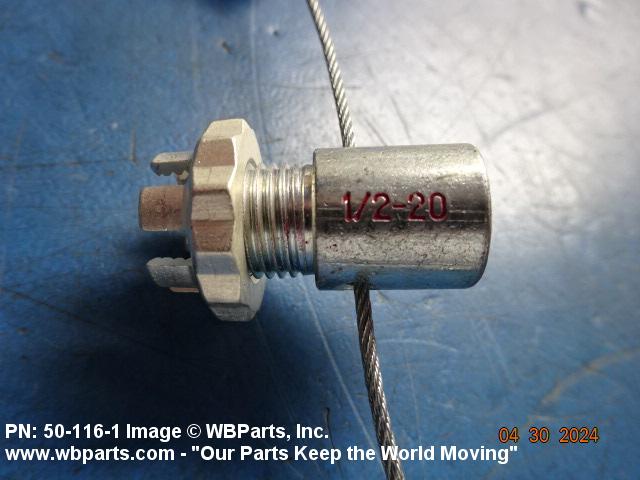

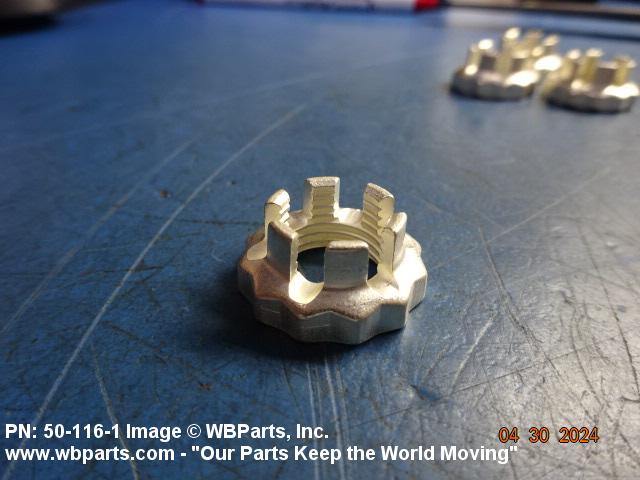

Drawings & Photos | NSN 5325-01-528-9916

Part Number	Request Date	QTY	Origin
501161	2025-07-196	640	United States
501161	2024-03-87	2750	United States
5325-01-528-9916	2019-04-100	1	DIBBS-RFPs
123004-1	2019-01-30	3620	DIBBS
50-116-1	2019-01-30	3620	DIBBS
CA358036-1	2019-01-30	3620	DIBBS
5325-01-528-9916	2018-09-268	2088	DIBBS
5325-01-528-9916	2014-08-215	3060	DIBBS
5325-01-528-9916	2014-03-79	1692	DIBBS
5325-01-528-9916	2014-01-05	679	DIBBS
5325-01-528-9916	2013-10-288	533	DIBBS
5325-01-528-9916	2013-07-197	524	DIBBS
5325-01-528-9916	2013-03-78	633	DIBBS
5325-01-528-9916	2013-02-50	794	DIBBS
5325-01-528-9916	2012-10-277	274	DIBBS
5325-01-528-9916	2012-07-207	98	DIBBS
5325-01-528-9916	2012-06-164	255	DIBBS
5325-01-528-9916	2012-05-143	157	DIBBS
5325-01-528-9916	2012-04-107	79	DIBBS
5325-01-528-9916	2012-03-89	803	DIBBS
5325-01-528-9916	2012-02-60	332	DIBBS
5325-01-528-9916	2011-12-362	457	DIBBS
5325-01-528-9916	2011-12-341	1125	DIBBS
5325-01-528-9916	2011-11-326	376	DIBBS
5325-01-528-9916	2011-06-155	558	DIBBS
5325-01-528-9916	2011-04-103	121	DIBBS
5325-01-528-9916	2011-01-13	1121	DIBBS
5325-01-528-9916	2010-11-333	100	US

Cross Reference | NSN 5325-01-528-9916

Part Number	Cage Code	Manufacturer
123004-1	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
50-116-1	97499	BELL HELICOPTER TEXTRON INC.
CA358036-1	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-528-9916

Compare

Related Products | NSN 5325-01-528-9916

5325-01-528-9917, 5325-01-529-0323, 5325-01-529-0661, 5325-01-529-0765, 5325-01-529-0839

Technical Data | NSN 5325-01-528-9916

Characteristic	Specifications
MATERIAL	STEEL COMP 304 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
INSERT STYLE	4 PROTRUDING FLANGE

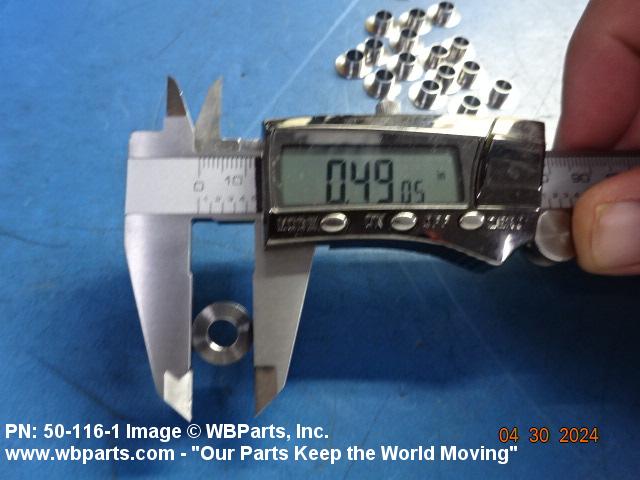

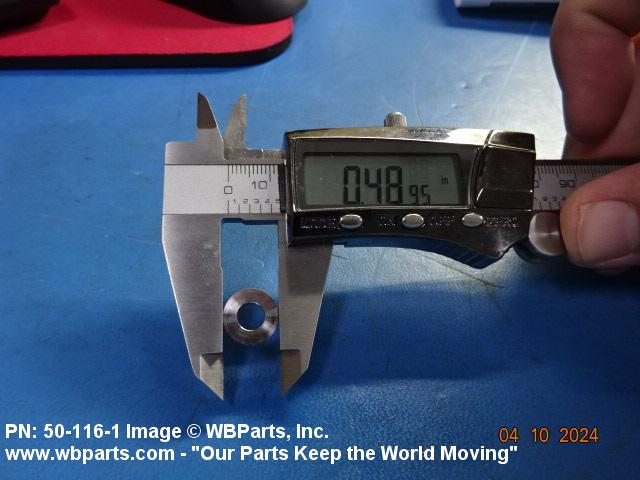

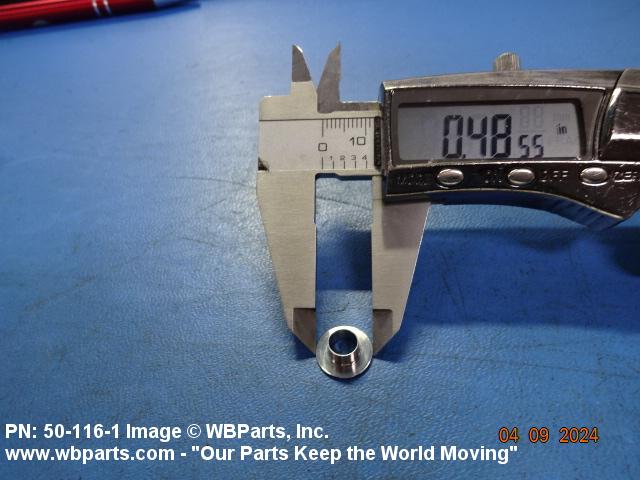

FLANGE DIAMETER	0.485 INCHES MINIMUM AND 0.495 INCHES MAXIMUM

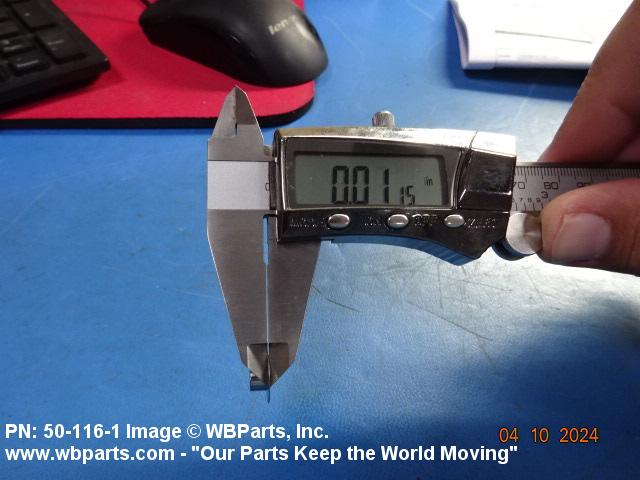

FLANGE THICKNESS	0.008 INCHES MINIMUM AND 0.012 INCHES MAXIMUM

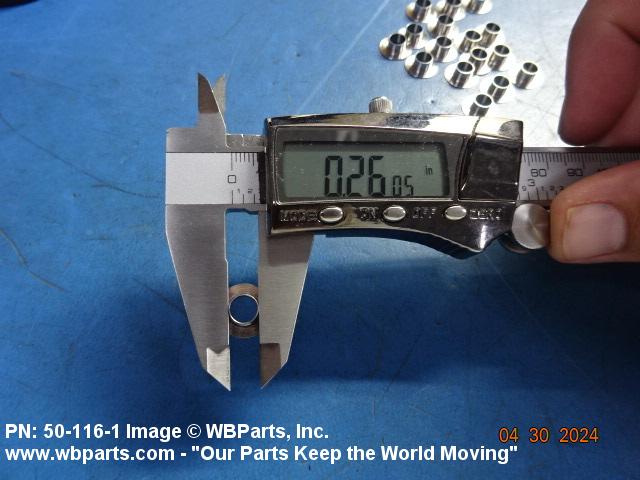

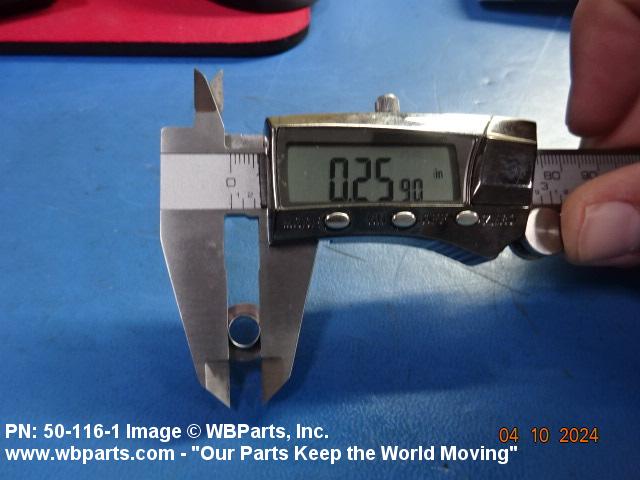

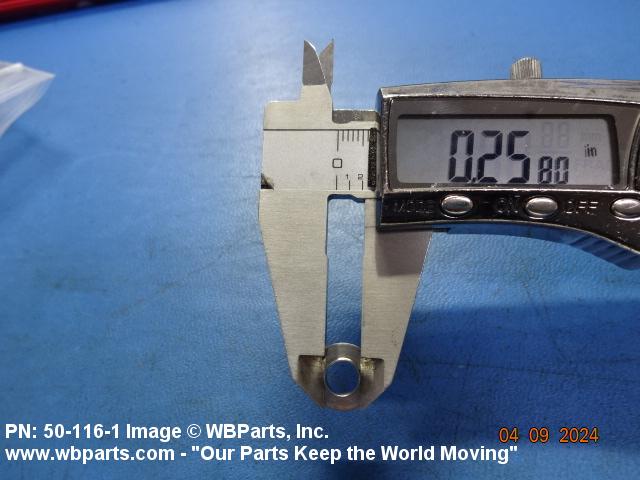

BODY DIAMETER	0.257 INCHES MINIMUM AND 0.261 INCHES MAXIMUM
HOLE TYPE	PLAIN

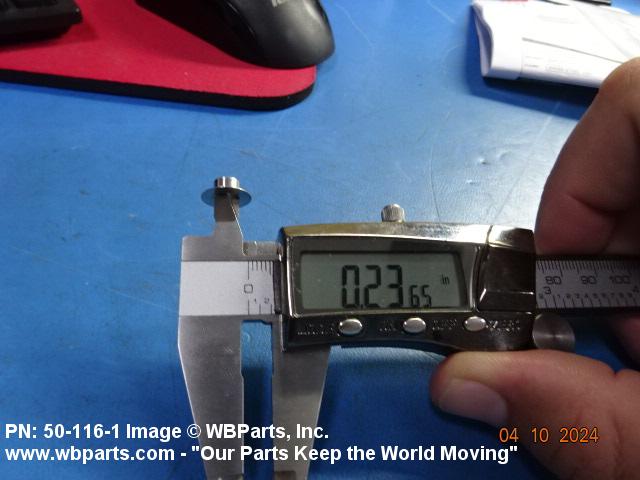

HOLE DIAMETER	0.237 INCHES MINIMUM AND 0.240 INCHES MAXIMUM

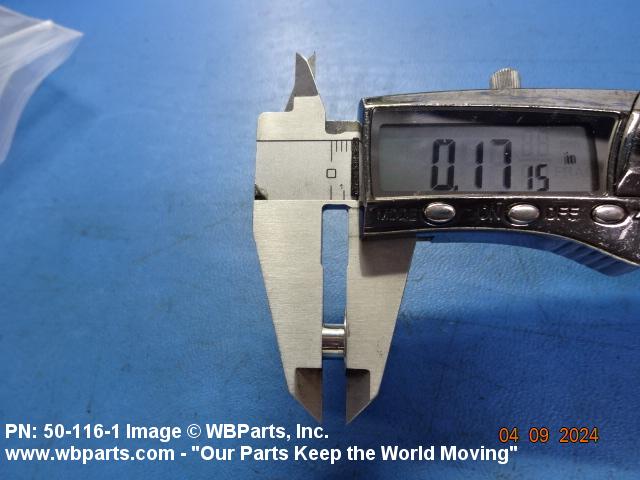

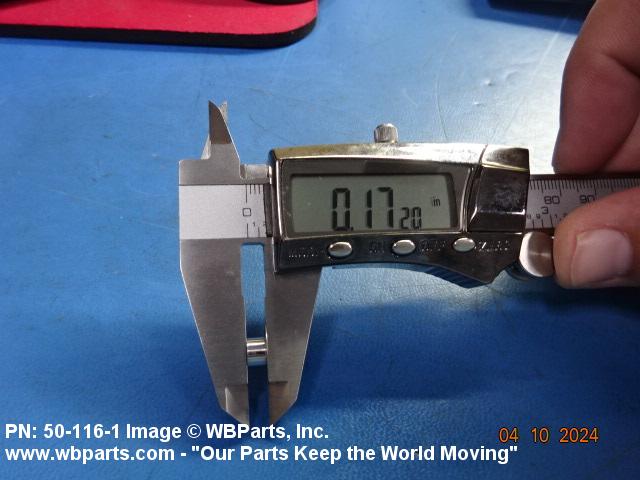

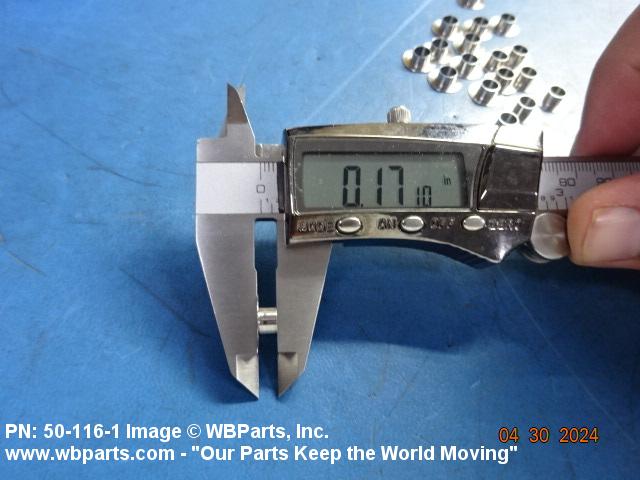

SPECIAL FEATURES	LENGTH IS .155 TO .165 INCHES; GRIP RANGE .061 TO .090 INCHES
III END ITEM IDENTIFICATION	PANEL INSTL; COVER INSTL; FAIRING INSTL; V-22 AIRCRAFT
III PART NAME ASSIGNED BY CONTROLLING AGENCY	GROMMET,METALLIC
