NSN 5325-01-550-3945 40S11973BB, 40S119-7-3BB, 01-550-3945
Product Details | TURNLOCK FASTENER ASSEMBLY
5325-01-550-3945 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.
Part Alternates: 40S11973BB, 40S119-7-3BB, 5325-01-550-3945, 01-550-3945, 5325015503945, 015503945
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 APR 2007 | 01-550-3945 | 61968 ( FASTENER ASSEMBLY, TURNLOCK ) |
Drawings & Photos | NSN 5325-01-550-3945
Demand History | NSN 5325-01-550-3945
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 40S119-7-3BB | 2013-08-229 | 188 | Canada |
Cross Reference | NSN 5325-01-550-3945
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40S119-7-3BB | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-01-550-3945
Technical Data | NSN 5325-01-550-3945
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL STUD |

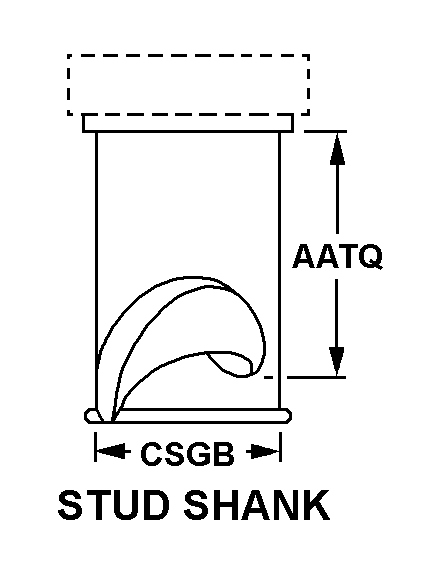

| TURNLOCK STUD SHANK STYLE | 19 STUD SHANK |
| STUD SHANK MAJOR DIAMETER | 0.412 INCHES MINIMUM AND 0.427 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 11 FLAT FILLISTER WING |
| HEAD LENGTH | 0.850 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.510 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| SPECIAL FEATURES | TRIWING RECESS HEAD STYLE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | STUD ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5325-01-550-3945
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
