NSN 5325-01-552-0601 NAS18344K500, NAS1834-4K500, 01-552-0601
Product Details | PANEL FASTENER INSERT
5325-01-552-0601 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: NAS18344K500, NAS1834-4K500, 5325-01-552-0601, 01-552-0601, 5325015520601, 015520601
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JUN 2007 | 01-552-0601 | 37444 ( INSERT, PANEL FASTENER ) |

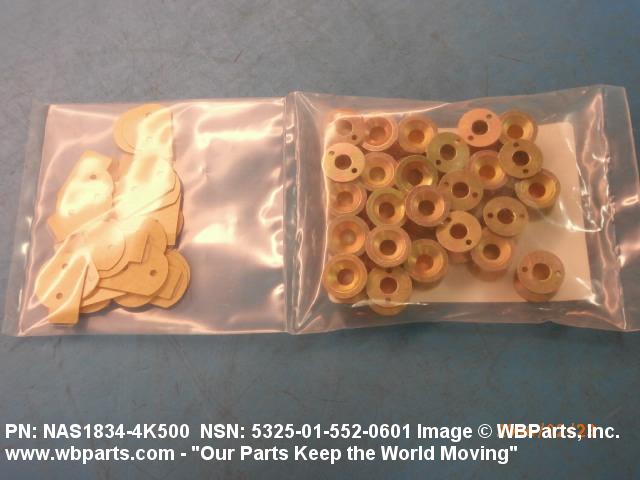

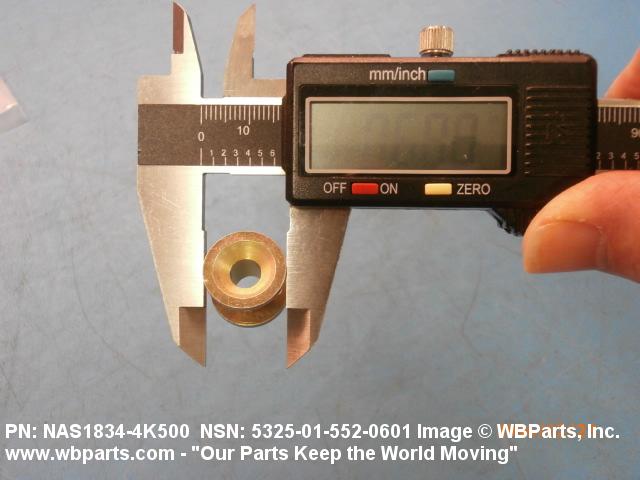

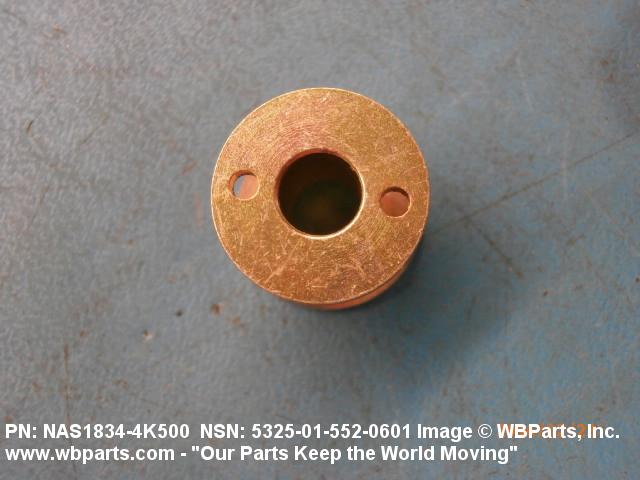

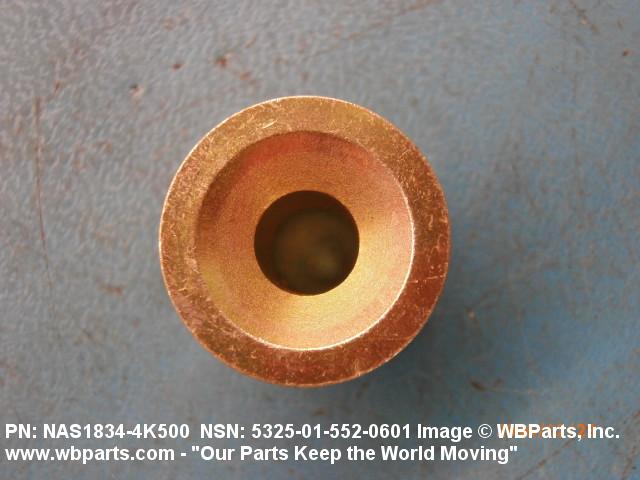

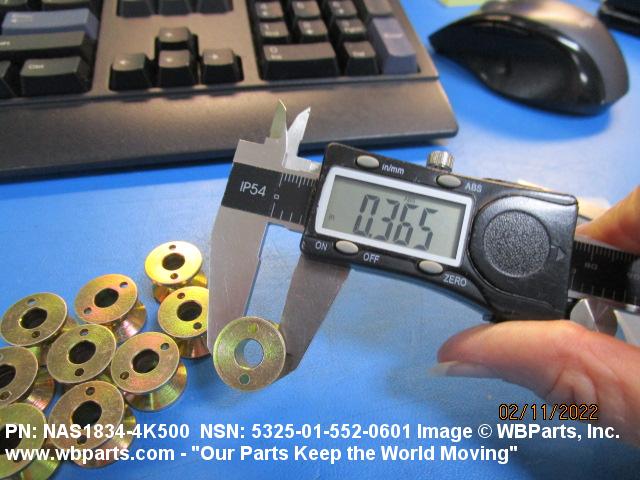

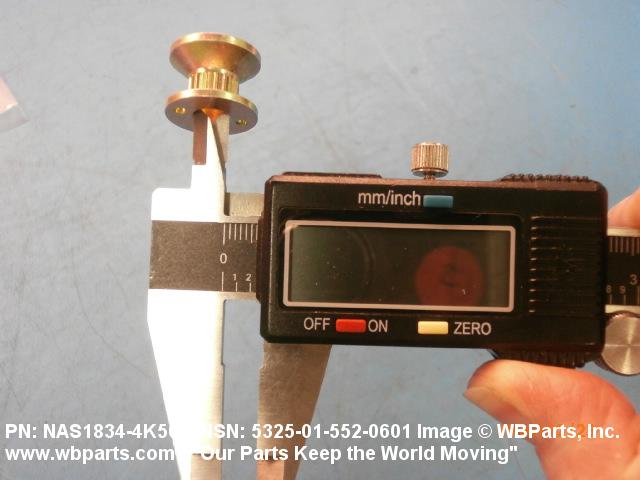

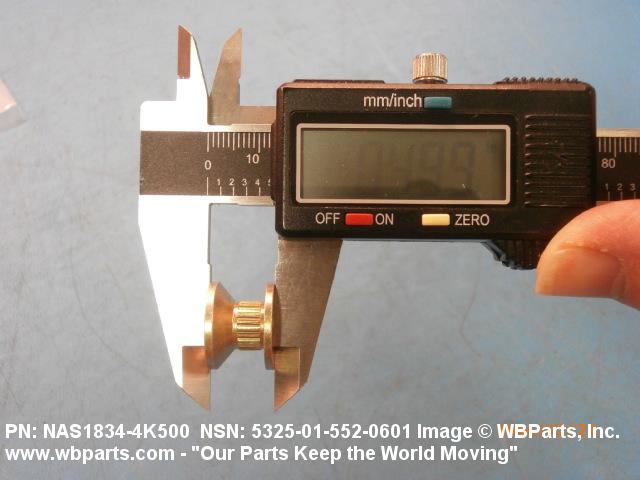

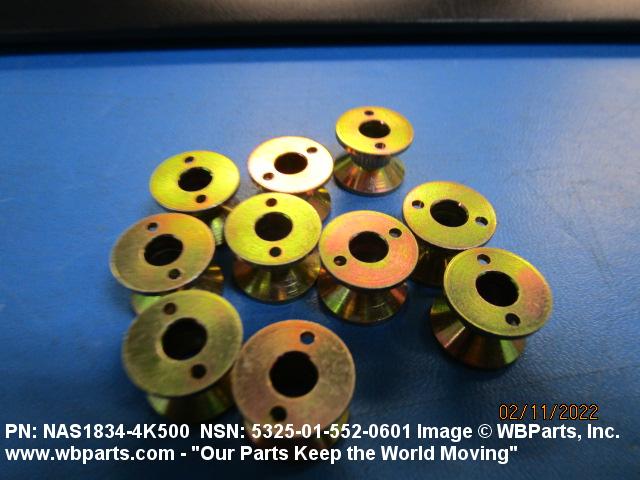

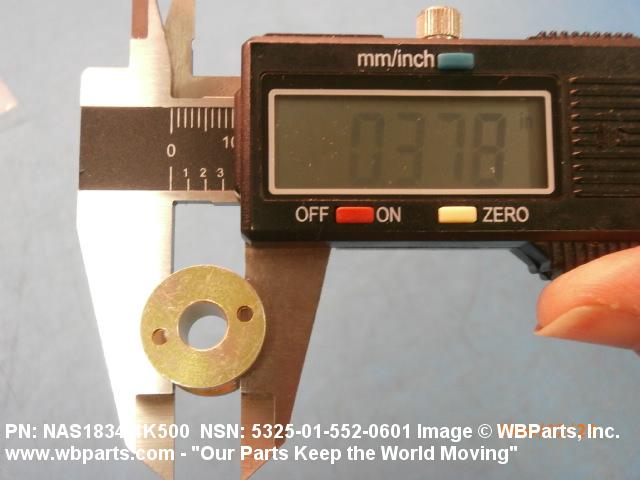

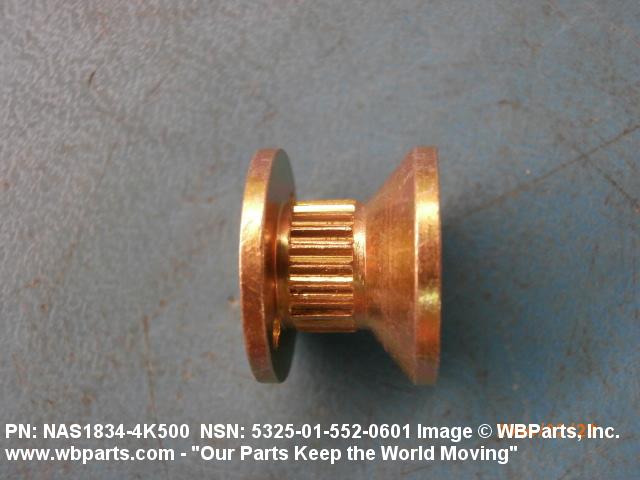

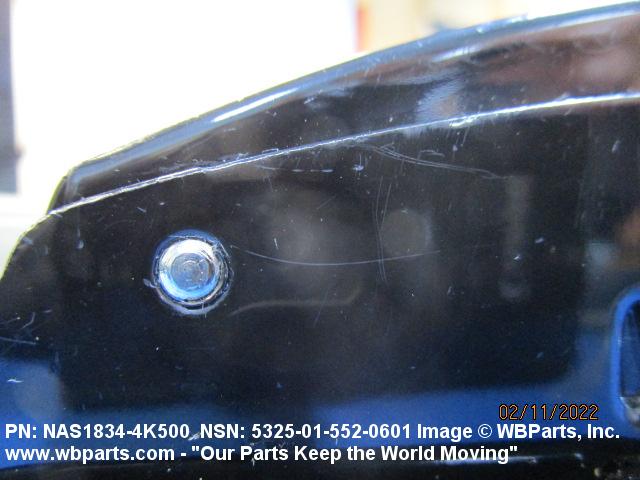

Drawings & Photos | NSN 5325-01-552-0601
Demand History | NSN 5325-01-552-0601
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS18344K500 | 2016-02-50 | 25 | us |
| NAS1834-4K500 | 2014-06-157 | 50 | United States |
| 5325-01-552-0601 | 2010-07-196 | 350 | DIBBS |
| 5325-01-552-0601 | 2010-04-113 | 110 | DIBBS |
| NAS18344K500 | 2010-03-63 | 200 | US |
| 5325-01-552-0601 | 2010-02-55 | 143 | DIBBS |
| 5325-01-552-0601 | 2009-11-321 | 134 | DIBBS |
| 5325-01-552-0601 | 2009-11-321 | 143 | DIBBS |
| 5325-01-552-0601 | 2009-10-294 | 16 | DIBBS |
| 5325-01-552-0601 | 2008-05-149 | 16 | DIBBS |
Cross Reference | NSN 5325-01-552-0601
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1834-4K500 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-552-0601
Related Products | NSN 5325-01-552-0601
Technical Data | NSN 5325-01-552-0601
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| INSERT STYLE | 17 FLUSH FLANGE |
| SHOULDER DIAMETER | 0.370 INCHES NOMINAL |

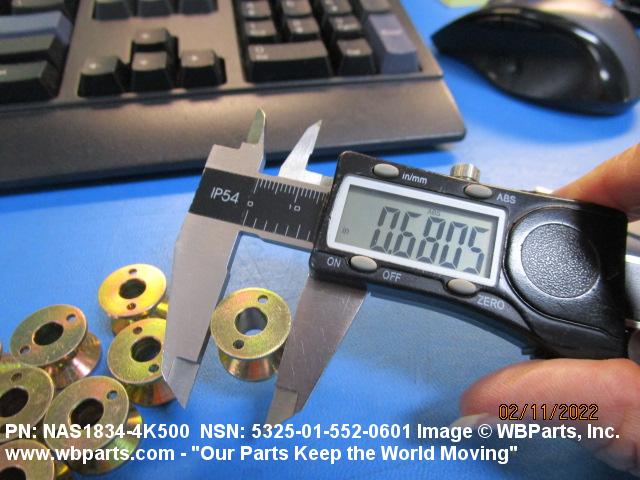

| FLANGE DIAMETER | 0.685 INCHES NOMINAL |

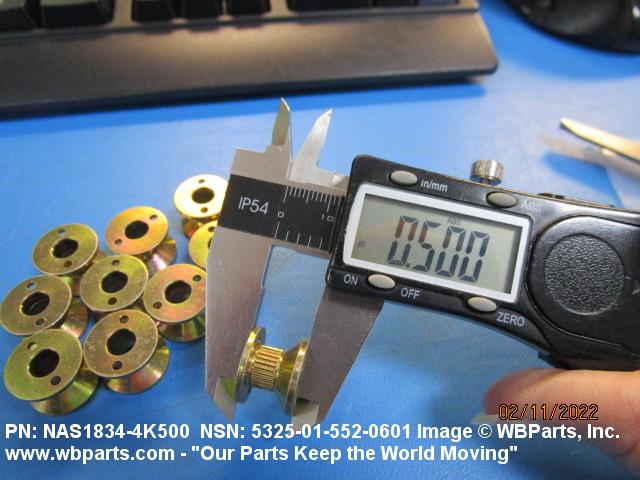

| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| HOLE TYPE | UNTHREADED-COUNTERSUNK |

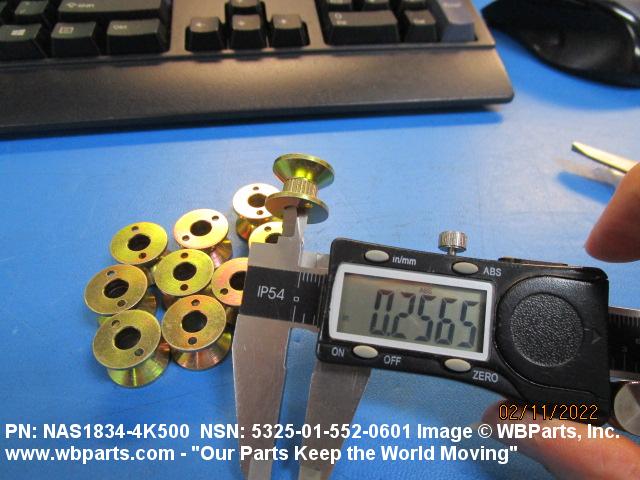

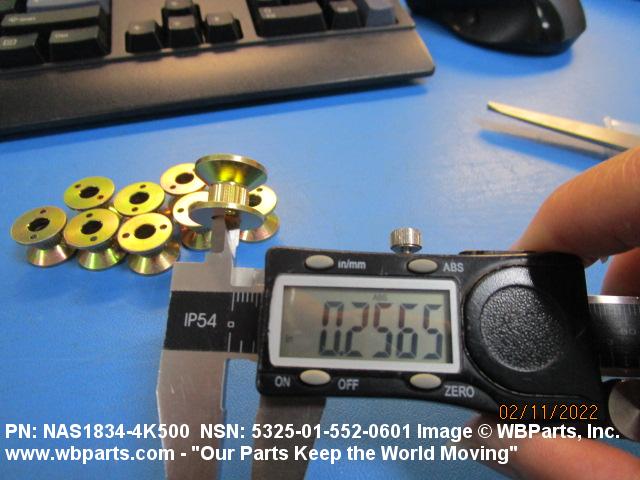

| HOLE DIAMETER | 0.256 INCHES MINIMUM AND 0.263 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 1520-01-035-0226 |
Restrictions/Controls & Freight Information | NSN 5325-01-552-0601
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-552-0601
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
