NSN 5325-01-560-6464 NASM22529/2-3R-100, NASM2252923R100, BT30100ER0201
Product Details | NONMETALLIC GROMMET
5325-01-560-6464 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: NASM22529/2-3R-100, NASM2252923R100, BT30100ER0201, BT3-0100-ER0201, 1350249-01, 5325-01-560-6464, 01-560-6464, 5325015606464, 135024901, 015606464
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 FEB 2008 | 01-560-6464 | 33729 ( GROMMET, NONMETALLIC ) |

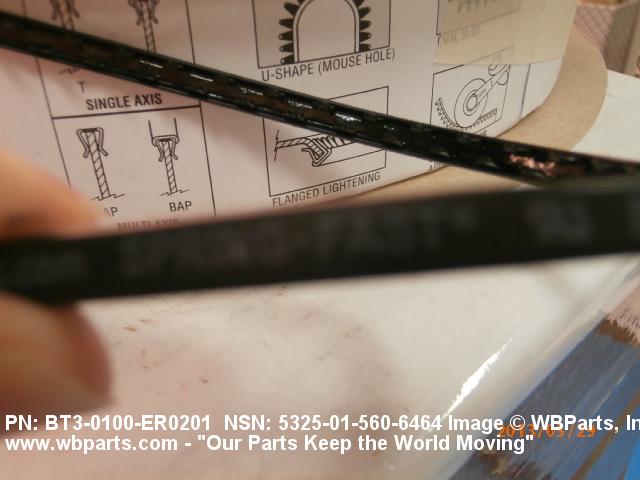

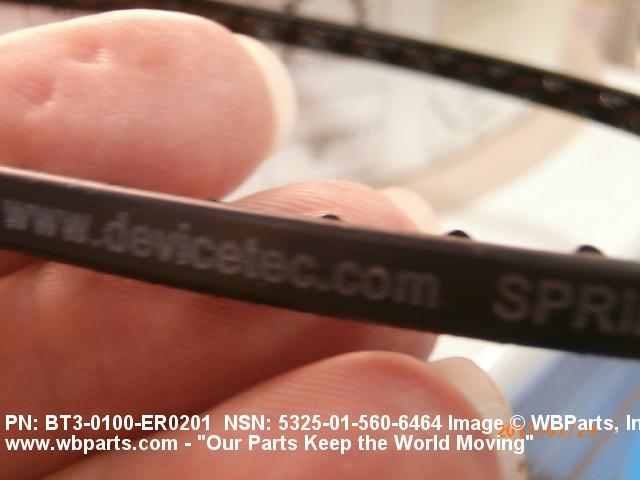

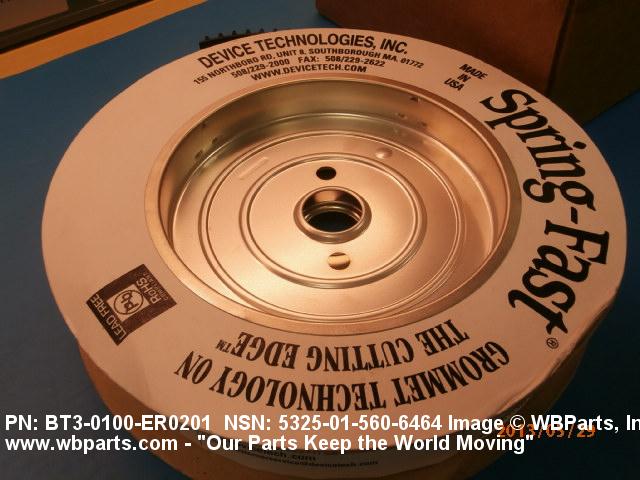

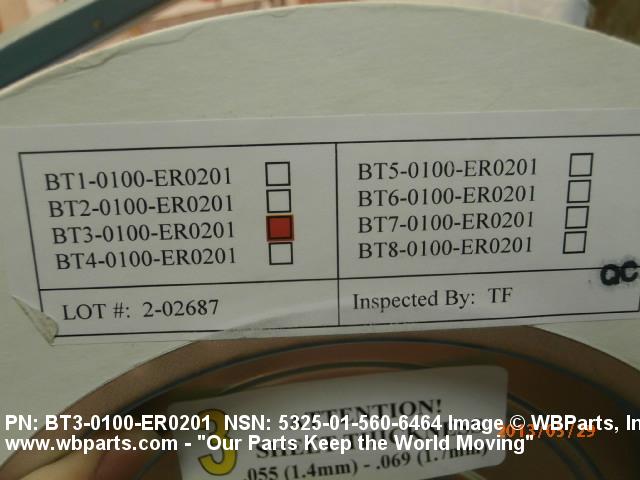

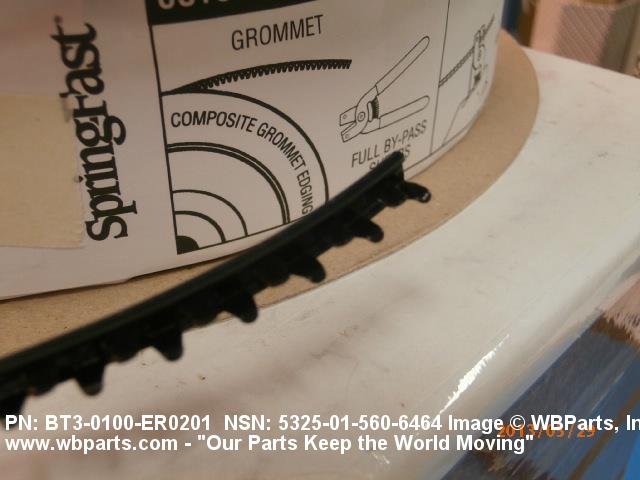

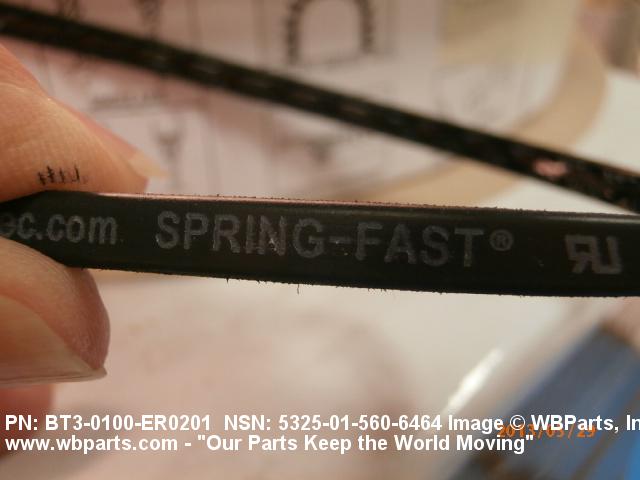

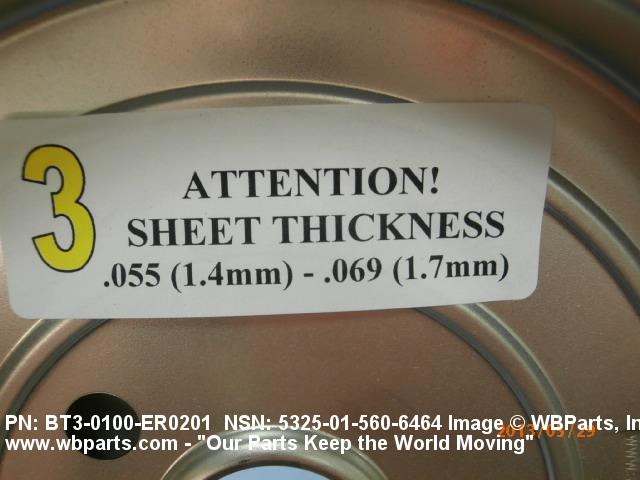

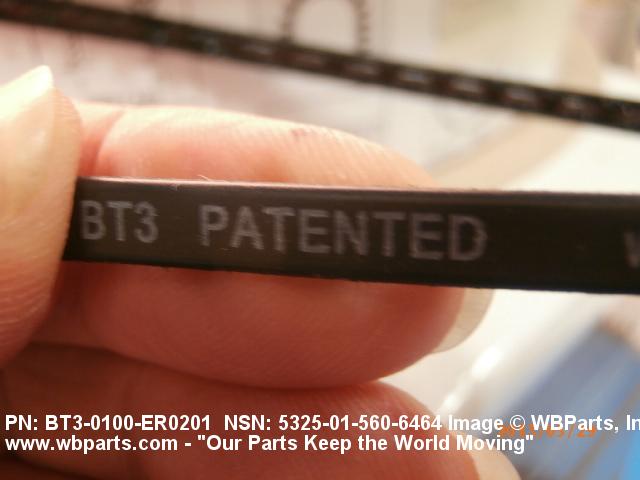

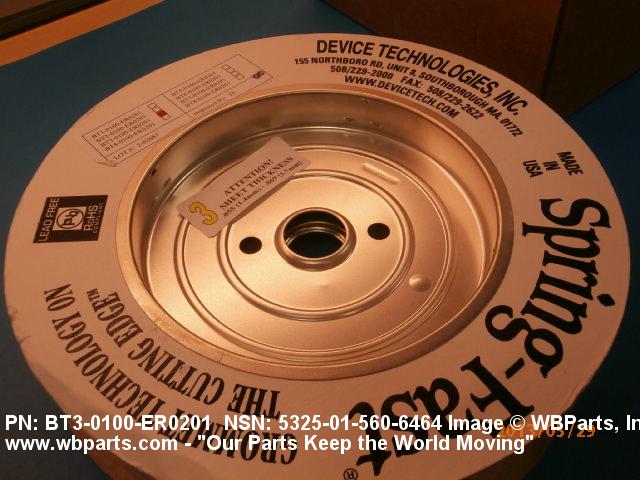

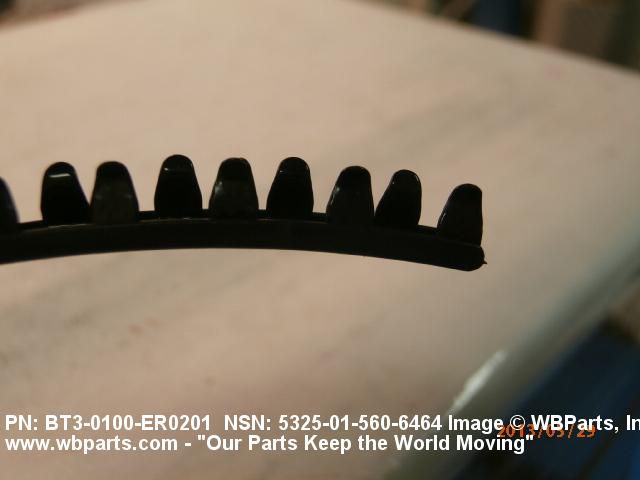

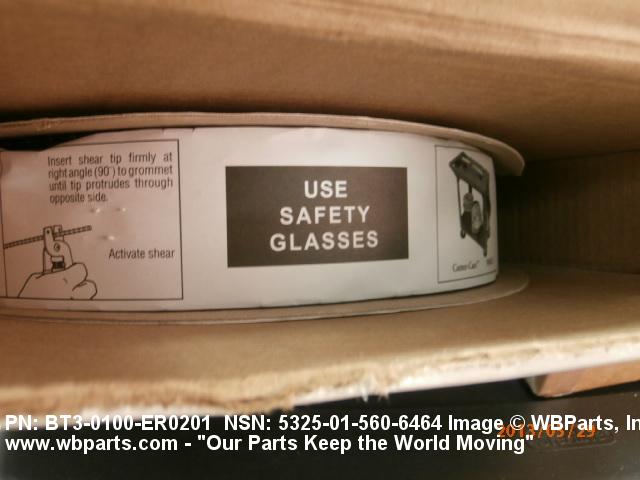

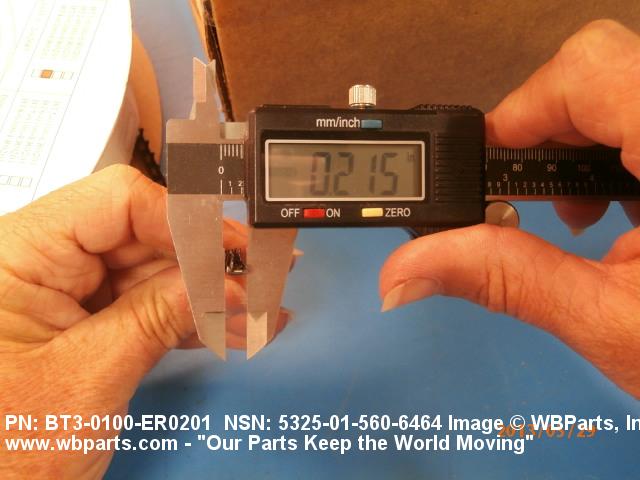

Drawings & Photos | NSN 5325-01-560-6464
Demand History | NSN 5325-01-560-6464
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1350249-01 | 2021-08-220 | 10 | DIBBS |
| 1350249-01 | 2021-08-220 | 1 | DIBBS |
| BT3-0100-ER0201 | 2021-08-220 | 10 | DIBBS |
| BT3-0100-ER0201 | 2021-08-220 | 1 | DIBBS |
| 1350249-01 | 2021-08-214 | 3 | DIBBS |
| BT3-0100-ER0201 | 2021-08-214 | 3 | DIBBS |
| 1350249-01 | 2021-07-202 | 3 | DIBBS |
| BT3-0100-ER0201 | 2021-07-202 | 3 | DIBBS |
| 1350249-01 | 2021-06-159 | 3 | DIBBS |
| BT3-0100-ER0201 | 2021-06-159 | 3 | DIBBS |
| 1350249-01 | 2021-05-133 | 1 | DIBBS |
| BT3-0100-ER0201 | 2021-05-133 | 1 | DIBBS |
| 1350249-01 | 2021-04-104 | 1 | DIBBS |
| BT3-0100-ER0201 | 2021-04-104 | 1 | DIBBS |
| 1350249-01 | 2021-03-63 | 1 | DIBBS |
| BT3-0100-ER0201 | 2021-03-63 | 1 | DIBBS |
| 1350249-01 | 2020-12-365 | 1 | DIBBS |
| BT3-0100-ER0201 | 2020-12-365 | 1 | DIBBS |
| 1350249-01 | 2020-11-306 | 1 | DIBBS |
| BT3-0100-ER0201 | 2020-11-306 | 1 | DIBBS |
| BT30100ER0201 | 2013-08-242 | 1 | United Kingdom |
| BT30100ER0201 | 2013-05-143 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-560-6464
Related Products | NSN 5325-01-560-6464
Technical Data | NSN 5325-01-560-6464
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC GROMMET STEEL COMP 304 METALLIC PARTS |
| COLOR | BLACK GROMMET |
| GROMMET STYLE | 60 EDGING |

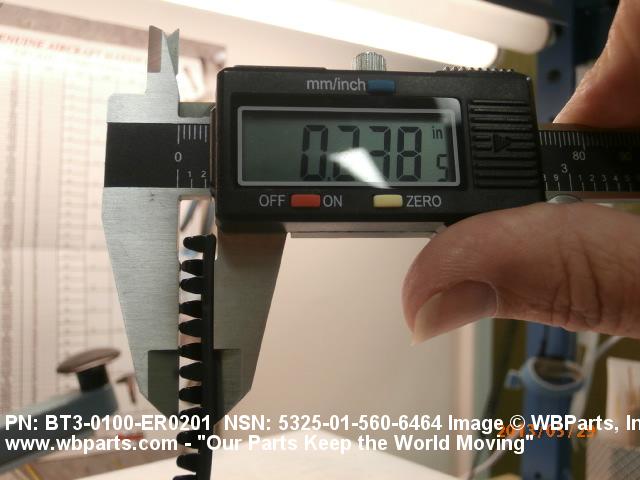

| GROOVE DEPTH | 0.230 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| GROMMET OVERALL LENGTH | 1200.000 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| NONMETALLIC HARDNESS RATING | 49.0 NOMINAL SHORE DUROMETER A |
| SPECIAL FEATURES | OPERATING TEMP -40 DEG TO +185 DEG F,DIELECTRIC STRENGTH 1500 VOLTS 60 HZ,RESISTS SALT SPRAY UP TO 2000 HOURS,IMMERSION PER NASM22529 AND SKYDROL COMPATIBLE,RANDOM SHOCK AND VIBRATION DURATION 8 HRS LONGITUDINAL AND 8 HRS PERPENDICULAR,FLAMMABILITY UL94 V-0,100 FOOT REEL |
| III END ITEM IDENTIFICATION | TEST SET CONTROLLER E-2C,4920-01-547-7988,5975-01-560 -3904 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GROMMET,CUSHION |
| MANUFACTURERS CODE | 80205 |
| MFR SOURCE CONTROLLING REFERENCE | NASM22529/2-3R-100 |
Restrictions/Controls & Freight Information | NSN 5325-01-560-6464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-560-6464
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
