NSN 5325-01-562-4492 BACR11AW2, 01-562-4492, 015624492

Product Details | TURNLOCK FASTENER RECEPTACLE

5325-01-562-4492 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: BACR11AW2, 5325-01-562-4492, 01-562-4492, 5325015624492, 015624492

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 APR 2008	01-562-4492	18485 ( RECEPTACLE, TURNLOCK FASTENER )

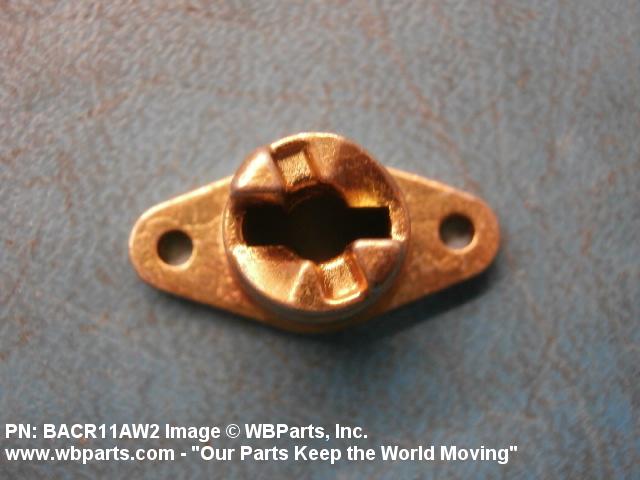

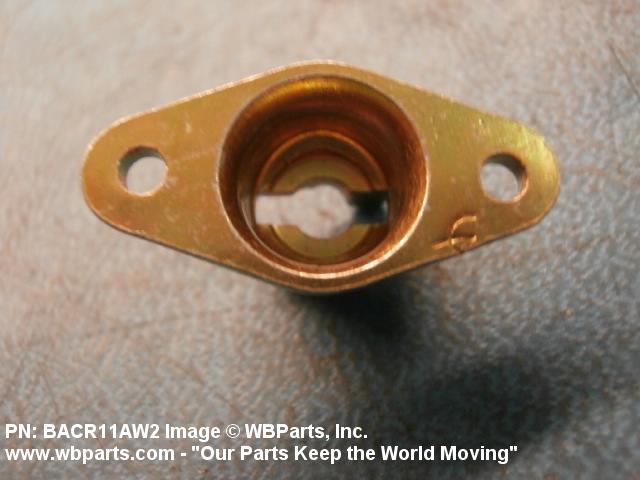

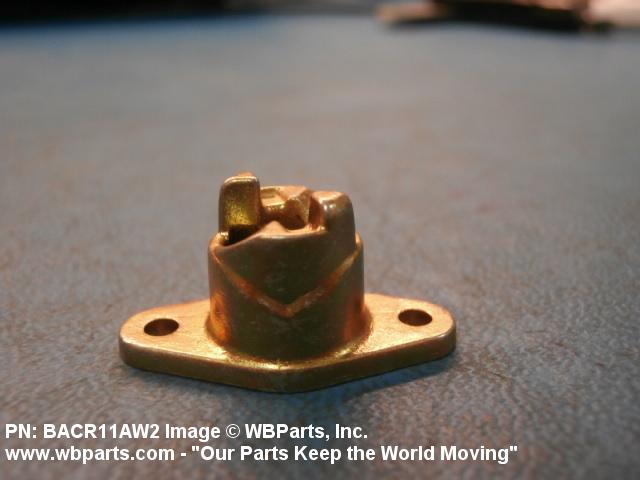

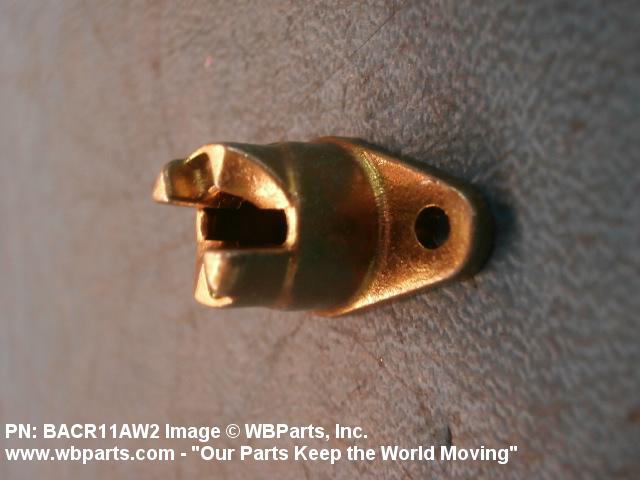

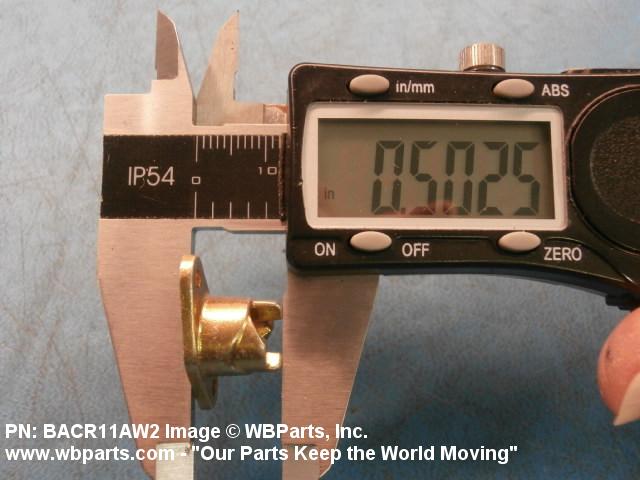

Drawings & Photos | NSN 5325-01-562-4492

Part Number	Request Date	QTY	Origin
BACR11AW2	2018-01-30	1000	Canada
BACR11AW2	2016-10-300	100	United States
BACR11AW2	2016-10-300	100	United States
5325-01-562-4492	2015-08-218	350	DIBBS
5325-01-562-4492	2013-03-77	849	DIBBS
5325-01-562-4492	2012-12-347	494	DIBBS
5325-01-562-4492	2012-07-206	550	DIBBS
5325-01-562-4492	2012-07-205	184	DIBBS
5325-01-562-4492	2010-11-326	70	DIBBS
5325-01-562-4492	2010-11-321	70	DIBBS
5325-01-562-4492	2010-10-292	70	DIBBS
5325-01-562-4492	2010-08-217	70	DIBBS
5325-01-562-4492	2010-01-06	80	DIBBS
5325-01-562-4492	2009-04-98	70	DIBBS

Cross Reference | NSN 5325-01-562-4492

Part Number	Cage Code	Manufacturer
BACR11AW2	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
BACR11AW2	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
BACR11AW2	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-562-4492

Compare

Related Products | NSN 5325-01-562-4492

5325-01-562-4602, 5325-01-562-4610, 5325-01-562-4691, 5325-01-562-4740, 5325-01-562-5540

Technical Data | NSN 5325-01-562-4492

Characteristic	Specifications
MATERIAL	COPPER ALLOY CAP COPPER ALLOY RECEPTACLE
MATERIAL DOCUMENT AND CLASSIFICATION	UNSC26000 PER ASTM B36 ASSN STD SINGLE MATERIAL RESPONSE OR UNSC26000 PER ASTM B16 ASSN STD SINGLE MATERIAL RESPONSE OR UNS C26000 PER ASTM B19 ASSN STD SINGLE MATERIAL RESPONSE CAP UNS C87800 PER ASTM B176 ASSN STD SINGLE MATERIAL RESPONSE OR UNS C87500 PER ASTM B584 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS QQ-P-416, TY 2. CL 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK RECEPTACLE STYLE	9 RECEPTACLE

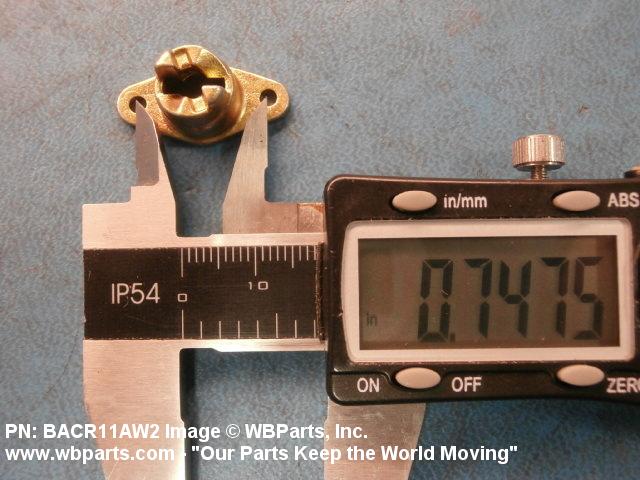

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES	0.747 INCHES MINIMUM AND 0.753 INCHES MAXIMUM

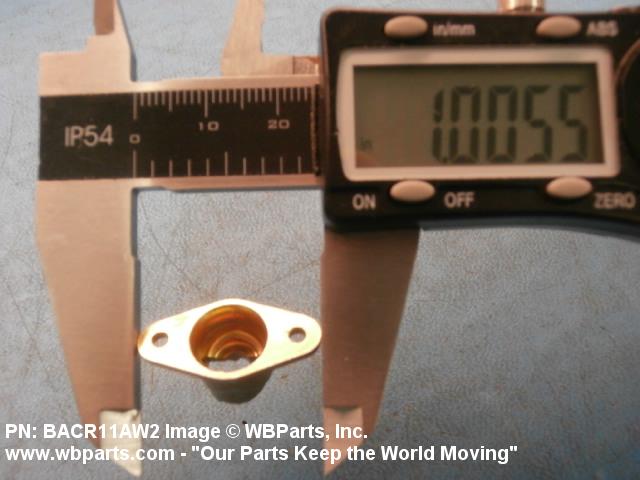

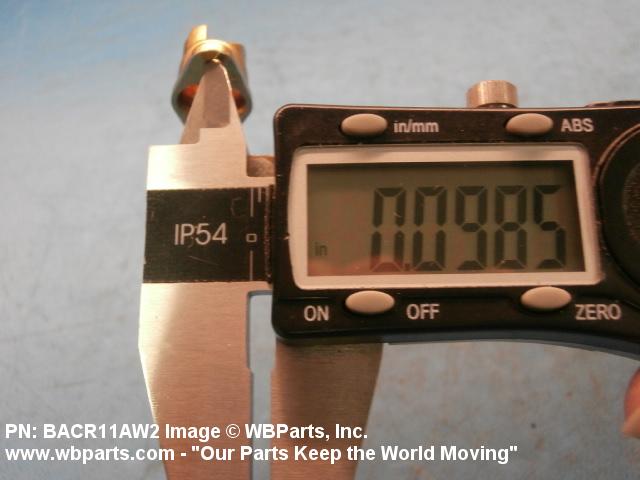

RECEPTACLE OVERALL LENGTH	0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM
RECEPTACLE HEIGHT	0.660 INCHES MINIMUM AND 0.720 INCHES MAXIMUM

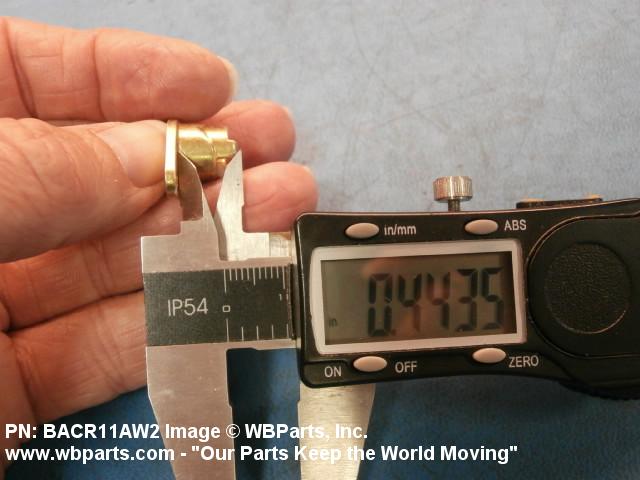

RECEPTACLE WIDTH	0.443 INCHES MINIMUM AND 0.451 INCHES MAXIMUM
MOUNTING STYLE	2 PLAIN W/MOUNTING HOLE
TURNLOCK MOUNTING HOLE DIAMETER	0.480 INCHES NOMINAL
III END ITEM IDENTIFICATION	END ITEM NSN: 1520-01-457-5179; CH-47F
III PART NAME ASSIGNED BY CONTROLLING AGENCY	RECEPTACLE, PANEL FASTENER, 1/4 TURN, NO. 2 SIZE

Restrictions/Controls & Freight Information | NSN 5325-01-562-4492

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-01-562-4492

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
