NSN 5325-01-628-9383 1970694, 1970-6-9-4 , 3M305694
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-01-628-9383 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 1970694, 1970-6-9-4 , 3M305694, 3M305-6-9-4 , 5325-01-628-9383, 01-628-9383, 5325016289383, 016289383
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014165 | 01-628-9383 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

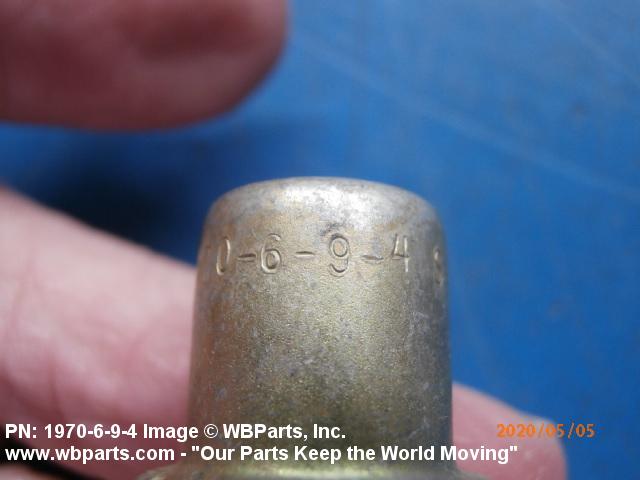

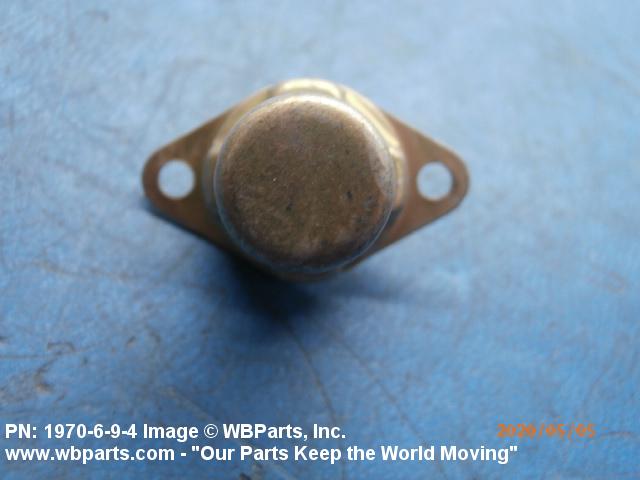

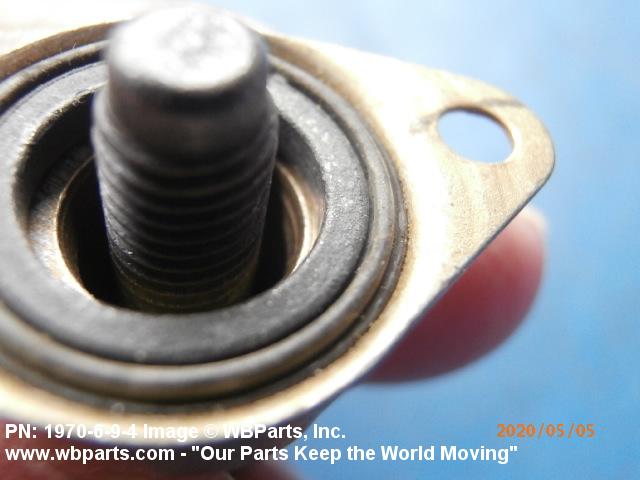

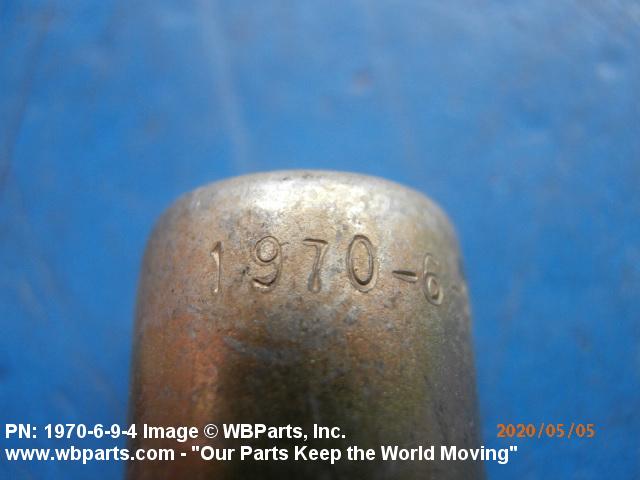

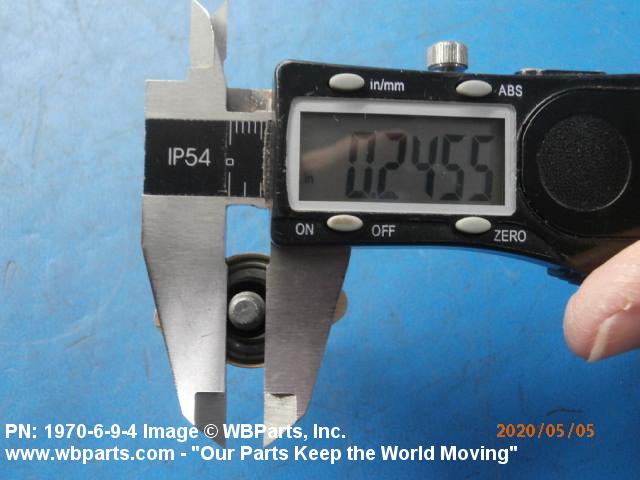

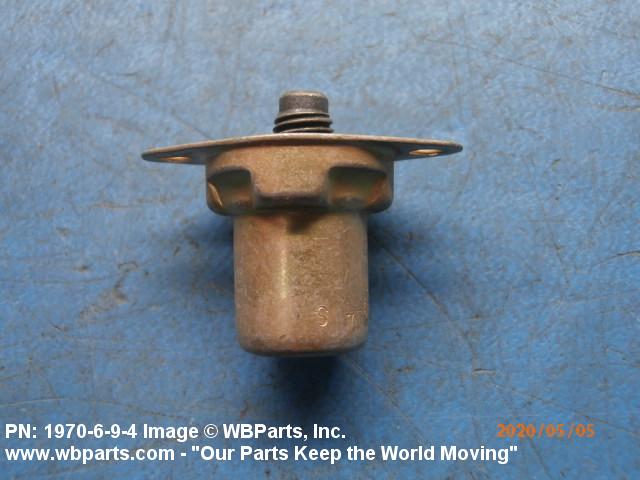

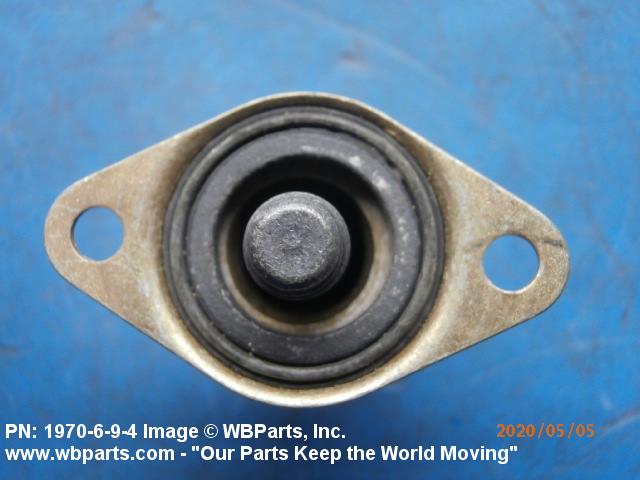

Drawings & Photos | NSN 5325-01-628-9383
Demand History | NSN 5325-01-628-9383
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1970694 | 2020-03-90 | 16 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-01-628-9383
Related Products | NSN 5325-01-628-9383
Technical Data | NSN 5325-01-628-9383
| Characteristic | Specifications |
|---|---|
| III MATERIAL | STEEL COMP 8740 OR |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK RECEPTACLE STYLE | TWO LUG FLOATING |

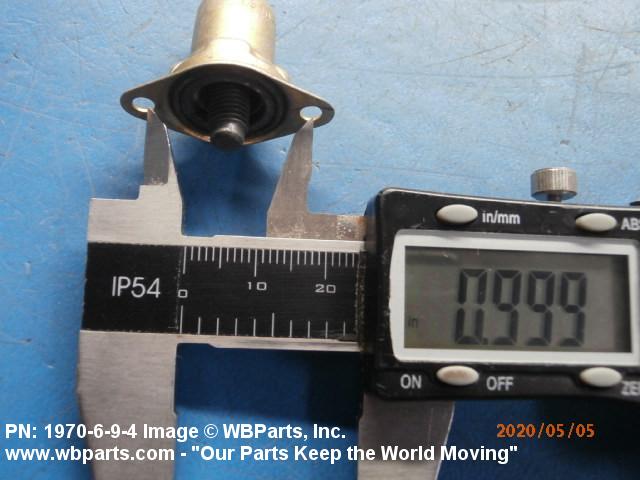

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.000 INCHES NOMINAL |

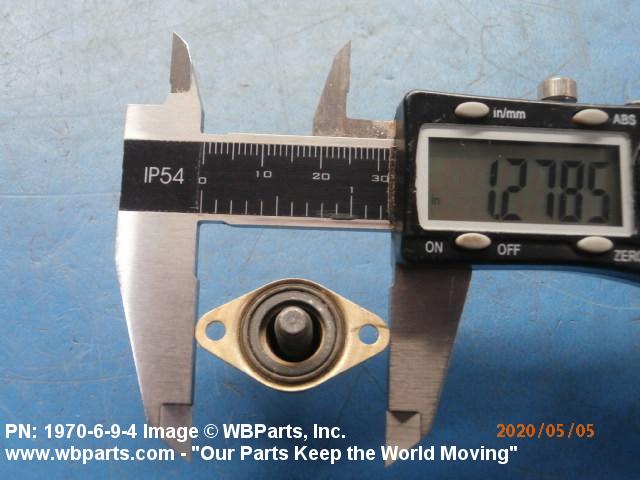

| RECEPTACLE OVERALL LENGTH | 1.297 INCHES MAXIMUM |

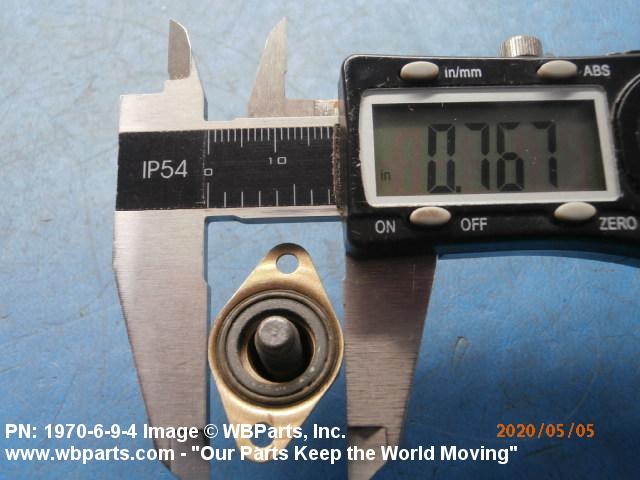

| RECEPTACLE WIDTH | 0.775 INCHES MAXIMUM |

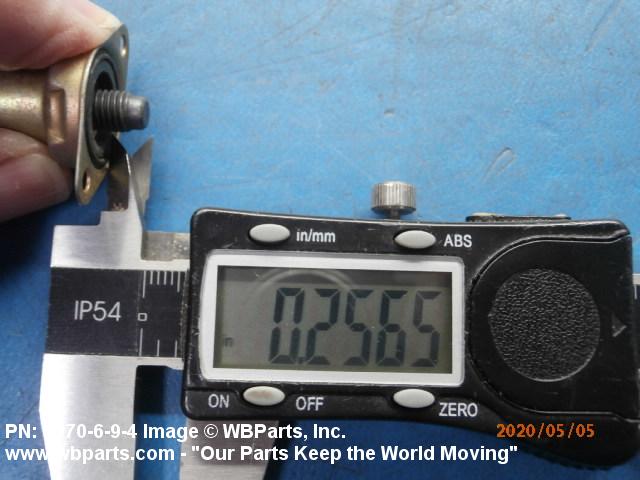

| STUD PROTRUSION LENGTH | 0.250 INCHES NOMINAL |

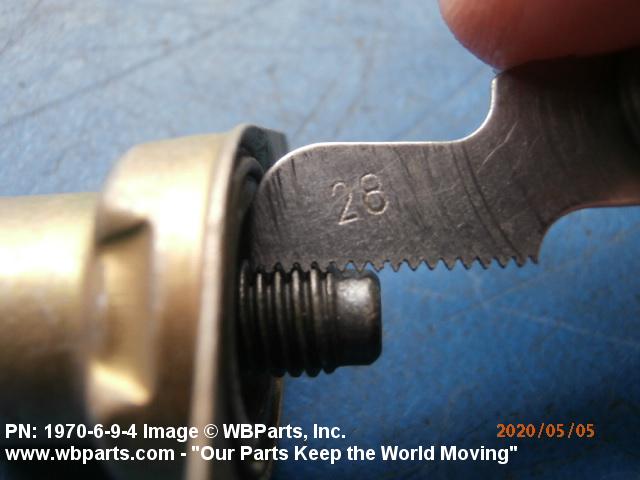

| RECEPTACLE THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3A 0.2500-28 UNF |
| MOUNTING STYLE | PLAIN W/MOUNTING HOLE |

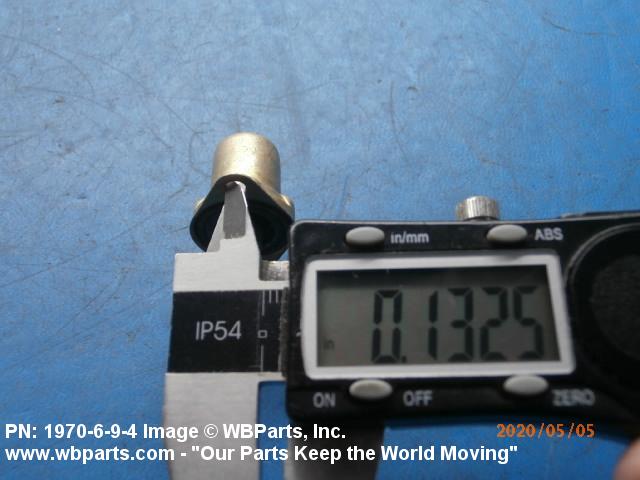

| TURNLOCK MOUNTING HOLE DIAMETER | 0.130 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING FEATURE |
| SPECIAL FEATURES | SEAL MATERIAL SYNTHETIC RUBBER |
| III END ITEM IDENTIFICATION | C-17A GLOBEMASTER III |
Restrictions/Controls & Freight Information | NSN 5325-01-628-9383
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-628-9383
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
