NSN 5330-00-007-2932 C11E45001, C11E450-01, 00-007-2932
Product Details | PACKING WITH RETAINER
5330-00-007-2932 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: C11E45001, C11E450-01, 5330-00-007-2932, 00-007-2932, 5330000072932, 000072932
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUN 1972 | 00-007-2932 | 05680 ( PACKING WITH RETAINER ) |

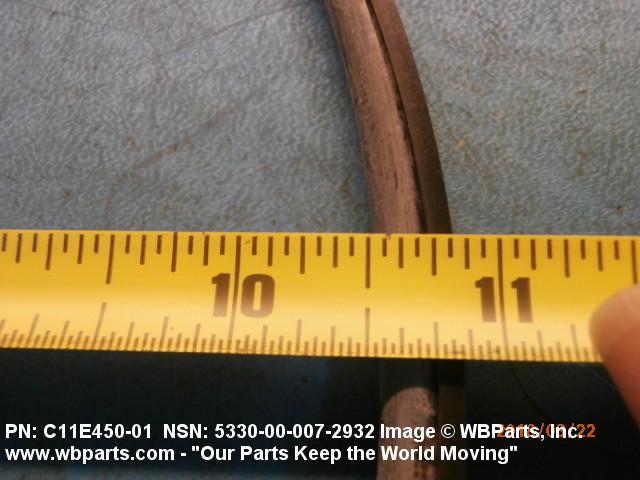

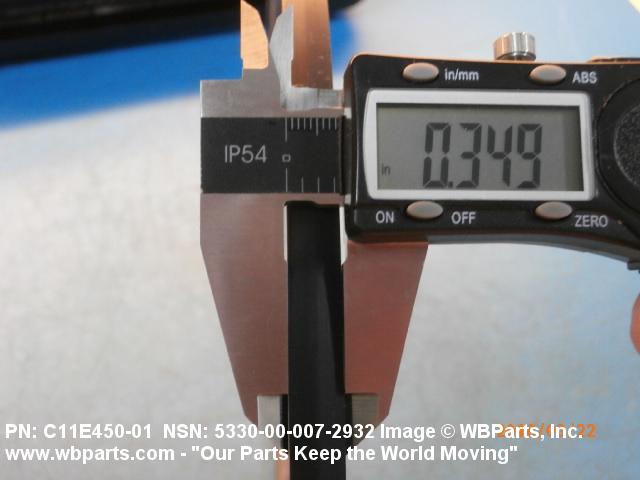

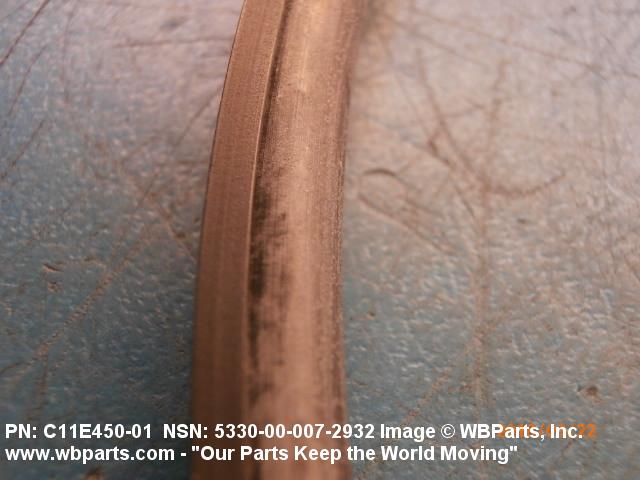

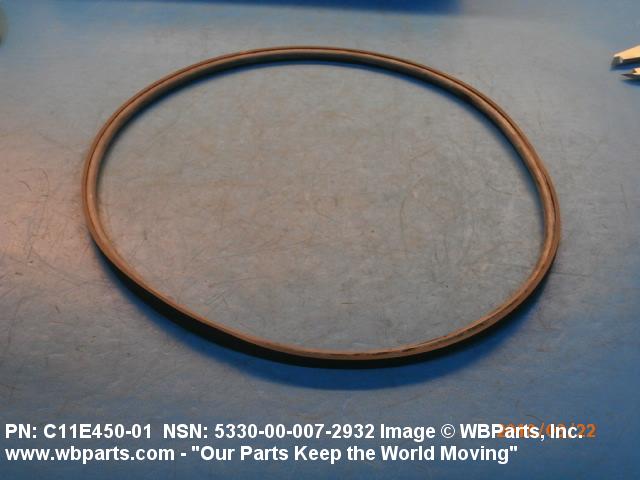

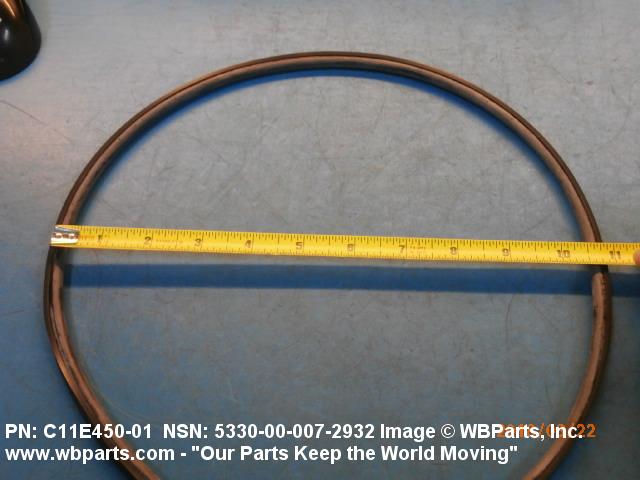

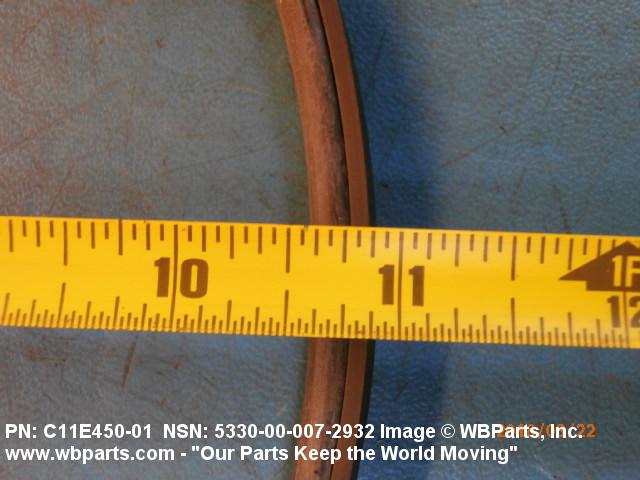

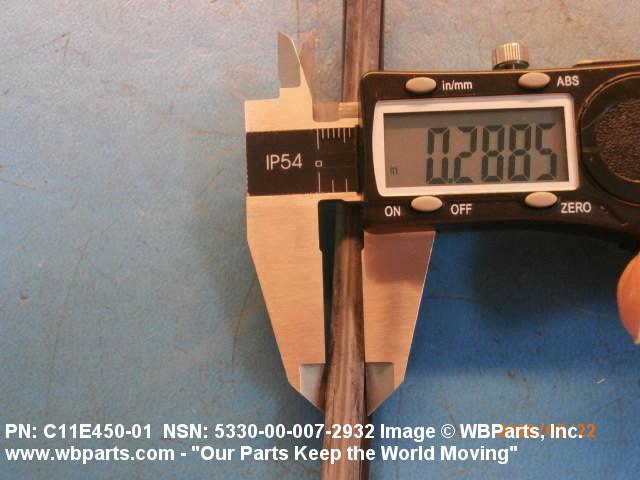

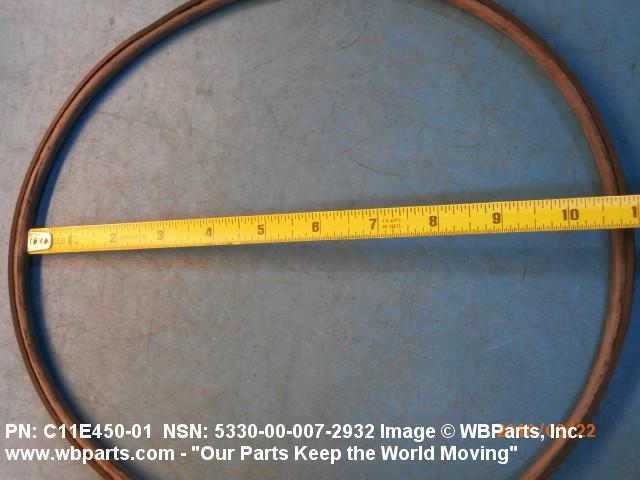

Drawings & Photos | NSN 5330-00-007-2932
Demand History | NSN 5330-00-007-2932
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C11E450-01 | 2023-03-68 | 24 | DIBBS |
| C11E450-01 | 2022-10-279 | 19 | DIBBS |
| C11E450-01 | 2022-05-132 | 4 | DIBBS |
| C11E450-01 | 2022-05-121 | 4 | DIBBS |
| 5330-00-007-2932 | 2021-04-109 | 10 | Germany |
| C11E450-01 | 2021-01-03 | 38 | DIBBS |
| C11E450-01 | 2020-12-338 | 32 | DIBBS |
| C11E450-01 | 2019-02-58 | 56 | DIBBS |
| 5330-00-007-2932 | 2018-05-150 | 22 | DIBBS |
| C11E45001 | 2018-03-86 | 4 | Iran |
| C11E45001 | 2018-03-72 | 4 | Iran |
| 5330-00-007-2932 | 2015-10-302 | 40 | DIBBS |
| 5330-00-007-2932 | 2015-07-204 | 1 | US |
| 5330-00-007-2932 | 2015-07-188 | 19 | DIBBS |
| 5330-00-007-2932 | 2014-12-348 | 14 | DIBBS |
| 5330-00-007-2932 | 2014-01-09 | 6 | DIBBS |
| 5330-00-007-2932 | 2013-12-359 | 6 | DIBBS |
| C11E450-01 | 2013-07-197 | 10 | |
| 5330-00-007-2932 | 2013-04-92 | 25 | DIBBS |
| 5330-00-007-2932 | 2013-03-86 | 8 | DIBBS |
| 5330-00-007-2932 | 2013-02-55 | 2 | DIBBS |
| 5330-00-007-2932 | 2013-02-41 | 1 | DIBBS |
| 5330-00-007-2932 | 2013-01-29 | 1 | DIBBS |
| 5330-00-007-2932 | 2012-11-316 | 1 | DIBBS |
| 5330-00-007-2932 | 2012-02-49 | 8 | DIBBS |
Cross Reference | NSN 5330-00-007-2932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C11E450-01 | 07060 | C. E. CONOVER & CO., INC. DBA RELIABLE RUBBER PRODUCTS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-007-2932
Related Products | NSN 5330-00-007-2932
Technical Data | NSN 5330-00-007-2932
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-25732 MIL SPEC SINGLE MATERIAL RESPONSE PACKING |
| CONSTRUCTION | TWO-PIECE |
| OUTSIDE DIAMETER | 10.980 INCHES NOMINAL |
| RETAINER INSIDE DIAMETER | 10.790 INCHES NOMINAL |
| PACKING INSIDE DIAMETER | 13.945 INCHES MINIMUM AND 14.005 INCHES MAXIMUM |
| RETAINER THICKNESS | 0.355 INCHES NOMINAL |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.269 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07060 |
| DESIGN CONTROL REFERENCE | C11E450-01 |
Restrictions/Controls & Freight Information | NSN 5330-00-007-2932
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-007-2932
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | Y | COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
