NSN 5330-00-007-3403 3019T43P01, 00-007-3403, 000073403

Product Details | GASKET

5330-00-007-3403 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: 3019T43P01, 5330-00-007-3403, 00-007-3403, 5330000073403, 000073403

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 JUL 1972	00-007-3403	04522 ( GASKET )

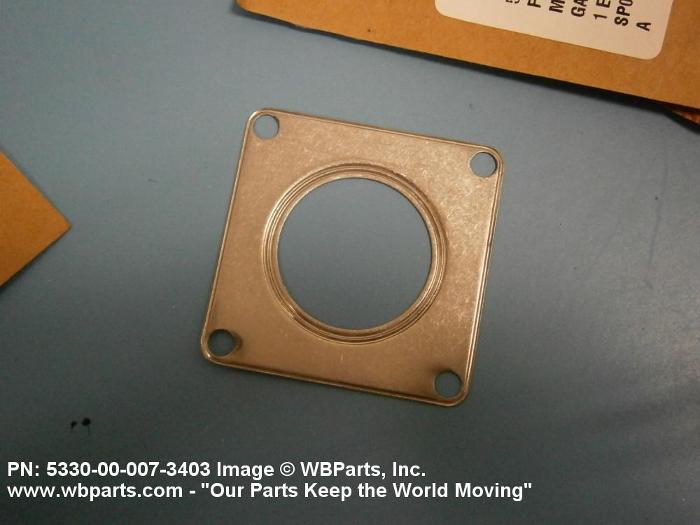

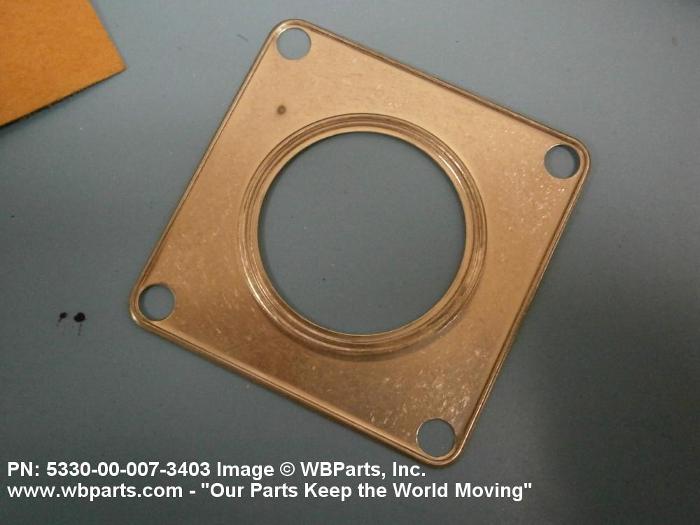

Drawings & Photos | NSN 5330-00-007-3403

Part Number	Request Date	QTY	Origin
5330-00-007-3403	2021-05-125	100	PT
3019T43P01	2021-05-123	12	US
5330-00-007-3403	2019-06-164	528	DIBBS
5330-00-007-3403	2019-06-156	528	DIBBS
5330-00-007-3403	2019-01-02	528	DIBBS
5330-00-007-3403	2018-12-359	528	DIBBS
5330-00-007-3403	2018-10-304	1	DIBBS-RFPs
5330-00-007-3403	2017-04-103	100	Taiwan
5330-00-007-3403	2014-10-281	819	DIBBS
5330-00-007-3403	2014-08-216	142	DIBBS
5330-00-007-3403	2014-07-205	142	DIBBS
3019T43P01	2014-07-198	5	United States
5330-00-007-3403	2012-03-89	533	DIBBS
3019T43P01	2011-10-286	2	United States
3019T43P01	2011-08-231	60	United States
5330-00-007-3403	2010-03-67	500	DIBBS
5330-00-007-3403	2009-07-194	429	DIBBS
5330-00-007-3403	2009-04-96	278	DIBBS
5330-00-007-3403	2008-09-252	30	Taiwan
5330-00-007-3403	2008-06-162	500	DIBBS
3019T43P01	2006-10-276	2	US

Cross Reference | NSN 5330-00-007-3403

Part Number	Cage Code	Manufacturer
3019T43P01	99207	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-007-3403

Compare

Related Products | NSN 5330-00-007-3403

5330-00-007-3404, 5330-00-007-3405, 5330-00-007-3407, 5330-00-007-4165, 5330-00-007-4181

Technical Data | NSN 5330-00-007-3403

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
CROSS-SECTIONAL THICKNESS	0.016 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
GAGE RING THICKNESS	0.008 INCHES MINIMUM AND 0.018 INCHES MAXIMUM
STYLE DESIGNATOR	B18B NON-CIRCULAR
HOLE DIAMETER	0.208 INCHES MINIMUM AND 0.218 INCHES MAXIMUM
OVERALL LENGTH	1.972 INCHES MINIMUM AND 1.992 INCHES MAXIMUM
OVERALL WIDTH	1.972 INCHES MINIMUM AND 1.992 INCHES MAXIMUM
APERTURE DIAMETER	1.230 INCHES MINIMUM AND 1.260 INCHES MAXIMUM
OUTSIDE CORNER RADIUS	0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH	1.812 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH	1.812 INCHES NOMINAL
OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH	0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH	0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
BOLT HOLE QUANTITY	4
MANUFACTURERS CODE	99207
DESIGN CONTROL REFERENCE	3019T43P01

Restrictions/Controls & Freight Information | NSN 5330-00-007-3403

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI SUB8
Less than car load rating	J	100.2
Less than truck load rating	M	85.0
Water commodity Code	596	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-007-3403

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	OK	SX:GENERAL ELECTRIC JET ENGINES & COMPONENTS, J-85
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
