NSN 5330-00-038-2175 00-038-2175, 000382175
Product Details | NONMETALLIC STRIP SEAL
5330-00-038-2175 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 5330-00-038-2175, 00-038-2175, 5330000382175, 000382175
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-038-2175 | 36874 ( SEAL, NONMETALLIC STRIP ) |
Drawings & Photos | NSN 5330-00-038-2175
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-038-2175
Technical Data | NSN 5330-00-038-2175
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR AND ASBESTOS OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3201 ASSN STD 1ST MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |

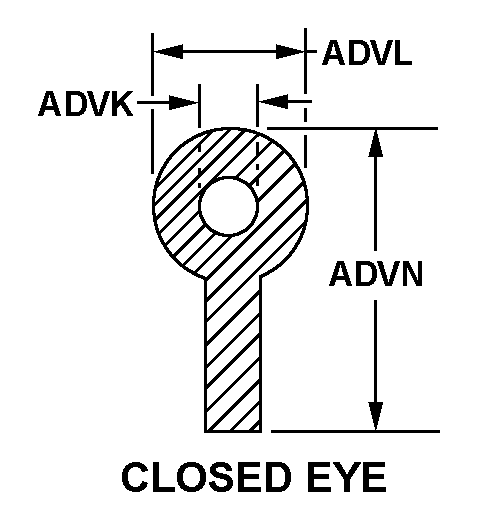

| CROSS-SECTIONAL SHAPE STYLE | G32 CLOSED EYE |
| CROSS SECTION INSIDE DIAMETER | 0.312 INCHES MINIMUM |
| CROSS SECTION OUTSIDE DIAMETER | 0.528 INCHES MINIMUM AND 0.592 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 1.255 INCHES MINIMUM AND 1.345 INCHES MAXIMUM |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 144.000 INCHES MINIMUM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | 12 FT MIN. LG |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS471 |
Restrictions/Controls & Freight Information | NSN 5330-00-038-2175
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
