Product Details | COUPLER SEAL SLEEVE
5330-00-070-2253 A cylindrical shaped item constructed of pliable nonmetallic solid or laminated materials. It is designed to fit around flanged or beaded end tubing, ducts, piping, and the like, to form a tight and effective seal against gases and liquids; when compressed with a clamp. For items used to convey air under low pressure, see HOSE, AIR DUCT. Excludes PACKING, PREFORMED; TUBING, NONMETALLIC; and BUSHING, RUBBER.
Part Alternates: 42737825, 42737-825, 42737-8-250, 5330-00-070-2253, 00-070-2253, 5330000702253, 000702253, 427378250
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1967 | 00-070-2253 | 20780 ( SLEEVE, SEAL, COUPLER ) |
Drawings & Photos | NSN 5330-00-070-2253
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-00-070-2253
5330-00-070-2331, 5330-00-070-2334, 5330-00-070-2365, 5330-00-070-2732, 5330-00-070-2809
Technical Data | NSN 5330-00-070-2253
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q AND GLASS OVERALL |

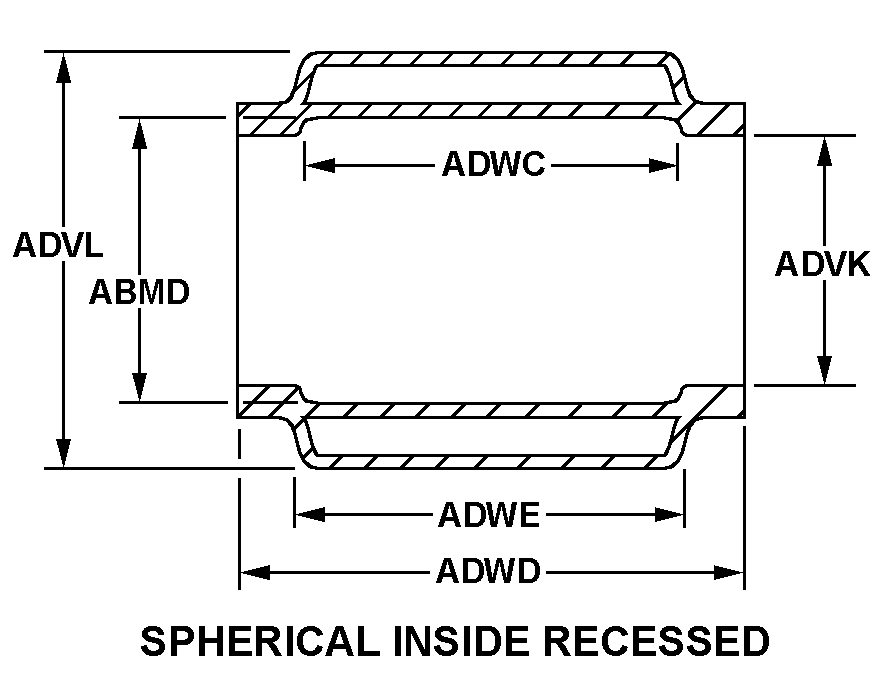

| CROSS-SECTIONAL SHAPE STYLE | 3 SPHERICAL INSIDE RECESSED |
| RECESS DIAMETER | 1.125 INCHES NOMINAL |
| RECESS LENGTH | 0.776 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| CROSS SECTION INSIDE DIAMETER | 0.938 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| RAISED DIAMETER LENGTH | 1.098 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| CROSS-SECTIONAL LENGTH | 1.500 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 42737-825 |
