NSN 5330-00-110-6222 CA6256, DA5136, 6881661
Product Details | GASKET
5330-00-110-6222 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: CA6256, DA5136, 6881661, 688166-1, 9630M74P02, 9643M84, 9643M84P01, 9643M84P02, 5330-00-110-6222, 00-110-6222, 5330001106222, 001106222
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1968 | 00-110-6222 | 04522 ( GASKET ) |

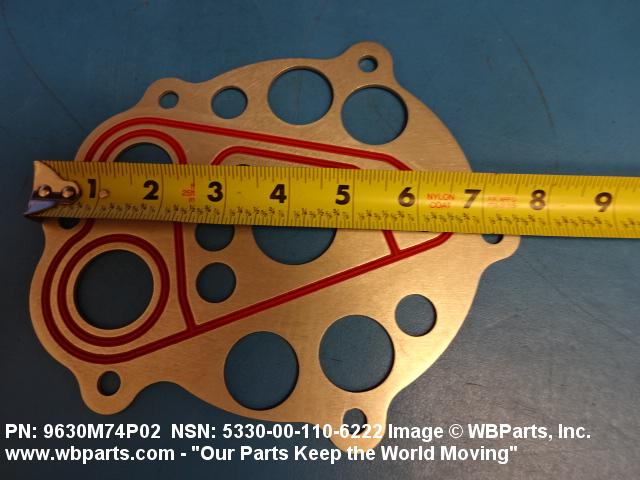

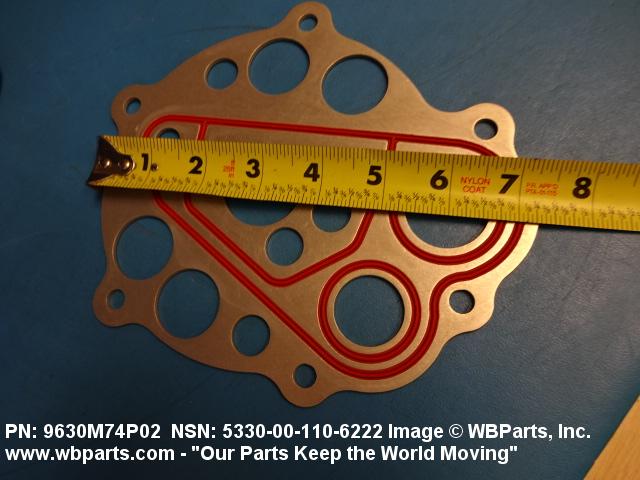

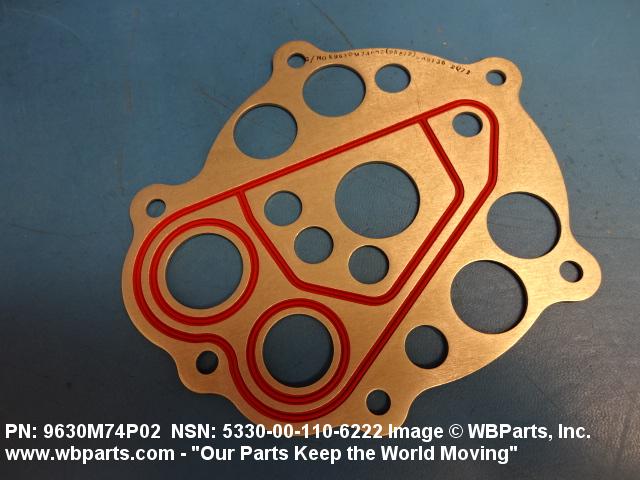

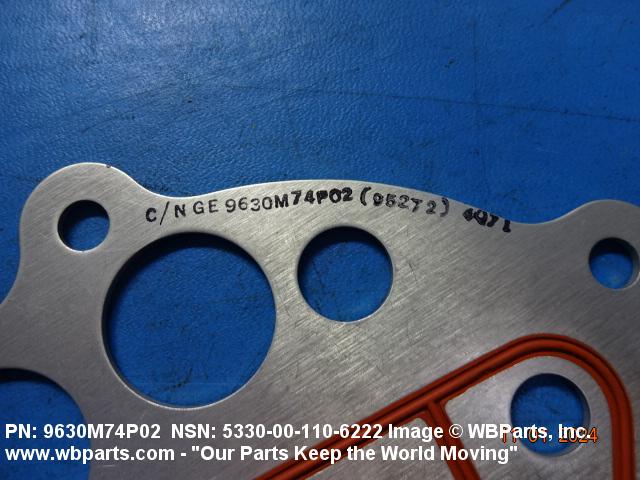

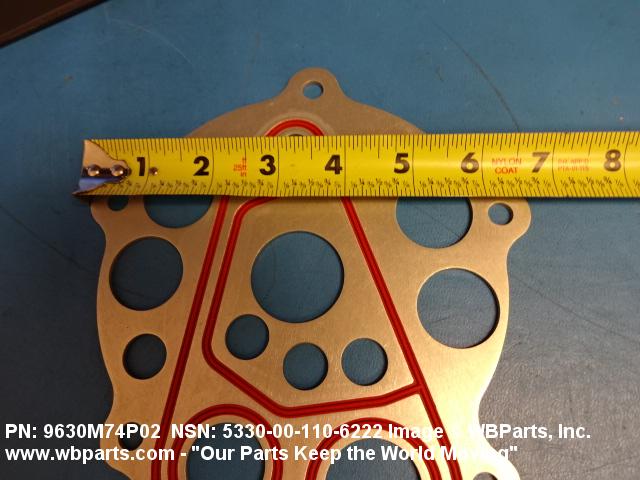

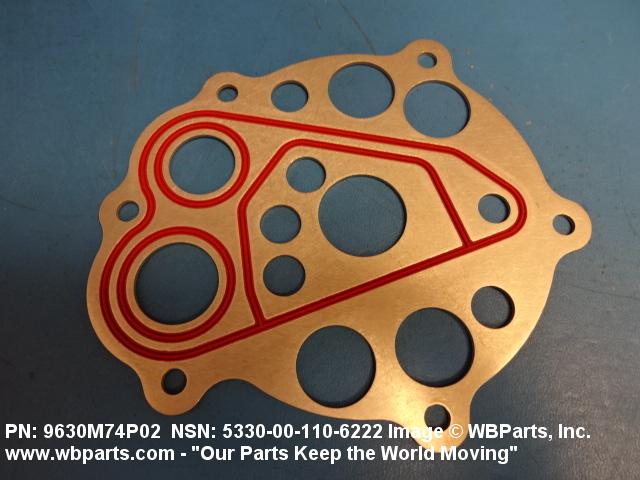

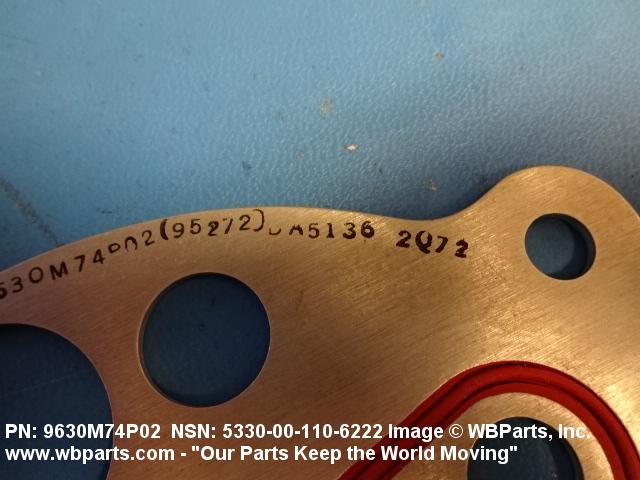

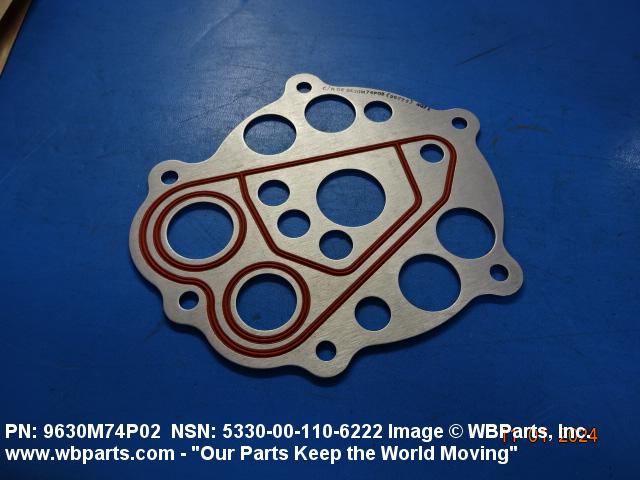

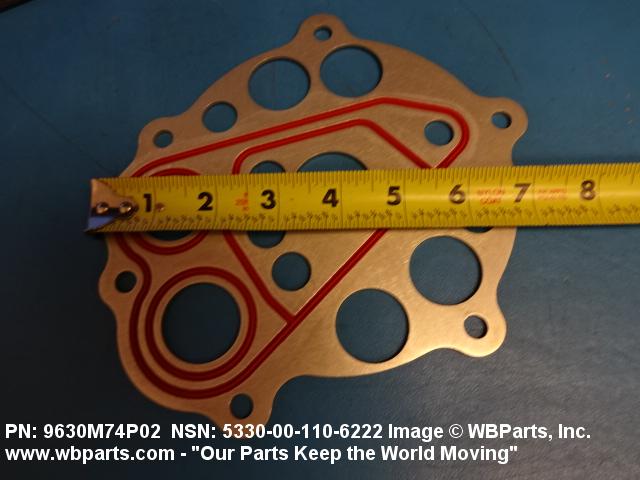

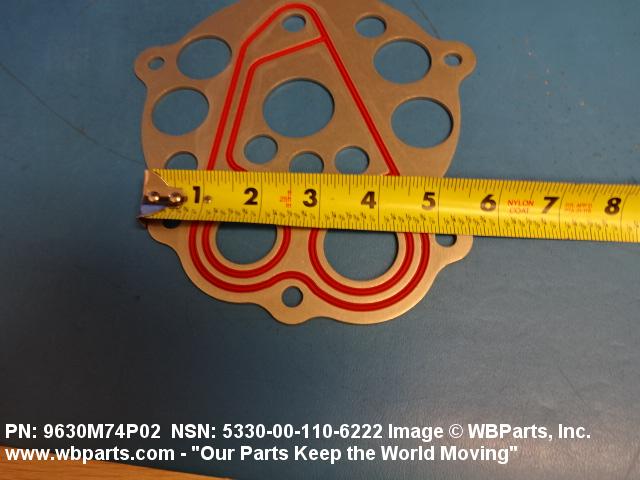

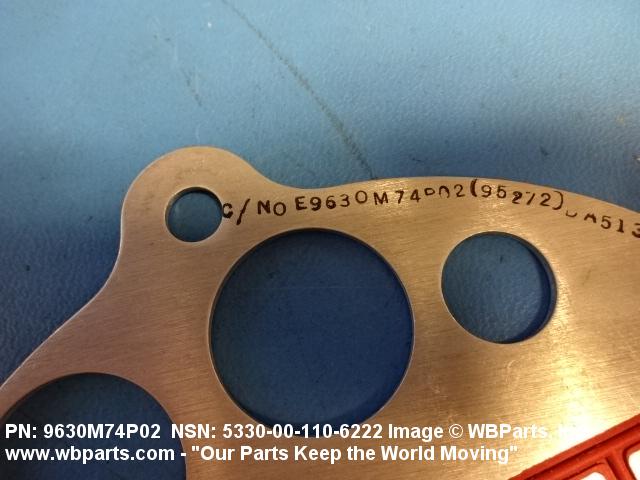

Drawings & Photos | NSN 5330-00-110-6222
Demand History | NSN 5330-00-110-6222
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-110-6222 | 2025-06-164 | 1 | Netherlands |
| 5330-00-110-6222 | 2024-10-291 | 1 | Taiwan |
| 688166-1 | 2024-07-207 | 48 | DIBBS |
| 9630M74P02 | 2024-07-207 | 48 | DIBBS |
| 9643M84P01 | 2024-07-207 | 48 | DIBBS |
| 9643M84P02 | 2024-07-207 | 48 | DIBBS |
| CA6256 | 2024-07-207 | 48 | DIBBS |
| 5330-00-110-6222 | 2024-03-67 | 1 | United States |
| 688166-1 | 2022-12-335 | 39 | DIBBS |
| 9630M74P02 | 2022-12-335 | 39 | DIBBS |
| 9643M84P01 | 2022-12-335 | 39 | DIBBS |
| 9643M84P02 | 2022-12-335 | 39 | DIBBS |
| CA6256 | 2022-12-335 | 39 | DIBBS |
| 688166-1 | 2021-11-320 | 62 | DIBBS |
| 9630M74P02 | 2021-11-320 | 62 | DIBBS |
| 9643M84P01 | 2021-11-320 | 62 | DIBBS |
| 9643M84P02 | 2021-11-320 | 62 | DIBBS |
| CA6256 | 2021-11-320 | 62 | DIBBS |
| 688166-1 | 2021-11-308 | 35 | DIBBS |
| 9630M74P02 | 2021-11-308 | 35 | DIBBS |
| 9643M84P01 | 2021-11-308 | 35 | DIBBS |
| 9643M84P02 | 2021-11-308 | 35 | DIBBS |
| CA6256 | 2021-11-308 | 35 | DIBBS |
| 688166-1 | 2021-11-305 | 62 | DIBBS |
| 9630M74P02 | 2021-11-305 | 62 | DIBBS |
| 9643M84P01 | 2021-11-305 | 62 | DIBBS |
| 9643M84P02 | 2021-11-305 | 62 | DIBBS |
| CA6256 | 2021-11-305 | 62 | DIBBS |
| 688166-1 | 2020-11-329 | 80 | DIBBS |
| 9630M74P02 | 2020-11-329 | 80 | DIBBS |
| 9643M84P01 | 2020-11-329 | 80 | DIBBS |
| 9643M84P02 | 2020-11-329 | 80 | DIBBS |
| CA6256 | 2020-11-329 | 80 | DIBBS |
| 5330-00-110-6222 | 2020-10-302 | 5 | Saudi Arabia |
| 5330-00-110-6222 | 2020-09-254 | 10 | Saudi Arabia |
| 5330-00-110-6222 | 2020-07-206 | 20 | Saudi Arabia |
| 688166-1 | 2019-09-272 | 66 | DIBBS |
| 9630M74P02 | 2019-09-272 | 66 | DIBBS |
| 9643M84P01 | 2019-09-272 | 66 | DIBBS |
| 9643M84P02 | 2019-09-272 | 66 | DIBBS |
| CA6256 | 2019-09-272 | 66 | DIBBS |
| 5330-00-110-6222 | 2019-06-178 | 1 | Taiwan |
| 5330-00-110-6222 | 2019-02-45 | 2 | Taiwan |
| 5330-00-110-6222 | 2018-05-149 | 111 | DIBBS |
| 5330-00-110-6222 | 2018-05-141 | 111 | DIBBS |
| 5330-00-110-6222 | 2014-11-306 | 104 | DIBBS |
| 9643M84P02 | 2014-08-237 | 1 | United States |
| 5330-00-110-6222 | 2014-06-152 | 39 | DIBBS |
| 5330-00-110-6222 | 2013-10-290 | 1 | DIBBS-RFPs |
| 5330-00-110-6222 | 2013-09-273 | 1 | DIBBS-RFPs |
| 9643M84P01 | 2009-07-204 | 1 | United States |
Cross Reference | NSN 5330-00-110-6222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 688166-1 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| 688166-1 | C0308 | O-RING DIVISION EUROPE |
| 9630M74P02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9643M84 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9643M84P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 9643M84P02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| CA6256 | 95272 | STILLMAN SEAL CORPORATION |
| CA6256 | SW461 | HUTCHINSON SEAL DE MEXICO STILLMAN SEAL DIVISION |
| DA5136 | 02858 | SARGENT INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-110-6222
Related Products | NSN 5330-00-110-6222
Technical Data | NSN 5330-00-110-6222
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AND RUBBER OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F51 METAL AND SYNTHETIC RUBBER |
| CROSS-SECTIONAL THICKNESS | 0.122 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |

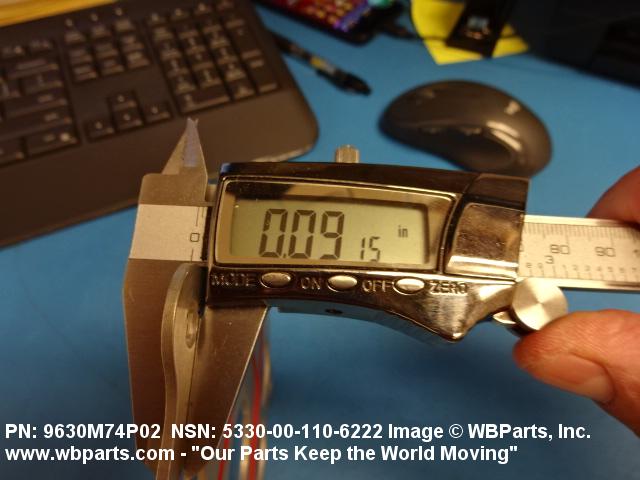

| GAGE RING THICKNESS | 0.086 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HOLE DIAMETER | 0.337 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| OVERALL LENGTH | 7.481 INCHES MINIMUM AND 7.561 INCHES MAXIMUM |
| OVERALL WIDTH | 6.702 INCHES MINIMUM AND 6.782 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| SPECIAL FEATURES | GASKET HAS 4 APERTURES WITH THE FOLLOWING DIAMETERS: MIN 0.480 IN. AND MAX 0.520 IN.; MIN 1.050 IN. AND MAX 1.074 IN.; MIN 1.238 IN. AND MAX 1.262 IN.; MIN 1.374 IN. AND MAX 1.376 IN. |
| III TEMP RATING | -65.0 DEG FAHRENHEIT AND 350.0 DEG FAHRENHEIT |
| III MAXIMUM PRESSURE RATING | 1500.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 5330-00-110-6222
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-110-6222
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NY | SX:"GENERAL ELECTRIC ENGINES & COMPONENTS, TF-39" |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
