NSN 5330-00-115-3196 9063M80G01, 9652M77G01, 9677M86G01
Product Details | GASKET
5330-00-115-3196 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 9063M80G01, 9652M77G01, 9677M86G01, 5330-00-115-3196, 00-115-3196, 5330001153196, 001153196
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16-SEP-68 | 00-115-3196 | 04522 ( GASKET ) |

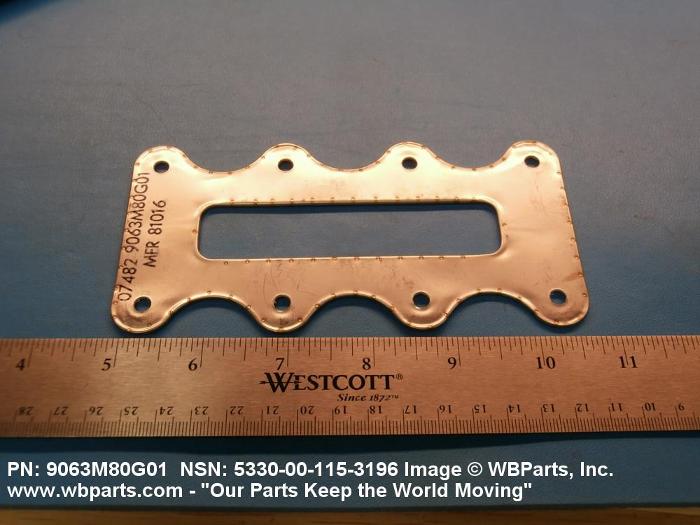

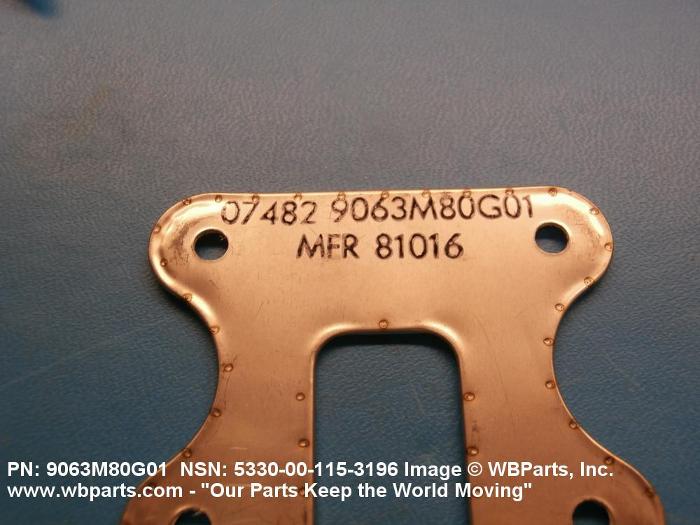

Drawings & Photos | NSN 5330-00-115-3196
Demand History | NSN 5330-00-115-3196
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-115-3196 | 2012-09-261 | 24 | South Korea |
| 5330-00-115-3196 | 2012-04-100 | 24 | MANUAL |
| 9677M86G01 | 2012-04-100 | 24 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-115-3196
Technical Data | NSN 5330-00-115-3196
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F21 RECTANGULAR METAL |
| CROSS-SECTIONAL THICKNESS | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| HOLE DIAMETER | 0.212 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| OVERALL LENGTH | 5.860 INCHES MINIMUM AND 5.900 INCHES MAXIMUM |
| OVERALL WIDTH | 2.900 INCHES MINIMUM AND 2.940 INCHES MAXIMUM |
| APERTURE LENGTH | 3.880 INCHES MINIMUM AND 3.920 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 9063M80G01 |
Restrictions/Controls & Freight Information | NSN 5330-00-115-3196
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
