NSN 5330-00-291-0755 B4804PC5, B-48-04PC5, 00-291-0755
Product Details | NONMETALLIC ANGLE SEAL
5330-00-291-0755 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: B4804PC5, B-48-04PC5, 5330-00-291-0755, 00-291-0755, 5330002910755, 002910755
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 SEP 1980 | 00-291-0755 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-00-291-0755
Cross Reference | NSN 5330-00-291-0755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B-48-04PC5 | 81340 | UNITED STATES COAST GUARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-291-0755
Technical Data | NSN 5330-00-291-0755
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-900 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | ONE-PIECE |
| CROSS-SECTIONAL SHAPE STYLE | J2 L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.550 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 0.240 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.050 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.110 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 7.250 INCHES NOMINAL |

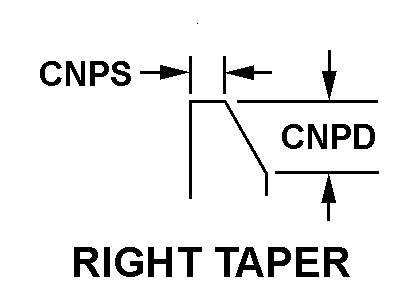

| LEFT TIP STYLE | J10A RIGHT TAPER |
| FIRST TIP TAPER LENGTH | 0.100 INCHES NOMINAL |
| FIRST TIP THICKNESS | 0.050 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |
Restrictions/Controls & Freight Information | NSN 5330-00-291-0755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-00-291-0755
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
