NSN 5330-00-467-0480 D4-224E005 ITEM 146, D4224E005ITEM146, 0315.0002.C
Product Details | GASKET
5330-00-467-0480 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: D4-224E005 ITEM 146, D4224E005ITEM146, 0315.0002.C, 03150002C, 0315-0002C, 05315002, 05-315-002, 9A03150002C, 9A-0315-0002C , 5330-00-467-0480, 00-467-0480, 5330004670480, 004670480
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAY 1974 | 00-467-0480 | 04522 ( GASKET ) |

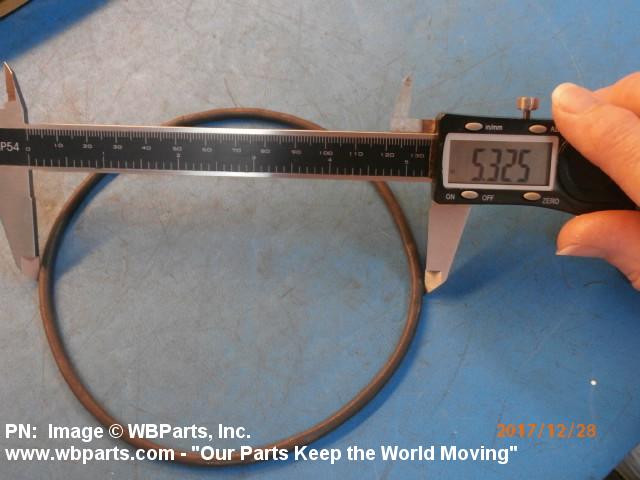

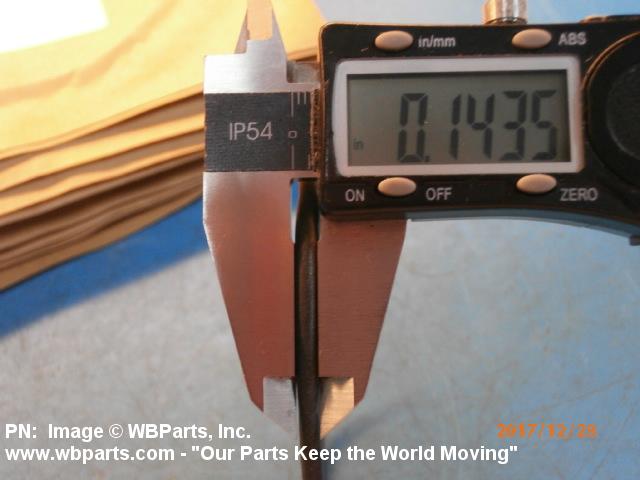

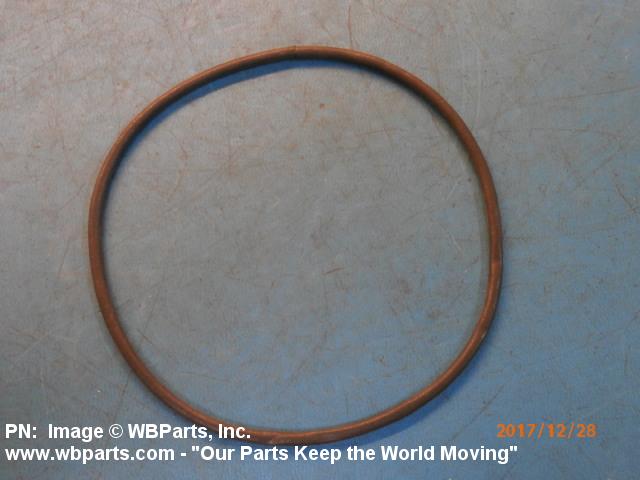

Drawings & Photos | NSN 5330-00-467-0480
Demand History | NSN 5330-00-467-0480
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9A-0315-0002C | 2024-08-217 | 323 | DIBBS |
| D4-224E005 ITEM 146 | 2024-08-217 | 323 | DIBBS |
| 9A-0315-0002C | 2021-05-133 | 295 | DIBBS |
| D4-224E005 ITEM 146 | 2021-05-133 | 295 | DIBBS |
| 9A-0315-0002C | 2020-02-58 | 250 | DIBBS |
| D4-224E005 ITEM 146 | 2020-02-58 | 250 | DIBBS |
| 5330-00-467-0480 | 2017-08-232 | 15 | United States |
| 5330-00-467-0480 | 2017-06-171 | 197 | DIBBS |
| 5330-00-467-0480 | 2015-10-280 | 202 | DIBBS |
| 5330-00-467-0480 | 2011-12-339 | 224 | DIBBS |
| 5330-00-467-0480 | 2010-09-270 | 155 | DIBBS |
Cross Reference | NSN 5330-00-467-0480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0315-0002C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 0315.0002.C | 05991 | CAMERON TECHNOLOGIES US, INC. DBA CAMERON'S MEASUREMENT SYSTEMS |
| 05-315-002 | 05991 | CAMERON TECHNOLOGIES US, INC. DBA CAMERON'S MEASUREMENT SYSTEMS |
| 9A-0315-0002C | 05991 | CAMERON TECHNOLOGIES US, INC. DBA CAMERON'S MEASUREMENT SYSTEMS |
| D4-224E005 ITEM 146 | 0BHF9 | PRIME TECHNOLOGY, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-467-0480
Technical Data | NSN 5330-00-467-0480
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | STYLE DESIGNATOR:NO.60 IRREGULAR SHAPE FROM FIIG A03200 |
| III SUPPLEMENTARY FEATURES | CROSS-SECTIONAL SHAPE STYLE:NO.195 IRREGULAR SHAPE FROM FIIG A03200 |
| MANUFACTURERS CODE | 05991 |
| DESIGN CONTROL REFERENCE | 0315.0002.C |
Restrictions/Controls & Freight Information | NSN 5330-00-467-0480
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-467-0480
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
