Product Details | PACKING RETAINER
5330-00-492-2939 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: 12100CA8, 5330-00-492-2939, 00-492-2939, 5330004922939, 004922939
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1974 | 00-492-2939 | 13706 ( RETAINER, PACKING ) |

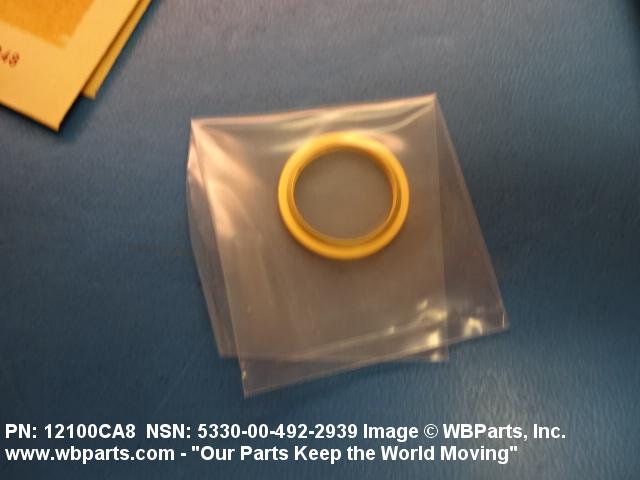

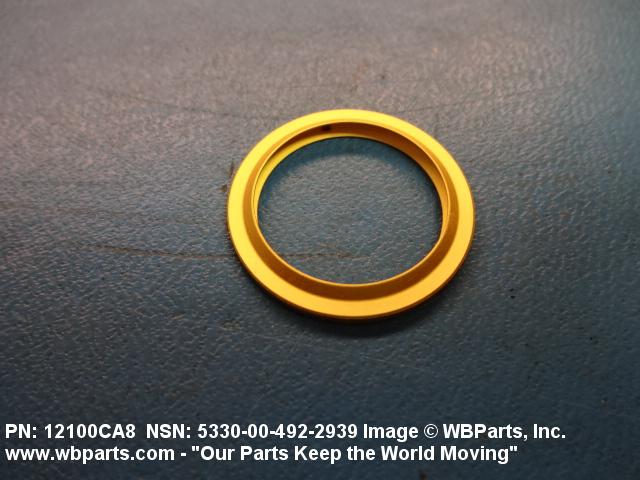

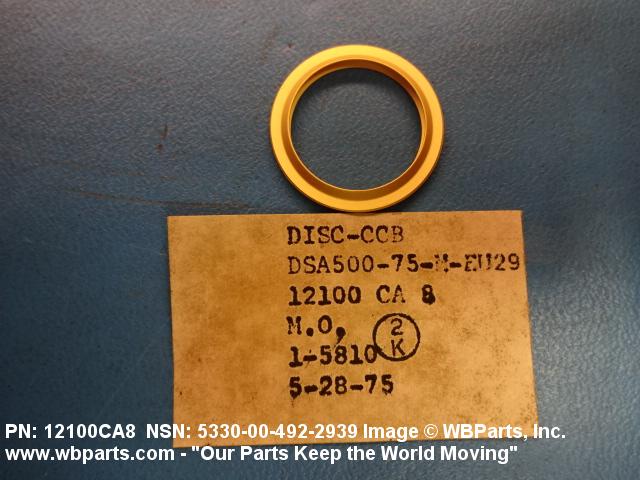

Drawings & Photos | NSN 5330-00-492-2939
Demand History | NSN 5330-00-492-2939
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12100CA8 | 2024-05-02 | 12 | DIBBS |
| 12100CA8 | 2023-11-28 | 17 | DIBBS |
| 12100CA8 | 2023-07-20 | 5 | DIBBS |
| 5330-00-492-2939 | 2019-05-28 | 5 | United States |
| 12100CA8 | 2019-04-12 | 5 | DIBBS |
| 12100CA8 | 2019-04-03 | 5 | DIBBS |
| 5330-00-492-2939 | 2011-05-16 | 90 | DIBBS |
| 5330-00-492-2939 | 2010-08-24 | 25 | DIBBS |
| 5330-00-492-2939 | 2010-07-30 | 4 | DIBBS |
| 5330-00-492-2939 | 2009-08-06 | 14 | DIBBS |
| 5330-00-492-2939 | 2009-07-20 | 16 | DIBBS |
Cross Reference | NSN 5330-00-492-2939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12100CA8 | 08199 | EATON AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5330-00-492-2939
Related Products | NSN 5330-00-492-2939
5330-00-492-2942, 5330-00-492-2957, 5330-00-492-2958, 5330-00-492-2959, 5330-00-492-2964
Technical Data | NSN 5330-00-492-2939
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

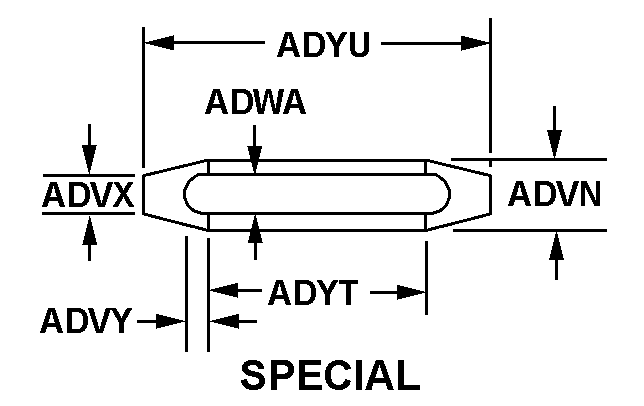

| CROSS-SECTIONAL SHAPE STYLE | D55 SPECIAL |

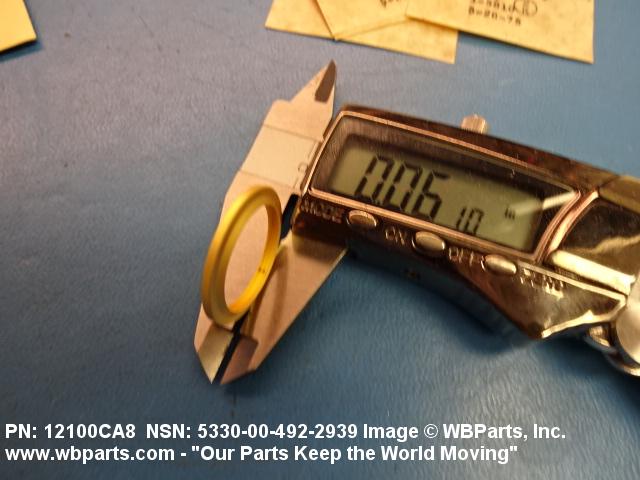

| CROSS-SECTIONAL HEIGHT | 0.120 INCHES NOMINAL |
| RIM SURFACE WIDTH | 0.051 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| INNER GROOVE WIDTH | 0.094 INCHES NOMINAL |

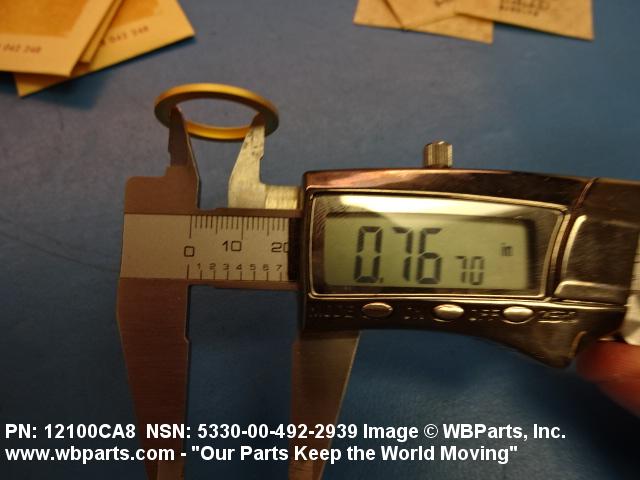

| CENTER HOLE DIAMETER | 0.766 INCHES NOMINAL |

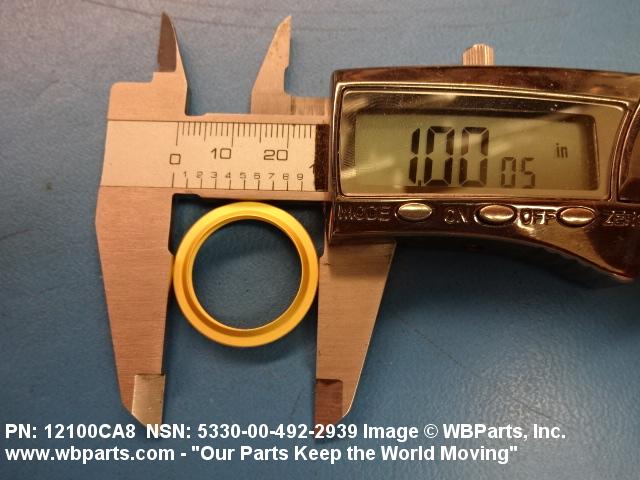

| PERIPHERAL DIAMETER | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-492-2939
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-492-2939
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
