Product Details | GASKET

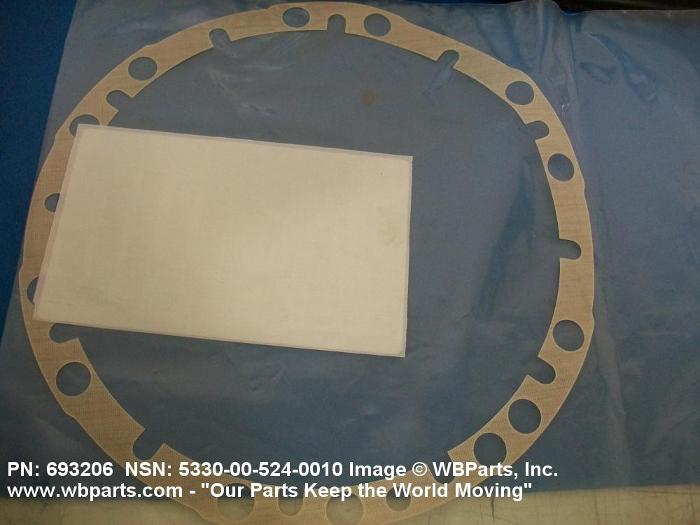

5330-00-524-0010 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 215-55300-5, 6865223, 693206, 5330-00-524-0010, 00-524-0010, 5330005240010, 215553005, 005240010
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUN 1969 | 00-524-0010 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-00-524-0010
Demand History | NSN 5330-00-524-0010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-524-0010 | 2025-10-282 | 79 | DIBBS |
| 5330-00-524-0010 | 2025-09-247 | 79 | DIBBS |
| 5330-00-524-0010 | 2025-08-224 | 79 | DIBBS |
| 5330-00-524-0010 | 2025-05-128 | 4 | ID |
| 5330-00-524-0010 | 2024-10-295 | 246 | DIBBS |
| 5330-00-524-0010 | 2019-01-09 | 446 | DIBBS |
| 5330-00-524-0010 | 2018-11-308 | 1813 | DIBBS |
| 5330-00-524-0010 | 2018-10-297 | 334 | DIBBS |
| 5330-00-524-0010 | 2018-09-254 | 446 | DIBBS |
| 5330-00-524-0010 | 2018-06-162 | 446 | DIBBS |
| 5330-00-524-0010 | 2018-03-64 | 334 | DIBBS |
| 5330-00-524-0010 | 2017-01-08 | 670 | DIBBS |
| 5330-00-524-0010 | 2016-04-112 | 40 | us |
| 5330-00-524-0010 | 2016-01-03 | 586 | DIBBS |
| 5330-00-524-0010 | 2015-10-278 | 956 | DIBBS |
| 5330-00-524-0010 | 2015-04-103 | 1693 | DIBBS |
| 5330-00-524-0010 | 2014-12-344 | 3389 | DIBBS |
| 693206 | 2012-11-310 | 11 | |
| 5330-00-524-0010 | 2011-09-249 | 5 | Greece |
| 5330-00-524-0010 | 2011-09-248 | 5 | Greece |
| 5330-00-524-0010 | 2009-05-123 | 40 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-524-0010
Related Products | NSN 5330-00-524-0010
Technical Data | NSN 5330-00-524-0010
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.010 INCHES NOMINAL |
| STYLE DESIGNATOR | B35B CIRCULAR WITH TWO BOLT CIRCLES - UNEQUALLY SPACED BOLT HOLES |
| OUTSIDE DIAMETER | 11.063 INCHES MINIMUM AND 11.093 INCHES MAXIMUM |
| APERTURE DIAMETER | 9.500 INCHES MINIMUM AND 9.515 INCHES MAXIMUM |
| FIRST BOLT CIRCLE DIAMETER | 10.000 INCHES NOMINAL |
| SECOND BOLT CIRCLE DIAMETER | 10.250 INCHES NOMINAL |
| SMALLEST BOLT HOLE DIAMETER | 0.406 INCHES NOMINAL |
| LARGEST BOLT HOLE DIAMETER | 0.609 INCHES NOMINAL |
| SMALLEST BOLT HOLE QUANTITY | 12 |
| LARGEST BOLT HOLE QUANTITY | 12 |
