NSN 5330-00-575-7868 8575469, 00-575-7868, 005757868
Product Details | GASKET
5330-00-575-7868 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 8575469, 5330-00-575-7868, 00-575-7868, 5330005757868, 005757868
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-575-7868 | 04522 ( GASKET ) |

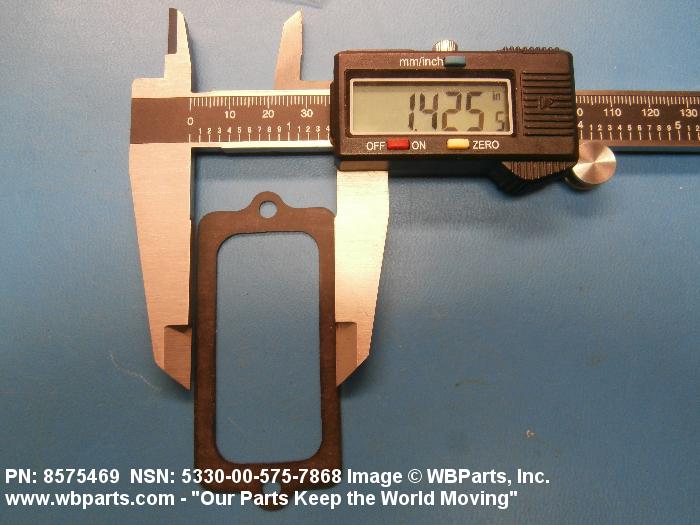

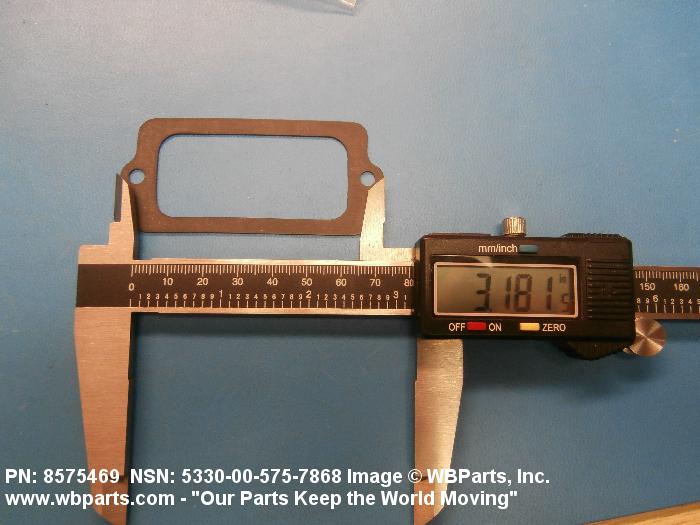

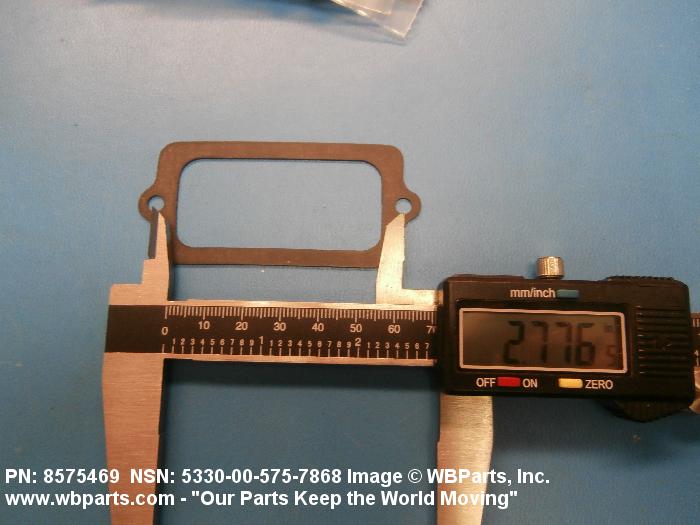

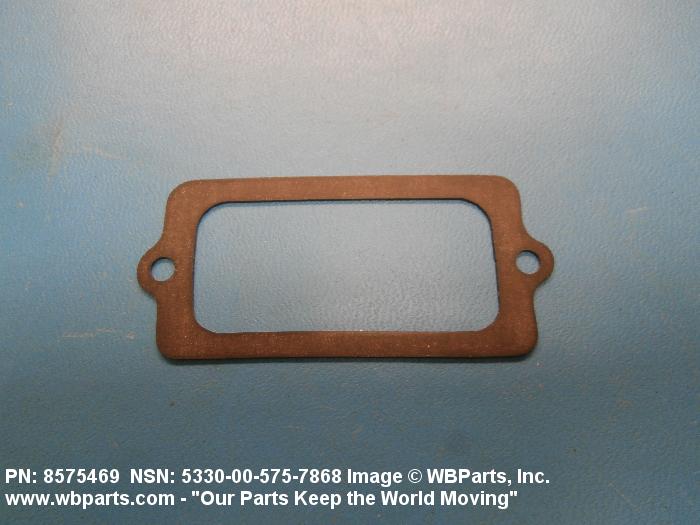

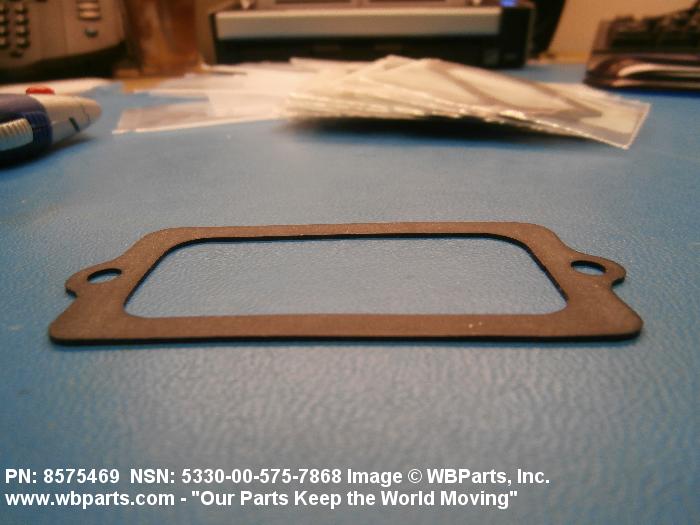

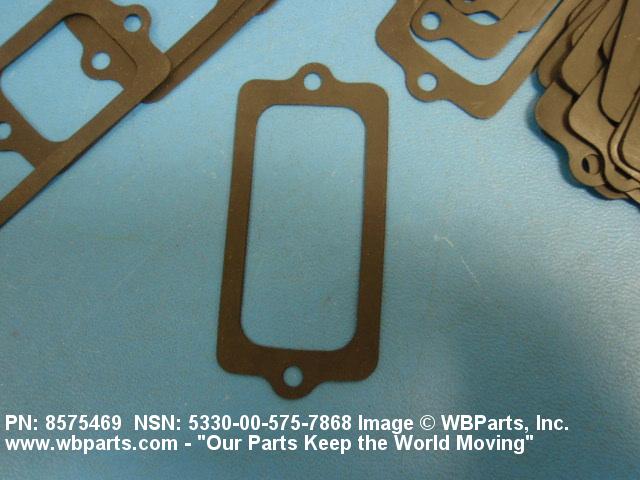

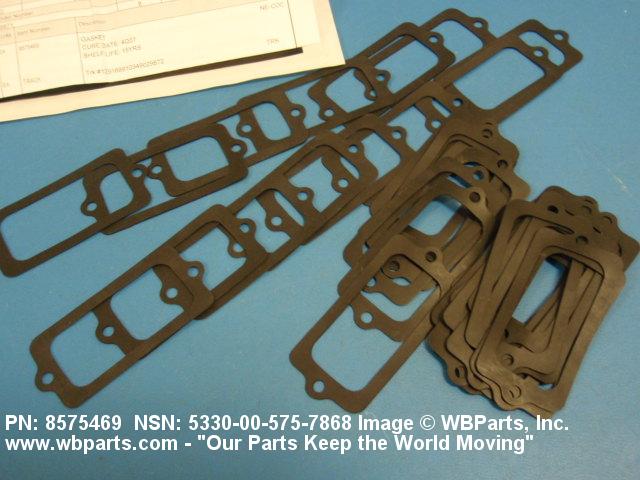

Drawings & Photos | NSN 5330-00-575-7868
Demand History | NSN 5330-00-575-7868
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-575-7868 | 2015-05-133 | 100 | Malaysia |
| 5330-00-575-7868 | 2014-10-303 | 15 | MANUAL |
| 8575469 | 2014-10-303 | 15 | Spain |
| 8575469 | 2014-08-241 | 15 | Spain |
| 5330-00-575-7868 | 2014-05-132 | 18 | United States |
| 8575469 | 2009-10-286 | 40 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-575-7868
Technical Data | NSN 5330-00-575-7868
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ES2726,FSCM 99974 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 40.0 SHORE DUROMETER A NOMINAL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

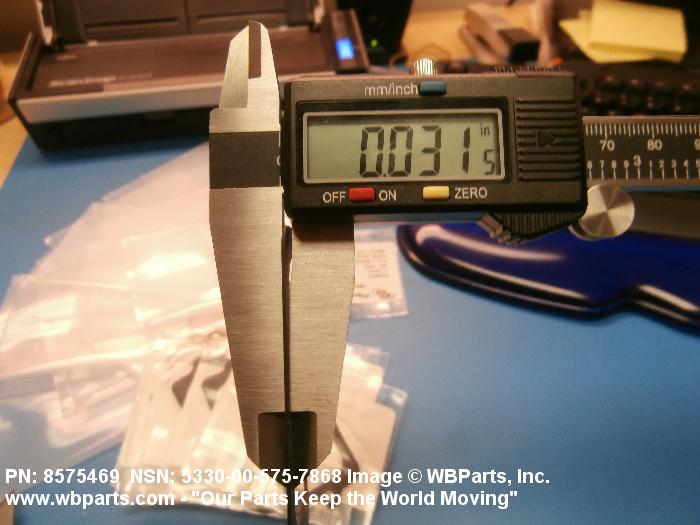

| CROSS-SECTIONAL THICKNESS | 0.031 INCHES NOMINAL |
| MANUFACTURERS CODE | 99974 |
| DESIGN CONTROL REFERENCE | 8575469 |
Restrictions/Controls & Freight Information | NSN 5330-00-575-7868
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
