NSN 5330-00-580-5327 C6859153, C685915-3, H00763.30250
Product Details | PACKING WITH RETAINER
5330-00-580-5327 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: C6859153, C685915-3, H00763.30250, H0076330250, PRP11014, PRP110-1-4, 70815, 8060396, 858167B13, 8813461, 8825180, 01-0296 ITEM NO 40, 010296ITEMNO40, 04-0060 ITEM NO 92, 040060ITEMNO92, 04-0064 ITEM NO 57, 040064ITEMNO57, 110 1-4, 11014, 110-1-4, 21100250, 2110-0250, 211002507377, 2110-0250-7377, 3229911A54, 32-29911A54, 5330-00-580-5327, 00-580-5327, 5330005805327, 005805327
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-580-5327 | 05680 ( PACKING WITH RETAINER ) |

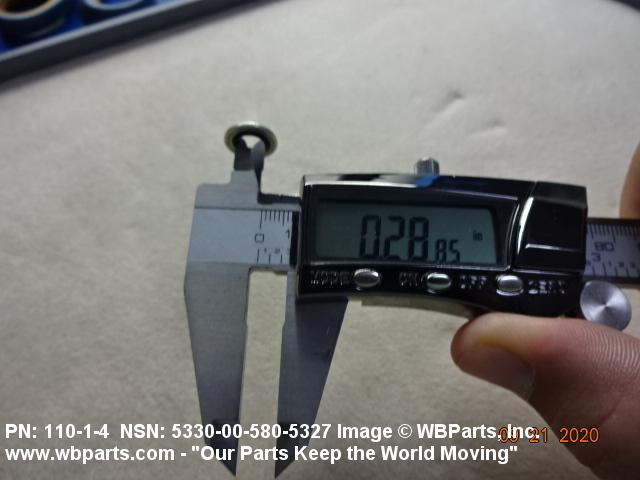

Drawings & Photos | NSN 5330-00-580-5327
Demand History | NSN 5330-00-580-5327
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11014 | 2025-10-274 | 100 | US |
| 11014 | 2025-10-274 | 250 | US |
| 11014 | 2023-11-319 | 100 | US |
| 11014 | 2023-11-319 | 250 | US |
| 11014 | 2023-11-319 | 500 | US |
| 11014 | 2023-09-265 | 100 | US |
| 11014 | 2023-09-265 | 250 | US |
| 11014 | 2023-09-265 | 500 | US |
| 5330-00-580-5327 | 2022-02-47 | 100 | IT |
| 5330-00-580-5327 | 2022-02-39 | 65 | DE |
| 5330-00-580-5327 | 2022-01-31 | 65 | US |
| 5330-00-580-5327 | 2021-09-264 | 5 | us |
| 5330-00-580-5327 | 2021-04-106 | 20 | United States |
| 5330-00-580-5327 | 2020-08-234 | 100 | Mexico |
| 11014 | 2020-08-234 | 120 | United States |
| 11014 | 2020-08-234 | 250 | United States |
| 5330-00-580-5327 | 2020-05-126 | 4000 | United States |
| 11014 | 2019-10-291 | 250 | United States |
| 5330-00-580-5327 | 2019-06-168 | 25 | US |
| 5330-00-580-5327 | 2019-04-94 | 4 | US |
| 5330-00-580-5327 | 2019-02-50 | 250 | United States |
| 5330-00-580-5327 | 2019-02-50 | 500 | United States |
| 5330-00-580-5327 | 2019-02-50 | 1000 | United States |
| 5330-00-580-5327 | 2018-12-346 | 250 | United States |
| 11014 | 2014-05-141 | 6 | United States |
| PRP11014 | 2010-12-350 | 2 | CN |
| PRP11014 | 2008-06-168 | 10 | Brazil |
Cross Reference | NSN 5330-00-580-5327
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-0296 ITEM NO 40 | 20019 | WARD LEONARD ELECTRIC CO INC |
| 04-0060 ITEM NO 92 | 20019 | WARD LEONARD ELECTRIC CO INC |
| 04-0064 ITEM NO 57 | 20019 | WARD LEONARD ELECTRIC CO INC |
| 110 1-4 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 110 1-4 | 48610 | PRECISION PRODUCTS INC |
| 110 1-4 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| 110 1-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 110-1-4 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 2110-0250 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 2110-0250 | D7040 | TRELLEBORG SEALING SOLUTIONSGERMANY GMBH |
| 2110-0250-7377 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| 2110-0250-7377 | D7040 | TRELLEBORG SEALING SOLUTIONSGERMANY GMBH |
| 32-29911A54 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 32-29911A54 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 70815 | 15434 | CUMMINS INC. |
| 8060396 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 858167B13 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8813461 | 19203 | PICATINNY ARSENAL |
| 8825180 | 19203 | PICATINNY ARSENAL |
| C685915-3 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| H00763.30250 | 1K209 | PARKER HANNIFIN CORP ENGINEERED POLYMER SYSTEMS DIV |
| H00763.30250 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
| PRP110-1-4 | 25184 | PARKER HANNIFIN CORPORATION DIV O-RING DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-580-5327
Technical Data | NSN 5330-00-580-5327
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC PACKING STEEL RETAINER |
| SURFACE TREATMENT | CADMIUM RETAINER |
| CONSTRUCTION | ONE-PIECE |
| OUTSIDE DIAMETER | 0.516 INCHES NOMINAL |
| PACKING INSIDE DIAMETER | 0.280 INCHES NOMINAL |
| RETAINER THICKNESS | 0.054 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-580-5327
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
