NSN 5330-00-599-7187 B6107, 8328050, 10599500-1
Product Details | PLAIN SEAL
5330-00-599-7187 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: B6107, 8328050, 10599500-1, 1270137, 240398, 5330-00-599-7187, 00-599-7187, 5330005997187, 105995001, 005997187
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-599-7187 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-00-599-7187
Cross Reference | NSN 5330-00-599-7187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10599500-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10599500-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 1270137 | 12204 | DAIMLER CHRYSLER |
| 240398 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
| 8328050 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| B6107 | 73740 | TRW INC TRW COMMERCIAL STEERING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-599-7187
Technical Data | NSN 5330-00-599-7187
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC SEALING ELEMENT |
| CONSTRUCTION | LAMINATED |

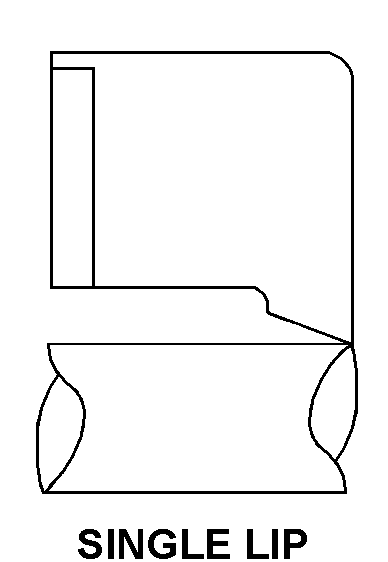

| CROSS-SECTIONAL SHAPE STYLE | L4 SINGLE LIP |
| SEAL WIDTH | 0.187 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 0.858 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 1.386 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-599-7187
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
