NSN 5330-00-623-6451 11M34, 00-623-6451, 006236451
Product Details | NONMETALLIC ANGLE SEAL
5330-00-623-6451 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: 11M34, 5330-00-623-6451, 00-623-6451, 5330006236451, 006236451
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 MAR 1975 | 00-623-6451 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-00-623-6451
Cross Reference | NSN 5330-00-623-6451
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11M34 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-623-6451
Technical Data | NSN 5330-00-623-6451
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6855,CL 1,GR 40 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |
| RIGHT/BASE FLANGE HEIGHT | 0.900 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 0.625 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.065 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.090 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.160 INCHES NOMINAL |
| INSIDE ANGLE | 95.0 DEGREES NOMINAL |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| LEFT TIP STYLE | J1A SQUARE END |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |

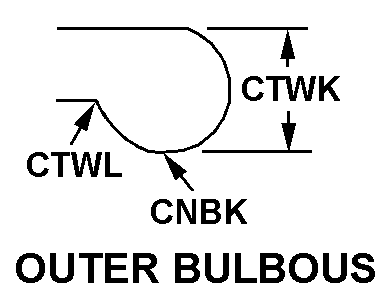

| RIGHT TIP STYLE | J7B OUTER BULBOUS |
| SECOND TIP WIDTH | 0.090 INCHES NOMINAL |
| SECOND TIP FILLET RADIUS | 0.040 INCHES NOMINAL |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 11M34 |
Restrictions/Controls & Freight Information | NSN 5330-00-623-6451
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
