NSN 5330-00-625-8560 3739721, 373972-1, 00-625-8560
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-625-8560 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 3739721, 373972-1, 5330-00-625-8560, 00-625-8560, 5330006258560, 006258560
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-625-8560 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-00-625-8560
Demand History | NSN 5330-00-625-8560
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-625-8560 | 2025-03-87 | 228 | DIBBS |
| 5330-00-625-8560 | 2025-03-83 | 228 | DIBBS |
| 5330-00-625-8560 | 2025-03-72 | 228 | DIBBS |
| 5330-00-625-8560 | 2025-03-72 | 228 | DIBBS |
| 5330-00-625-8560 | 2024-11-318 | 228 | DIBBS |
| 5330-00-625-8560 | 2024-11-312 | 228 | DIBBS |
| 5330-00-625-8560 | 2024-10-301 | 228 | DIBBS |
| 5330-00-625-8560 | 2023-08-215 | 228 | DIBBS |
| 5330-00-625-8560 | 2023-03-69 | 228 | DIBBS |
| 5330-00-625-8560 | 2023-02-58 | 228 | DIBBS |
| 5330-00-625-8560 | 2023-02-46 | 228 | DIBBS |
| 3739721 | 2022-08-214 | 1 | United States |
| 5330-00-625-8560 | 2020-12-336 | 228 | DIBBS |
| 5330-00-625-8560 | 2018-08-225 | 228 | DIBBS |
| 5330-00-625-8560 | 2018-08-217 | 228 | DIBBS |
| 5330-00-625-8560 | 2018-05-129 | 228 | DIBBS |
| 5330-00-625-8560 | 2018-05-121 | 228 | DIBBS |
| 5330-00-625-8560 | 2015-12-342 | 12 | Malaysia |
| 5330-00-625-8560 | 2015-02-47 | 228 | DIBBS |
| 5330-00-625-8560 | 2015-01-26 | 125 | DIBBS |
| 5330-00-625-8560 | 2015-01-26 | 100 | DIBBS |
| 5330-00-625-8560 | 2009-11-324 | 228 | DIBBS |
| 5330-00-625-8560 | 2009-06-152 | 100 | DIBBS |
Cross Reference | NSN 5330-00-625-8560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 373972-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-00-625-8560
Related Products | NSN 5330-00-625-8560
Technical Data | NSN 5330-00-625-8560
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |

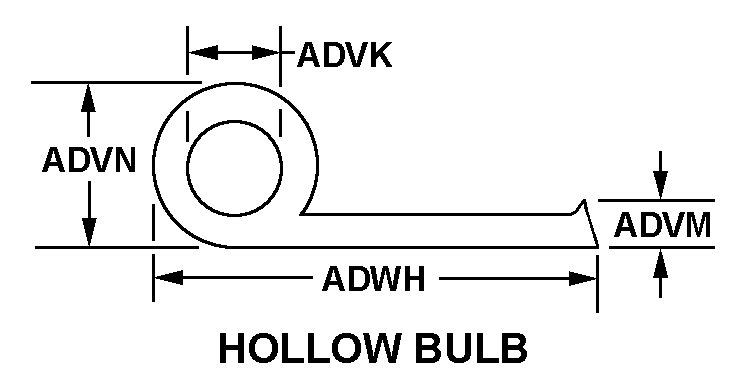

| CROSS-SECTIONAL SHAPE STYLE | H6 HOLLOW BULB |
| CROSS-SECTIONAL HEIGHT | 1.000 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.875 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A4A NON-CIRCULAR |
| APERTURE WIDTH | 29.250 INCHES NOMINAL |
| APERTURE LENGTH | 50.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 373972-1 |
Restrictions/Controls & Freight Information | NSN 5330-00-625-8560
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB7 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-625-8560
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LG | TG:C-130 HERCULES |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
