NSN 5330-00-629-3902 341118, 00-629-3902, 006293902
Product Details | PLAIN SEAL
5330-00-629-3902 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: 341118, 5330-00-629-3902, 00-629-3902, 5330006293902, 006293902
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-629-3902 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-00-629-3902
Demand History | NSN 5330-00-629-3902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-629-3902 | 2021-04-107 | 2 | US |
Cross Reference | NSN 5330-00-629-3902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 341118 | 76680 | FEDERAL-MOGUL CORP CHASSIS PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-629-3902
Technical Data | NSN 5330-00-629-3902
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INTERNALLY MOLDED-IN REINFORCEMENT RUBBER SYNTHETIC SEALING ELEMENT |
| CONSTRUCTION | SOLID |

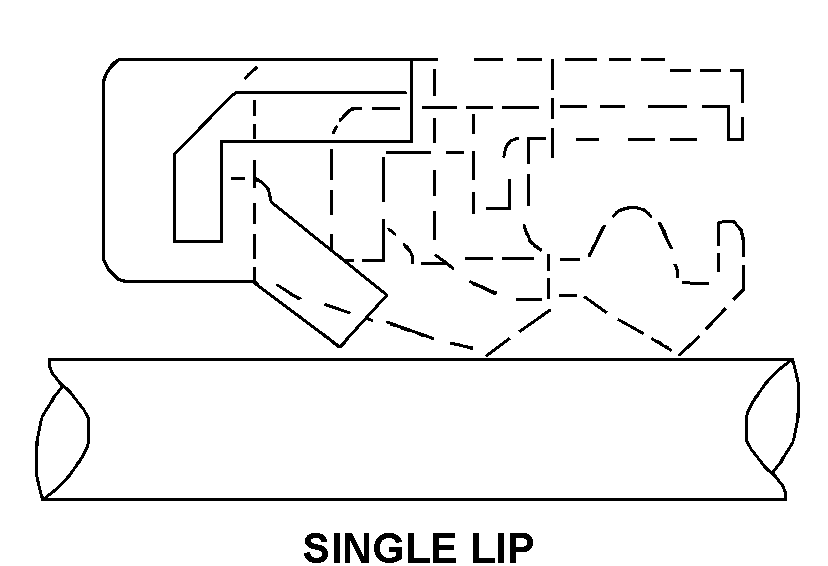

| CROSS-SECTIONAL SHAPE STYLE | L7 SINGLE LIP |
| SEAL WIDTH | 0.250 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.875 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 2.843 INCHES NOMINAL |
| III FSC APPLICATION DATA | LANDING GEAR,WHEEL |
| MANUFACTURERS CODE | 76680 |
| DESIGN CONTROL REFERENCE | 341118 |
Restrictions/Controls & Freight Information | NSN 5330-00-629-3902
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-00-629-3902
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9I | Navy-owned stocks of consumable material managed by the Air Force within the Odgen Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | JCD | |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
