NSN 5330-00-689-7666 S611026017, S6110-26017, 00-689-7666
Product Details | PREFORMED MECHANICAL FELT
5330-00-689-7666 An item manufactured to predetermined dimensions. It is either a precut strip or an item of various peripheral shapes and may contain bolt hole(s). It is used as a seal, wiper, mounting pad or for similar purposes. Excludes GASKET and PACKING PREFORMED.
Part Alternates: S611026017, S6110-26017, 5330-00-689-7666, 00-689-7666, 5330006897666, 006897666
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-689-7666 | 18443 ( FELT, MECHANICAL, PREFORMED ) |

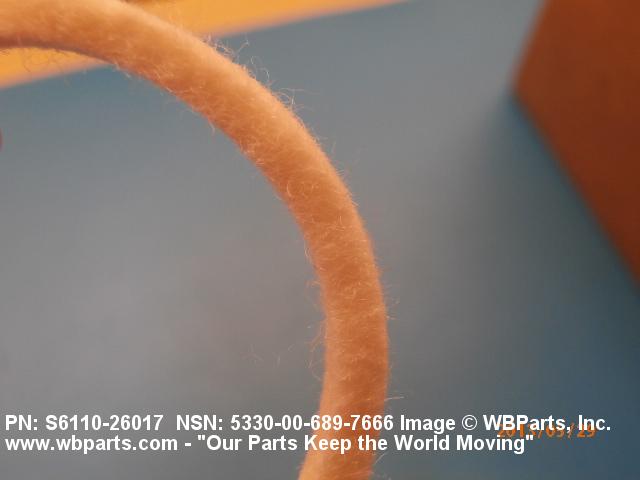

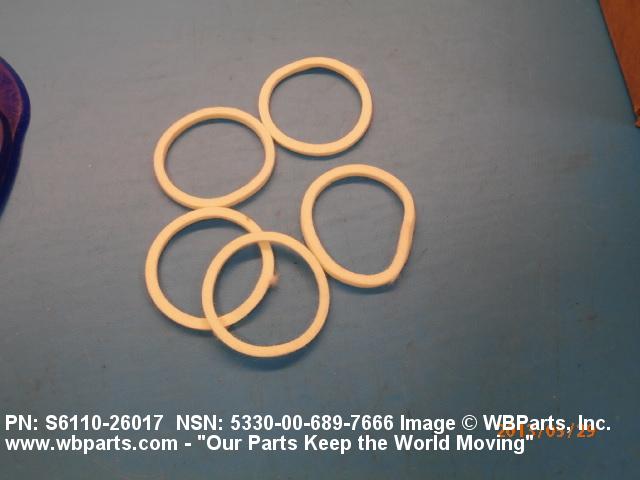

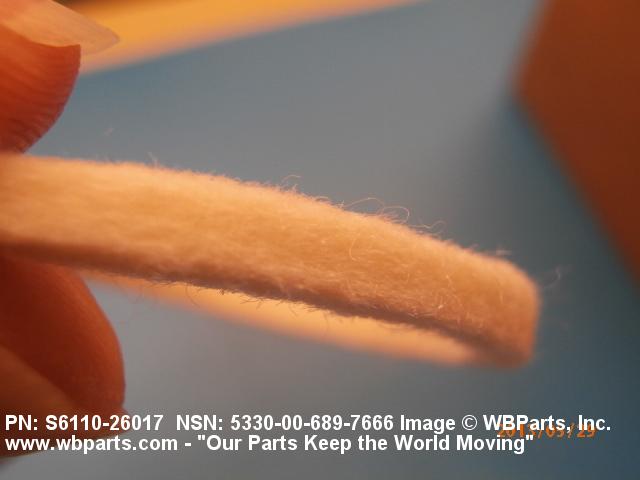

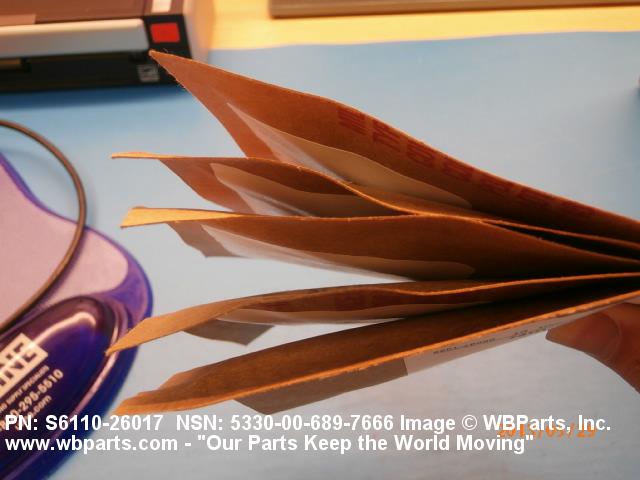

Drawings & Photos | NSN 5330-00-689-7666
Demand History | NSN 5330-00-689-7666
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-689-7666 | 2019-02-42 | 99 | India |
| 5330-00-689-7666 | 2019-02-42 | 99 | India |
| 5330-00-689-7666 | 2017-02-43 | 9 | DIBBS |
| 5330-00-689-7666 | 2013-07-187 | 8 | DIBBS |
| S611026017 | 2013-04-109 | 10 | Canada |
| S611026017 | 2013-04-108 | 10 | Canada |
Cross Reference | NSN 5330-00-689-7666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6110-26017 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-689-7666
Technical Data | NSN 5330-00-689-7666
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOL COMP 16R1 AND COTTON OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-F-5656 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| LUBRICATION MATERIAL | OIL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | G3 RECTANGULAR |

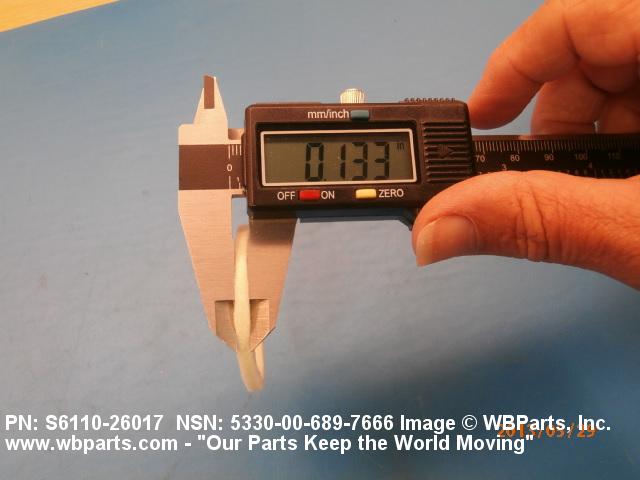

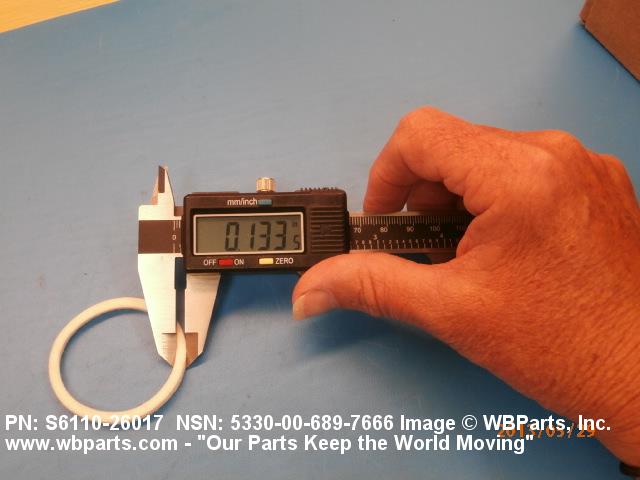

| CROSS-SECTIONAL HEIGHT | 0.133 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |

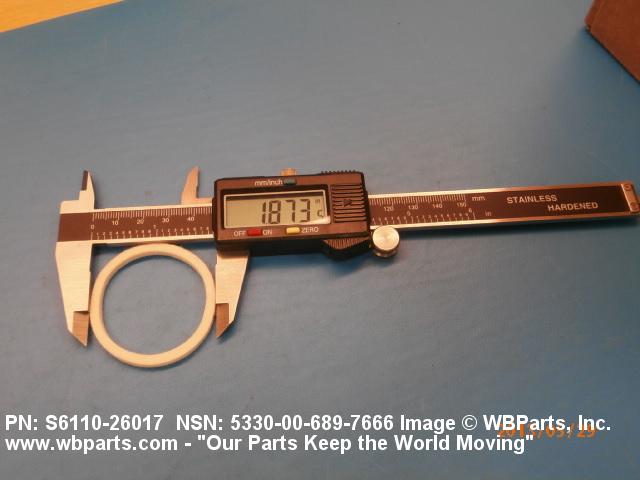

| OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |

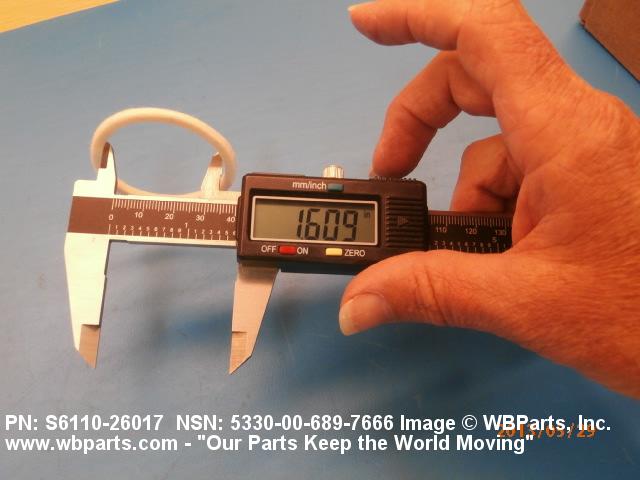

| APERTURE DIAMETER | 1.609 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6110-26017 |
Restrictions/Controls & Freight Information | NSN 5330-00-689-7666
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019500 | AUTO SHOCK ABSORBERS R PARTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-689-7666
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
