NSN 5330-00-757-3969 3011854, 00-757-3969, 007573969
Product Details | GASKET
5330-00-757-3969 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 3011854, 5330-00-757-3969, 00-757-3969, 5330007573969, 007573969
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08-MAR-68 | 00-757-3969 | 04522 ( GASKET ) |

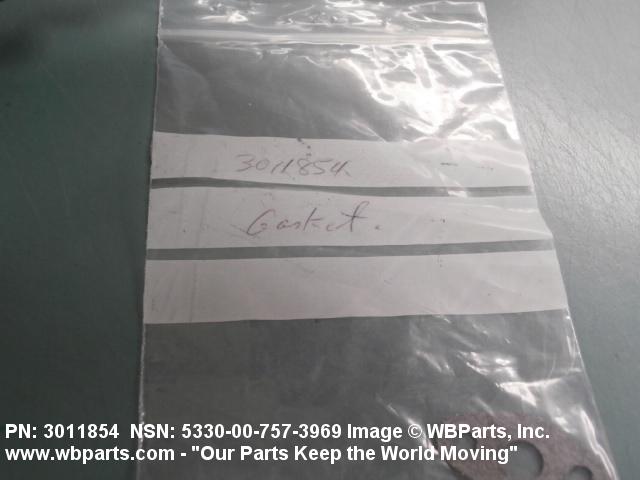

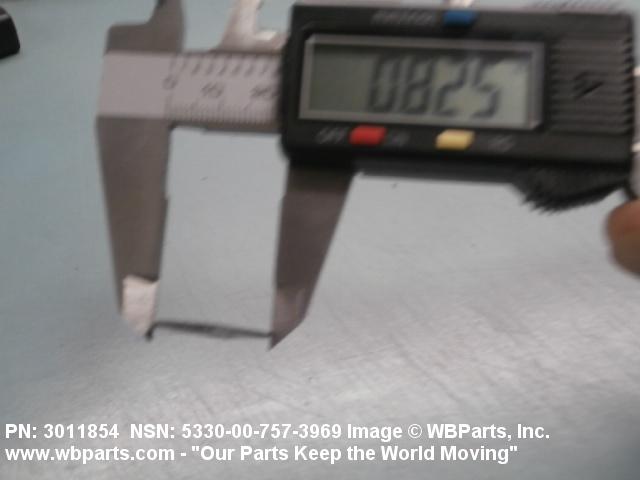

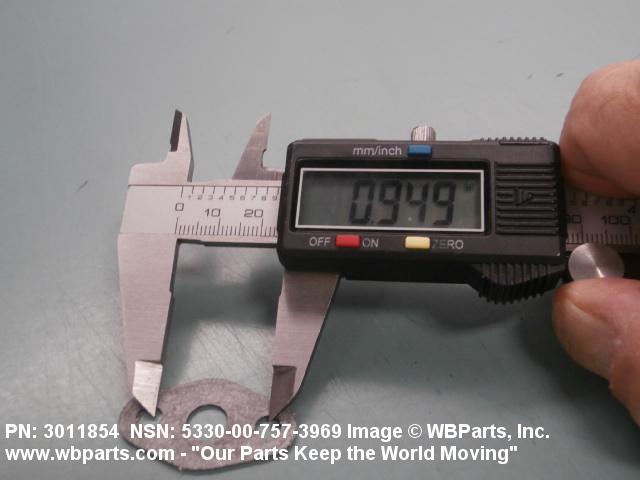

Drawings & Photos | NSN 5330-00-757-3969
Demand History | NSN 5330-00-757-3969
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-757-3969 | 2019-10-274 | 4 | United States |
| 5330-00-757-3969 | 2014-05-137 | 1 | United States |
Cross Reference | NSN 5330-00-757-3969
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-757-3969
Technical Data | NSN 5330-00-757-3969
| Characteristic | Specifications |
|---|---|
| MATERIAL | ASBESTOS AND RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3232 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

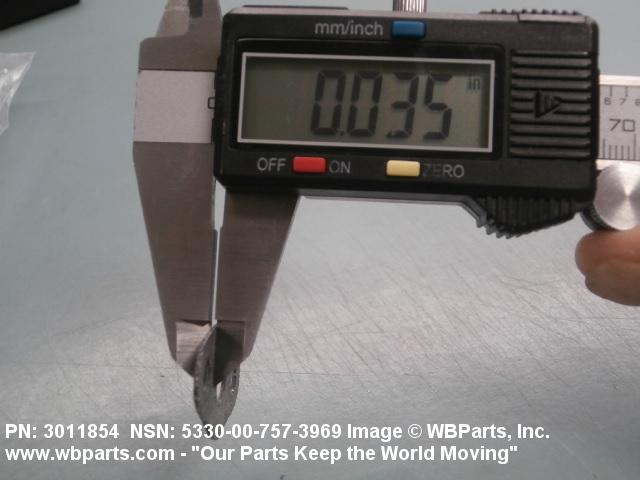

| CROSS-SECTIONAL THICKNESS | 0.032 INCHES NOMINAL |
| STYLE DESIGNATOR | B13A NON-CIRCULAR |
| HOLE DIAMETER | 0.220 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 0.982 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| APERTURE DIAMETER | 0.350 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.260 INCHES NOMINAL |
| SIDE RADIUS FROM GASKET CENTER | 0.400 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 5330-00-757-3969
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
