NSN 5330-00-767-6896 AT596248, AT596-24-8, AT598A248

5330-00-767-6896

Part Alternates: AT596248, AT596-24-8, AT598A248, AT598A24-8, 5330-00-767-6896, 00-767-6896, 5330007676896, 007676896

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-767-6896	77777 ( )

Part Number	Request Date	QTY	Origin
AT598A248	2023-09-251	53	United States
5330-00-767-6896	2023-08-241	53	US
AT596-24-8	2020-10-282	4	DIBBS
ATI596-24-8	2020-10-282	4	DIBBS
AT596-24-8	2020-02-35	4	DIBBS
5330-00-767-6896	2014-07-182	74	US
5330-00-767-6896	2013-10-274	1	US
5330-00-767-6896	2013-10-274	1	US
5330-00-767-6896	2013-05-148	25	US
5330-00-767-6896	2013-05-144	6	US
AT596248	2010-09-245	300	CA
5330-00-767-6896	2010-07-196	102	United States
5330-00-767-6896	2010-06-176	51	US
5330-00-767-6896	2009-08-215	1	US
AT598A248	2009-04-105	20	Canada
AT598A248	2009-02-54	175	Turkey
AT598A248	2009-02-42	675	Turkey

Part Number	Cage Code	Manufacturer
AT596-24-8	00784	SNAP-ON INCORPORATED DBA SNAP-ON TOOLS DIV SNAP-ON
AT596-24-8	55719	IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL
AT598A24-8	00784	SNAP-ON INCORPORATED DBA SNAP-ON TOOLS DIV SNAP-ON

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5330-00-767-6896

Compare

5330-00-767-7103, 5330-00-767-7288, 5330-00-767-7363, 5330-00-767-7393, 5330-00-767-7394

Characteristic	Specifications

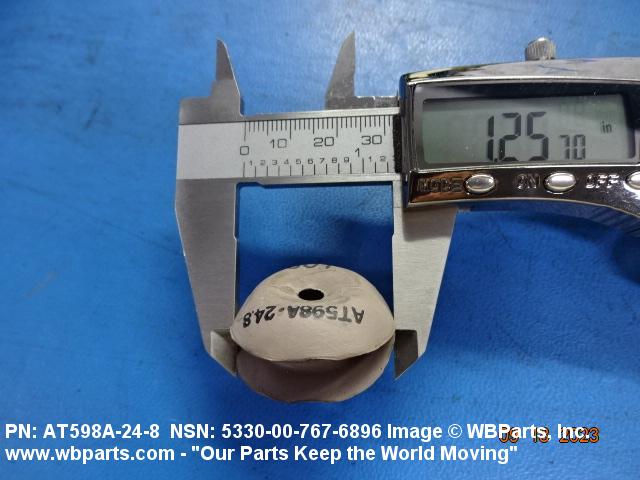

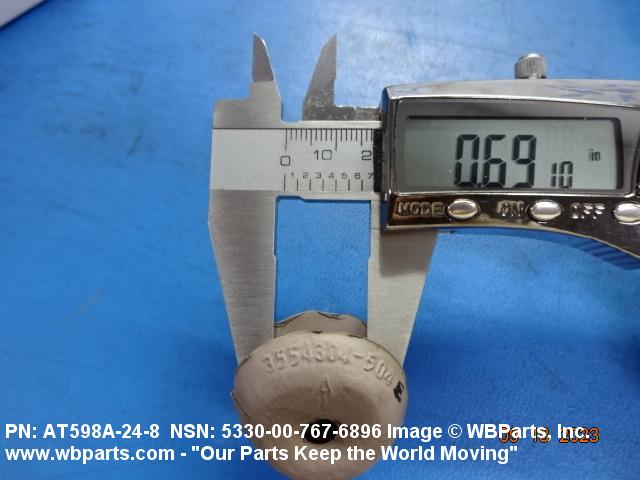

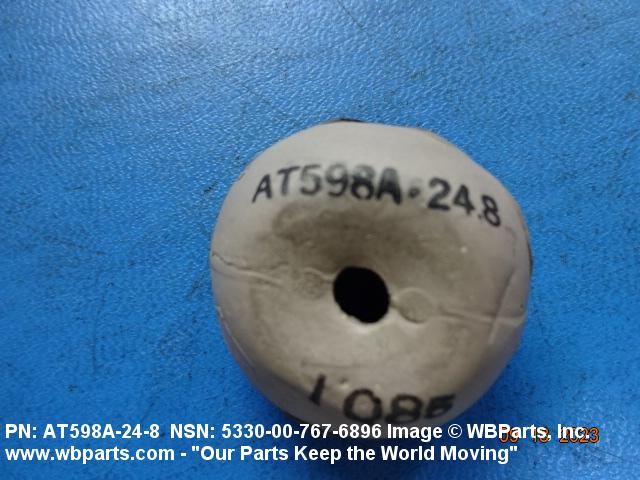

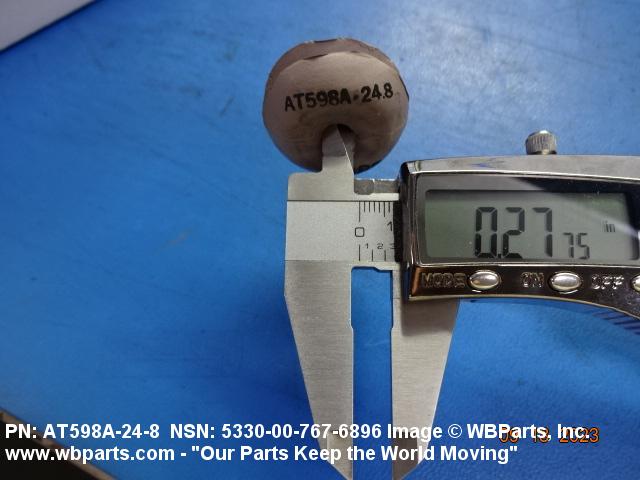

GENERAL CHARACTERISTICS ITEM DESCRIPTION	SEAL AND GROMMETS,1 13/32 IN. LG,1 1/8 IN. W
MANUFACTURERS CODE	00784
DESIGN CONTROL REFERENCE	AT596-24-8

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
