NSN 5330-00-778-2736 NAS159803Y, NAS1598D3Y, NAS1598DY3
Product Details | PACKING WITH RETAINER
5330-00-778-2736 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS159803Y, NAS1598D3Y, NAS1598DY3, 60041510, 600-415-10, 65041510, 650-415-10, 5330-00-778-2736, 00-778-2736, 5330007782736, 007782736
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-778-2736 | 05680 ( PACKING WITH RETAINER ) |

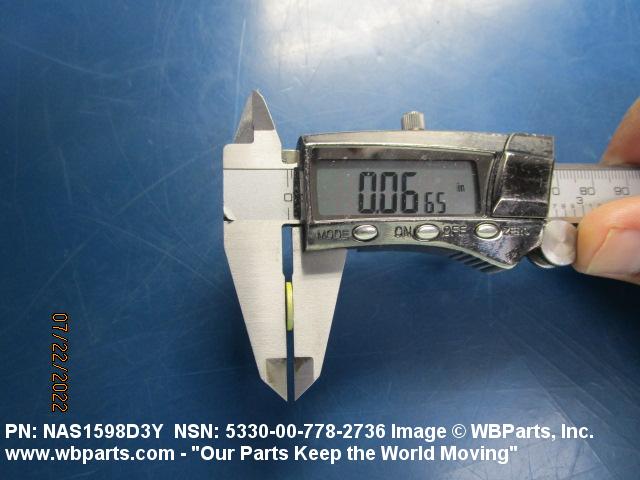

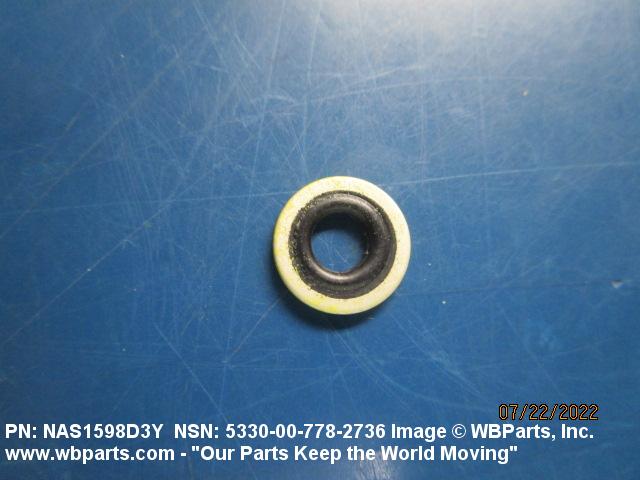

Drawings & Photos | NSN 5330-00-778-2736
Demand History | NSN 5330-00-778-2736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-778-2736 | 2022-11-334 | 10 | US |
| NAS1598D3Y | 2022-07-182 | 100 | us |
| NAS1598D3Y | 2022-05-124 | 50 | us |
| 5330-00-778-2736 | 2022-05-124 | 100 | US |
| 5330-00-778-2736 | 2017-04-107 | 14 | MY |
| 5330-00-778-2736 | 2014-12-339 | 44 | Malaysia |
| 5330-00-778-2736 | 2014-12-339 | 44 | Malaysia |
| NAS1598D3Y | 2014-11-330 | 44 | MY |
| NAS1598D3Y | 2013-08-229 | 2100 | Canada |
| NAS1598D3Y | 2011-02-55 | 11600 | US |
| NAS1598D3Y | 2007-09-262 | 200 | US |
Cross Reference | NSN 5330-00-778-2736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600-415-10 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| 600-415-10 | C0308 | O-RING DIVISION EUROPE |
| 650-415-10 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| NAS159803Y | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1598D3Y | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1598DY3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-778-2736
Technical Data | NSN 5330-00-778-2736
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC PACKING ALUMINUM ALLOY RETAINER |
| SURFACE TREATMENT | ANODIZE RETAINER |
| CONSTRUCTION | ONE-PIECE |

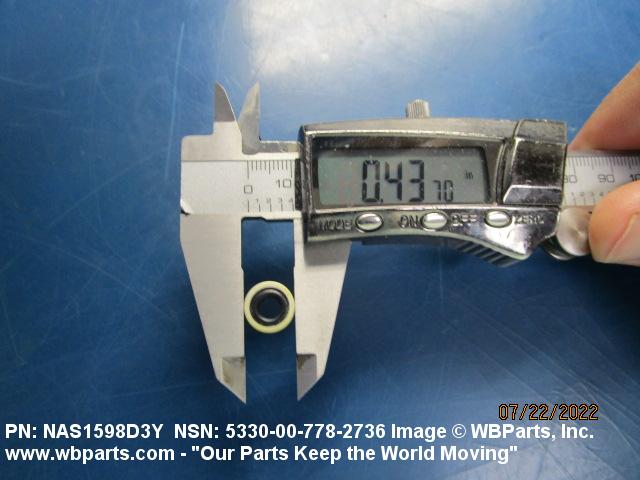

| OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |
| PACKING INSIDE DIAMETER | 0.180 INCHES NOMINAL |

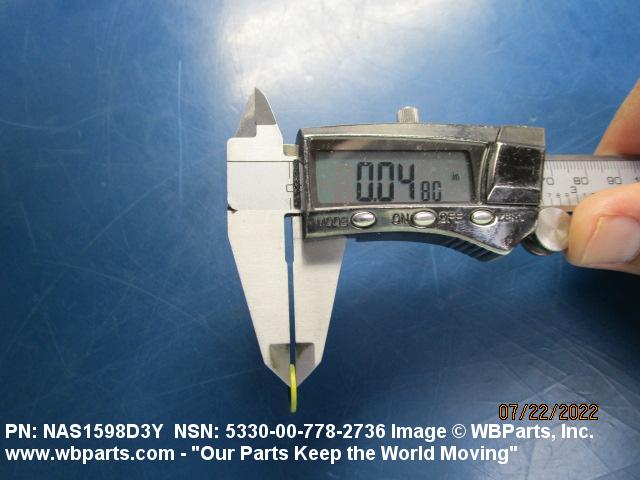

| RETAINER THICKNESS | 0.050 INCHES NOMINAL |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.072 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-778-2736
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-00-778-2736
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
