NSN 5330-00-807-0314 1668099PC4, 241-5750405 PC0, 2415750405PC0
Product Details | PLAIN SEAL
5330-00-807-0314 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: 1668099PC4, 241-5750405 PC0, 2415750405PC0, 766355PC4, 9514LPD, 9514LUP, 9514LUPH5/L16, 9514LUPH5L16, 5330-00-807-0314, 00-807-0314, 5330008070314, 008070314
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-807-0314 | 04250 ( SEAL, PLAIN ) |

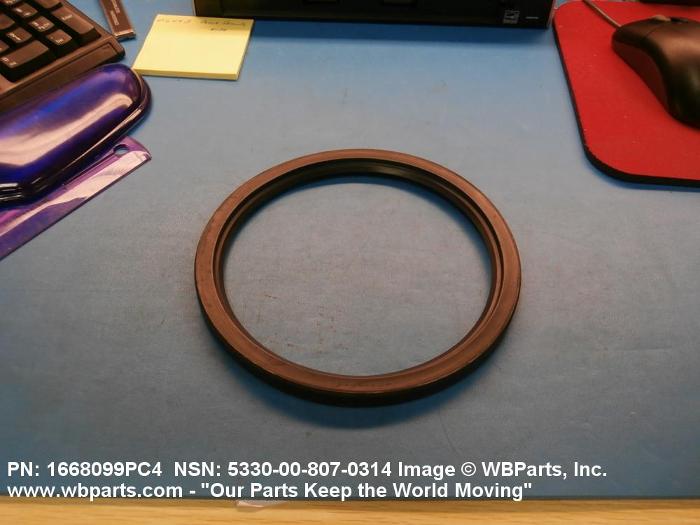

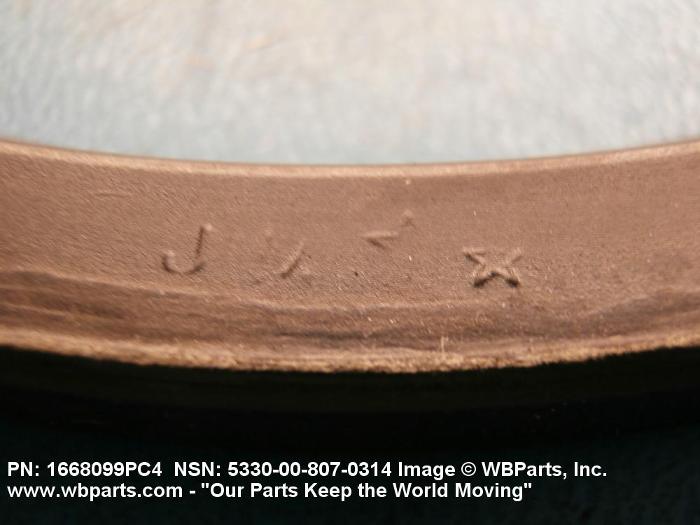

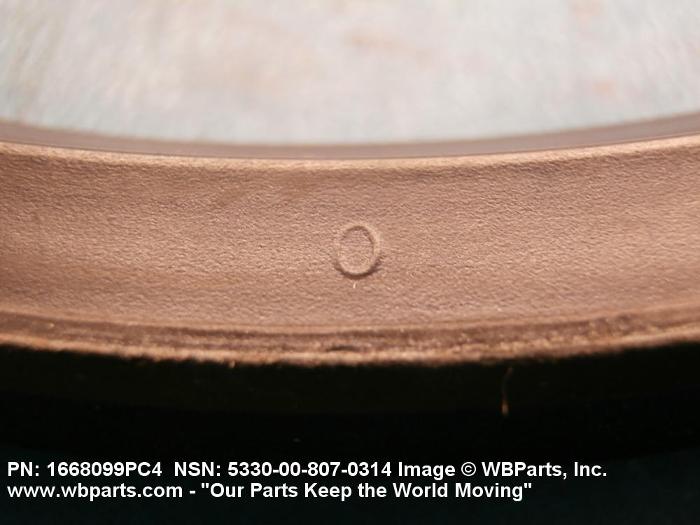

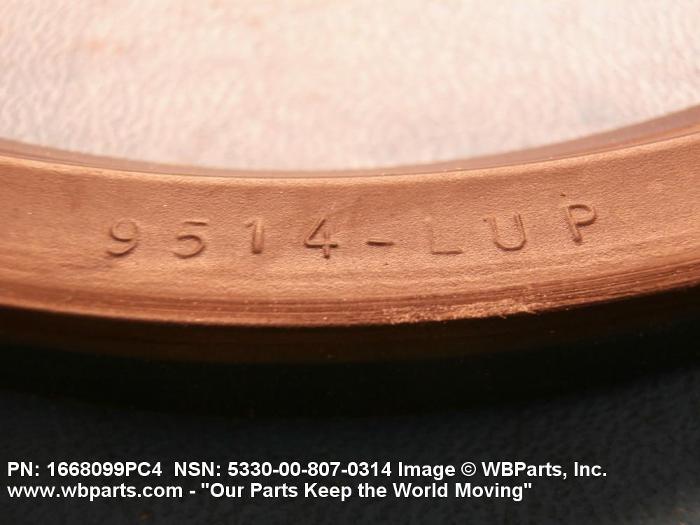

Drawings & Photos | NSN 5330-00-807-0314
Demand History | NSN 5330-00-807-0314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-807-0314 | 2019-11-326 | 20 | US |
| 5330-00-807-0314 | 2013-03-84 | 15 | United States |
| 9514LUPH5L16 | 2013-02-32 | 15 | United States |
Cross Reference | NSN 5330-00-807-0314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1668099PC4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 241-5750405 PC0 | 12285 | CINCINNATI GEAR CO THE |
| 766355PC4 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 9514LPD | 75165 | JOHNS MANVILLE INTL |
| 9514LUP | 75165 | JOHNS MANVILLE INTL |
| 9514LUPH5/L16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-807-0314
Technical Data | NSN 5330-00-807-0314
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER NATURAL OR RUBBER SYNTHETIC SEALING ELEMENT |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | L9 SINGLE LIP |
| SEAL WIDTH | 0.407 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| ACCOMMODATED SHAFT DIAMETER | 5.995 INCHES MINIMUM AND 6.005 INCHES MAXIMUM |
| HOUSING BORE DIAMETER | 6.995 INCHES MINIMUM AND 7.005 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5330-00-807-0314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-807-0314
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
