NSN 5330-00-821-0778 5975221884649PC11, 597-522-1884649PC11, 597522188H649PC11
Product Details | PACKING ASSEMBLY
5330-00-821-0778 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: 5975221884649PC11, 597-522-1884649PC11, 597522188H649PC11, 597-522-188H649PC11, 976434X3PC11, 976-434X3PC11, 5330-00-821-0778, 00-821-0778, 5330008210778, 008210778
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-821-0778 | 07961 ( PACKING ASSEMBLY ) |

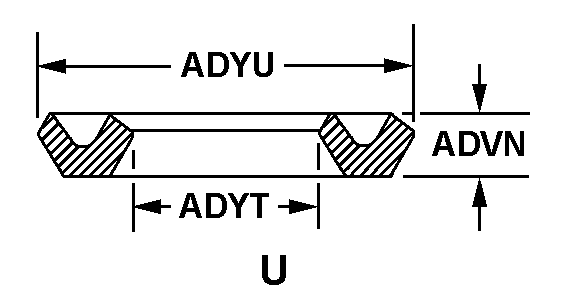

Drawings & Photos | NSN 5330-00-821-0778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-821-0778
Technical Data | NSN 5330-00-821-0778
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEATHER AND RUBBER SYNTHETIC BOTTOM RING LEATHER AND RUBBER POLYETHER URETHANE CLASS EU INTERMEDIATE RING LEATHER AND RUBBER SYNTHETIC TOP RING |
| CROSS-SECTIONAL SHAPE STYLE | D77 U BOTTOM RING |
| INTERMEDIATE RING QUANTITY | 4 |
| JOINT TYPE | SCARF-PERIPHERAL BOTTOM RING SCARF-PERIPHERAL INTERMEDIATE RING SCARF-PERIPHERAL TOP RING |
| OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| INSIDE DIAMETER | 2.750 INCHES NOMINAL |
| HEIGHT | 1.125 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-821-0778
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-821-0778
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
