NSN 5330-00-827-2815 MS5200012, MS52000-12, A5248112
Product Details | GASKET
5330-00-827-2815 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: MS5200012, MS52000-12, A5248112, A52481-12, AA52481, A-A-52481, AA5248112, A-A-52481-12, 8436868-10, 1127-37-139, 3401512, 34015-12, 5330-00-827-2815, 00-827-2815, 5330008272815, 112737139, 843686810, 008272815
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 1967 | 00-827-2815 | 04522 ( GASKET ) |

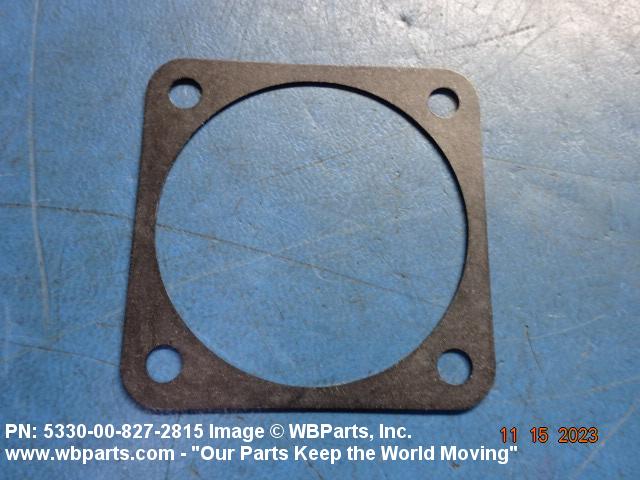

Drawings & Photos | NSN 5330-00-827-2815
Demand History | NSN 5330-00-827-2815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5200012 | 2024-09-270 | 65 | Israel |
| 5330-00-827-2815 | 2024-02-39 | 484 | DIBBS |
| 5330-00-827-2815 | 2023-09-262 | 152 | United States |
| 5330-00-827-2815 | 2023-09-262 | 152 | United States |
| 5330-00-827-2815 | 2023-09-262 | 152 | United States |
| 5330-00-827-2815 | 2020-03-75 | 500 | DIBBS |
| 5330-00-827-2815 | 2020-03-71 | 130 | US |
| 5330-00-827-2815 | 2020-01-21 | 300 | DIBBS |
| 5330-00-827-2815 | 2019-07-212 | 595 | DIBBS |
| 5330-00-827-2815 | 2018-01-02 | 322 | DIBBS |
| A5248112 | 2011-05-124 | 100 | US |
| A5248112 | 2011-05-124 | 200 | US |
| A5248112 | 2011-05-124 | 450 | US |
| AA5248112 | 2011-04-91 | 11 | us |
| A5248112 | 2011-03-87 | 500 | Canada |
| 5330-00-827-2815 | 2011-03-73 | 200 | CA |
| 5330-00-827-2815 | 2010-09-252 | 351 | DIBBS |
| AA5248112 | 2009-05-125 | 4 | US |
| AA5248112 | 2008-04-121 | 20 | us |
Cross Reference | NSN 5330-00-827-2815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1127-37-139 | A0199 | OTO MELARA SPA |
| 3113748C1 | 338X5 | NAVISTAR DEFENSE LLC |
| 34015-12 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 8436868-10 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| A-A-52481 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-52481-12 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| A52481-12 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A52481-12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS52000-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-827-2815
Technical Data | NSN 5330-00-827-2815
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 2BC15C1E3 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 75.0 SHORE DUROMETER A MINIMUM AND 85.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

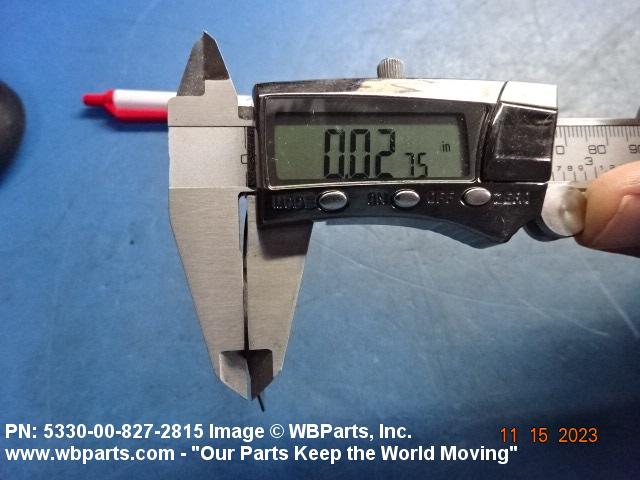

| CROSS-SECTIONAL THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| STYLE DESIGNATOR | B18B NON-CIRCULAR |

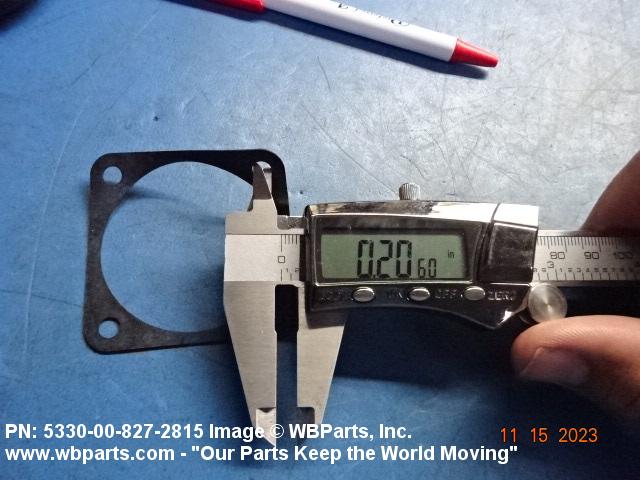

| HOLE DIAMETER | 0.209 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |

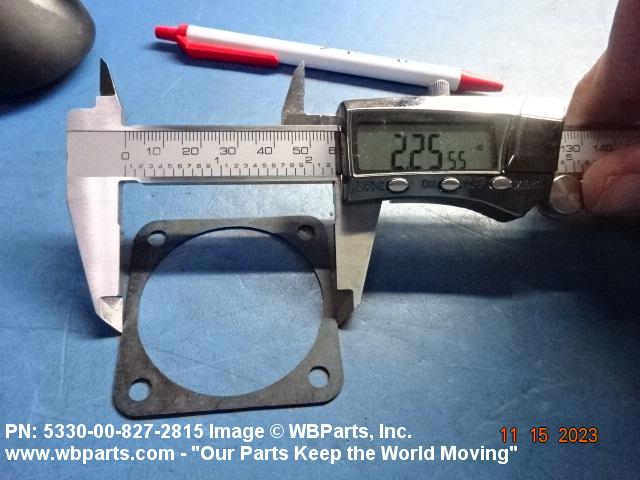

| OVERALL LENGTH | 2.250 INCHES MINIMUM AND 2.266 INCHES MAXIMUM |

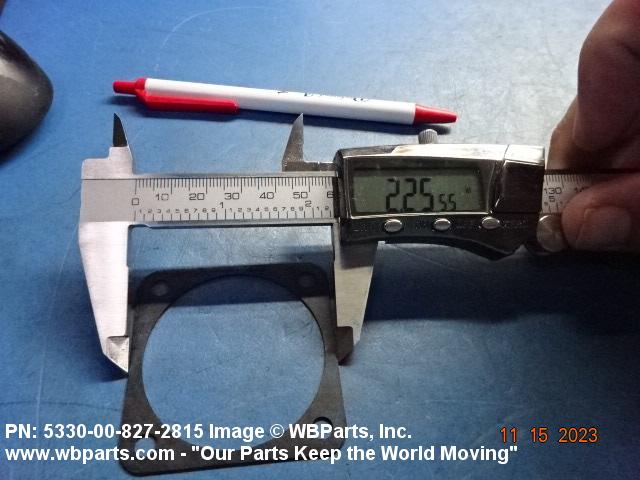

| OVERALL WIDTH | 2.250 INCHES MINIMUM AND 2.266 INCHES MAXIMUM |

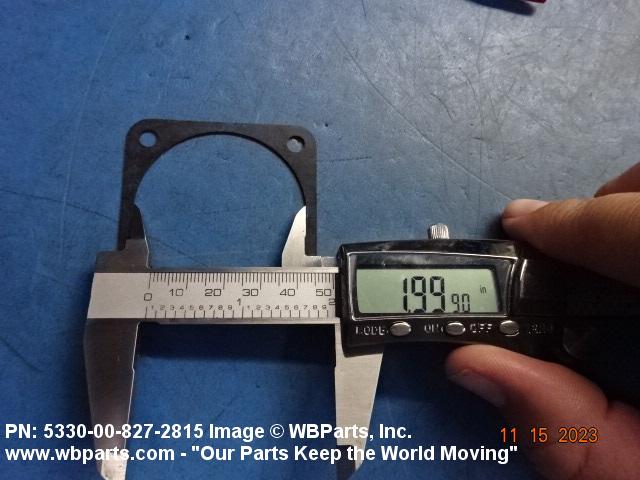

| APERTURE DIAMETER | 2.000 INCHES MINIMUM AND 2.016 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 4 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-52481 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A52481-12 |
Restrictions/Controls & Freight Information | NSN 5330-00-827-2815
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
