Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-840-2741 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 9139521, 5330-00-840-2741, 00-840-2741, 5330008402741, 008402741
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-840-2741 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-00-840-2741
Cross Reference | NSN 5330-00-840-2741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9139521 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-00-840-2741
5330-00-840-3010, 5330-00-840-3031, 5330-00-840-3272, 5330-00-840-3273, 5330-00-840-3437
Technical Data | NSN 5330-00-840-2741
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 2BC515ABF2Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |

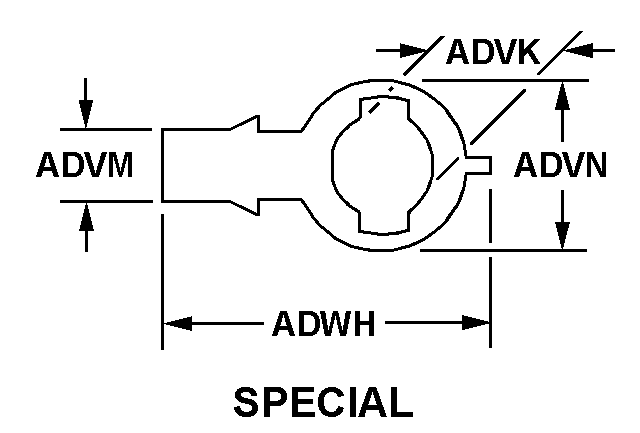

| CROSS-SECTIONAL SHAPE STYLE | H123 SPECIAL |
| CROSS SECTION INSIDE DIAMETER | 0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| CROSS-SECTIONAL THICKNESS | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| CROSS-SECTIONAL WIDTH | 0.656 INCHES MINIMUM AND 0.688 INCHES MAXIMUM |
| FABRICATION METHOD | SOLID |

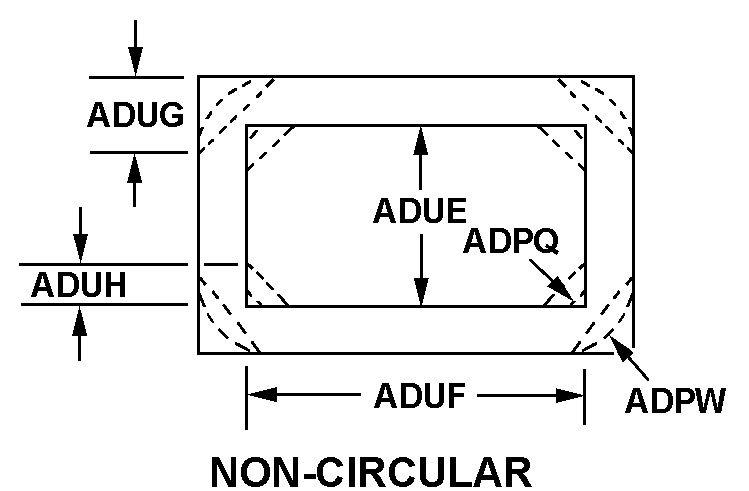

| STYLE DESIGNATOR | A4A NON-CIRCULAR |
| APERTURE WIDTH | 5.656 INCHES MINIMUM AND 5.696 INCHES MAXIMUM |
| APERTURE LENGTH | 21.756 INCHES MINIMUM AND 21.796 INCHES MAXIMUM |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9139521 |
