NSN 5330-00-877-3524 6816047, 00-877-3524, 008773524
Product Details | SEAL RETAINER
5330-00-877-3524 An item of various shapes and cross sections, usually flanged and designed to fit over a rod, shaft, or the like, for the purpose of encasing and posititioning a SEAL, PLAIN ENCASED or a SEAL, PLAIN. The flange is usually drilled for stud or bolt mounting. Item does not include the seal. Excludes RETAINER, PACKING.
Part Alternates: 6816047, 5330-00-877-3524, 00-877-3524, 5330008773524, 008773524
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-877-3524 | 50336 ( RETAINER, SEAL ) |
Drawings & Photos | NSN 5330-00-877-3524
Demand History | NSN 5330-00-877-3524
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-877-3524 | 2023-08-226 | 36 | US |
| 5330-00-877-3524 | 2023-01-08 | 2092 | DIBBS |
| 6816047 | 2022-12-354 | 128 | United States |
| 5330-00-877-3524 | 2022-10-301 | 1342 | DIBBS |
| 5330-00-877-3524 | 2022-10-298 | 32 | United States |
| 5330-00-877-3524 | 2022-10-290 | 1342 | DIBBS |
| 5330-00-877-3524 | 2022-05-145 | 2871 | DIBBS |
| 5330-00-877-3524 | 2022-04-115 | 1529 | DIBBS |
| 5330-00-877-3524 | 2022-04-102 | 1529 | DIBBS |
| 6816047 | 2020-02-49 | 188 | |
| 6816047 | 2019-10-287 | 12 | SG |
| 6816047 | 2019-05-137 | 12 | |
| 5330-00-877-3524 | 2019-04-105 | 505 | DIBBS |
| 5330-00-877-3524 | 2019-04-97 | 505 | DIBBS |
| 5330-00-877-3524 | 2019-03-74 | 1 | DIBBS-RFPs |
| 5330-00-877-3524 | 2015-02-48 | 6000 | DIBBS |
| 5330-00-877-3524 | 2015-02-36 | 6000 | DIBBS |
| 6816047 | 2014-03-83 | 8 | Ecuador |
| 6816047 | 2014-02-42 | 8 | Ecuador |
| 6816047 | 2014-01-17 | 248 | Indonesia |
| 6816047 | 2006-08-228 | 6 | Sri Lanka |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-877-3524
Technical Data | NSN 5330-00-877-3524
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

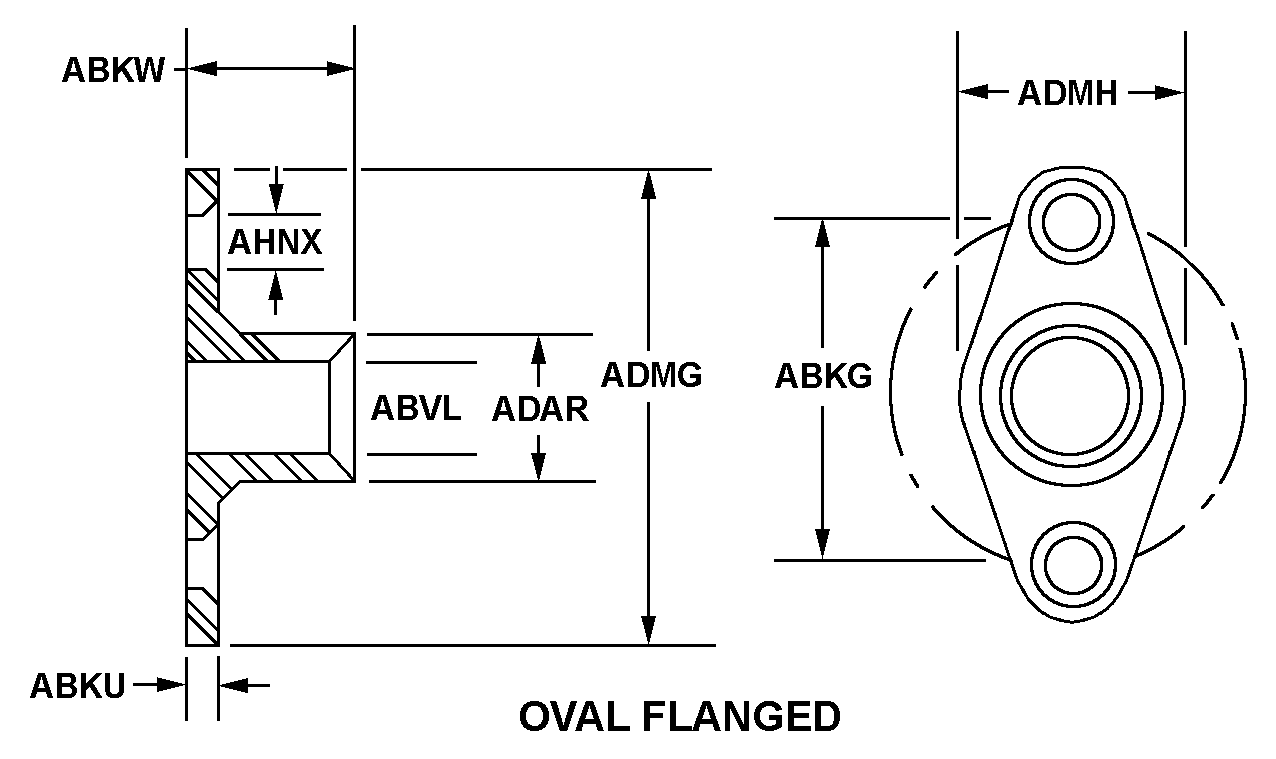

| STYLE DESIGNATOR | C6 OVAL FLANGED |
| FLANGE THICKNESS | 0.014 INCHES MINIMUM AND 0.018 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.038 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| APERTURE DIAMETER | 0.875 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.065 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 1.240 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.279 INCHES MINIMUM AND 0.288 INCHES MAXIMUM |
| SPECIAL FEATURES | GASKET, SPARK IGNITER MOUNTING |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6816047 |
Restrictions/Controls & Freight Information | NSN 5330-00-877-3524
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
