NSN 5330-00-884-2130 1272316, 00-884-2130, 008842130
Product Details | NONMETALLIC STRIP SEAL
5330-00-884-2130 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items having a square or rectangular cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to a specific shape, except round, with or without joints. It may have fabric, cord or metal reinforcement. Except for molded corners, end cuts, and mounting facilities such as holes, slots, press-fit buttons, or the like, the item must be of one continuous cross section. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER STRIP. For items with round cross sections see SEAL, NONMETALLIC ROUND SECTION. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: 1272316, 5330-00-884-2130, 00-884-2130, 5330008842130, 008842130
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-884-2130 | 36874 ( SEAL, NONMETALLIC STRIP ) |
Drawings & Photos | NSN 5330-00-884-2130
Cross Reference | NSN 5330-00-884-2130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1272316 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-884-2130
Technical Data | NSN 5330-00-884-2130
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3207 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |

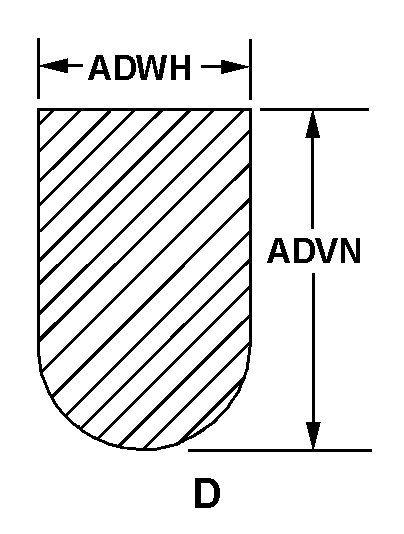

| CROSS-SECTIONAL SHAPE STYLE | G6 D |
| CROSS-SECTIONAL HEIGHT | 0.270 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.200 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |

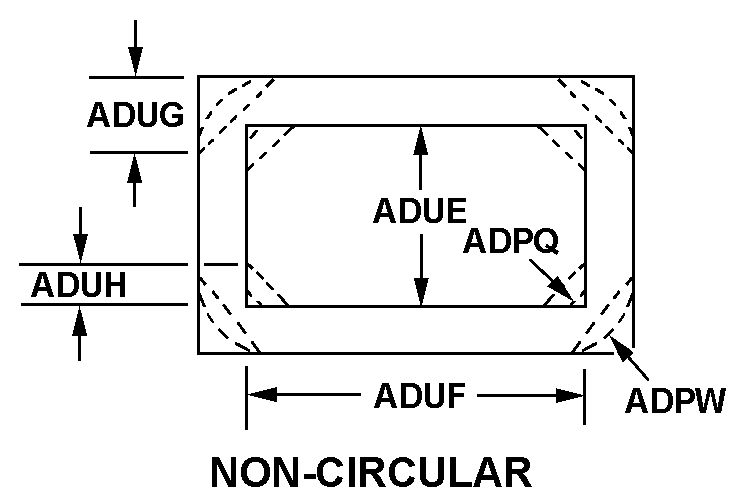

| STYLE DESIGNATOR | A4D NON-CIRCULAR |
| INSIDE CORNER RADIUS | 0.500 INCHES NOMINAL |
| APERTURE WIDTH | 4.830 INCHES NOMINAL |
| APERTURE LENGTH | 7.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-884-2130
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-884-2130
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
