NSN 5330-00-893-0615 339C042H01, 00-893-0615, 008930615

Product Details | GASKET


5330-00-893-0615 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: 339C042H01, 5330-00-893-0615, 00-893-0615, 5330008930615, 008930615

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-893-0615

Drawings & Photos | NSN 5330-00-893-0615




Cross Reference | NSN 5330-00-893-0615


Part Number Cage Code Manufacturer
339C042H01 79500 WESTINGHOUSE ELECTRIC CORP
339C042H01 97942 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5330-00-893-0615


Technical Data | NSN 5330-00-893-0615


Characteristic Specifications
MATERIAL RUBBER CHLOROPRENE CLASS CR OVERALL
CROSS-SECTIONAL SHAPE STYLE F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL
CROSS-SECTIONAL THICKNESS 0.190 INCHES NOMINAL

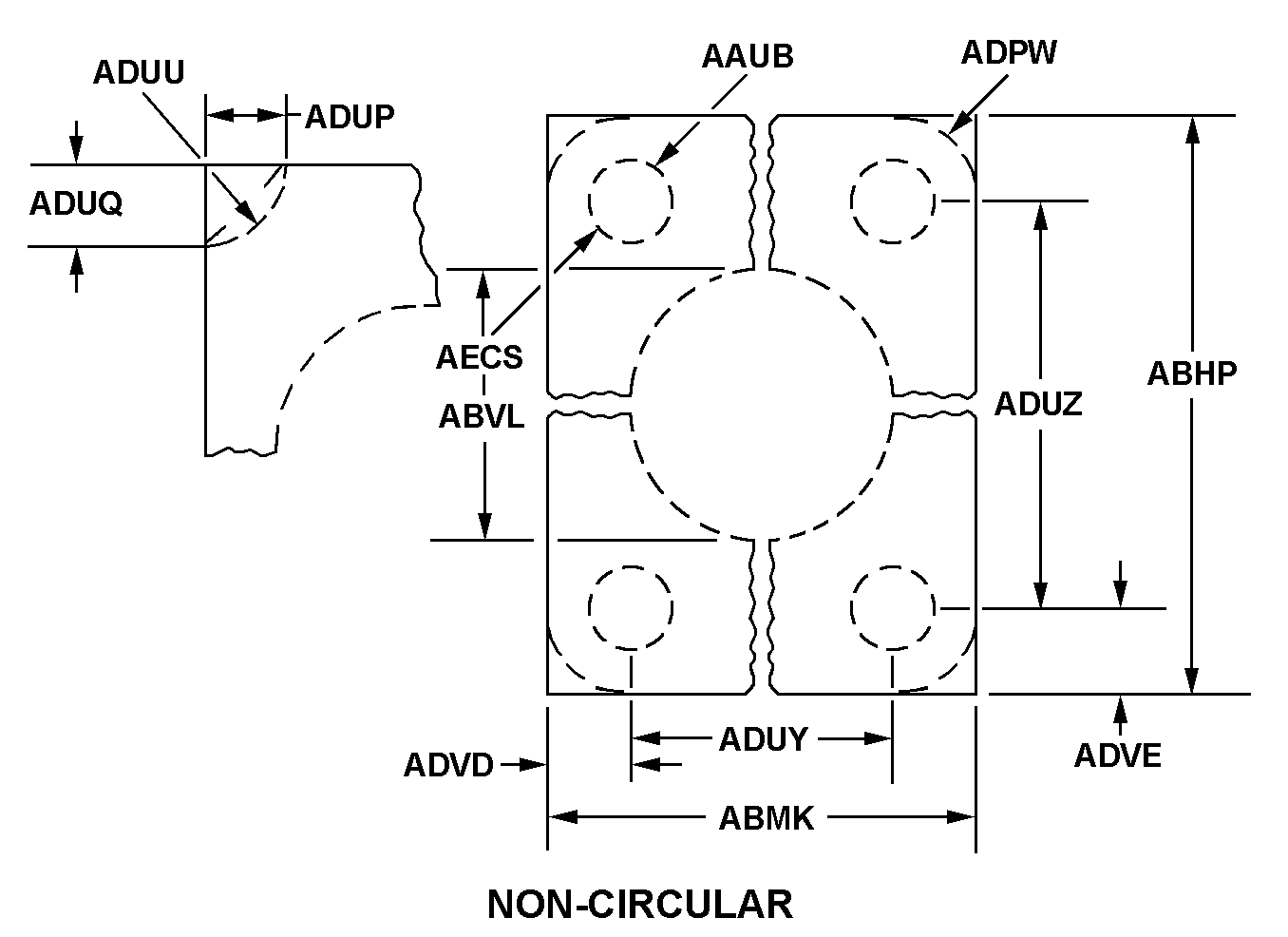

STYLE DESIGNATOR B18K NON-CIRCULAR
OVERALL LENGTH 5.250 INCHES NOMINAL
OVERALL WIDTH 5.250 INCHES NOMINAL
APERTURE DIAMETER 2.000 INCHES NOMINAL
OUTSIDE CORNER RADIUS 0.440 INCHES NOMINAL
MANUFACTURERS CODE 97942
DESIGN CONTROL REFERENCE 339C042H01

Restrictions/Controls & Freight Information | NSN 5330-00-893-0615


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 596 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5330-00-893-0615


Category Code Description
Cognizance Codes9ZNavy-owned stocks of defense industrial material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9IDefense Industrial Supply Center
Philadelphia, PA 19111
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
