NSN 5330-00-907-2247 C4B130475, C4B1304-75, 00-907-2247
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-00-907-2247 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: C4B130475, C4B1304-75, 5330-00-907-2247, 00-907-2247, 5330009072247, 009072247
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-907-2247 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-00-907-2247
Demand History | NSN 5330-00-907-2247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-00-907-2247 | 2014-04-94 | 1 | US |
| 5330-00-907-2247 | 2014-04-94 | 1 | US |
Cross Reference | NSN 5330-00-907-2247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C4B1304-75 | 71867 | BOMBARDIER AEROSPACE AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-907-2247
Technical Data | NSN 5330-00-907-2247
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SOLID |

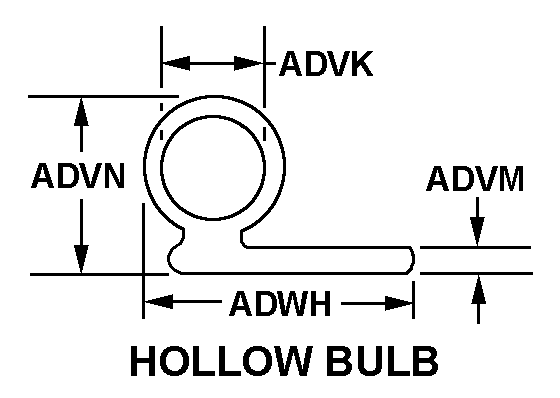

| CROSS-SECTIONAL SHAPE STYLE | H2 HOLLOW BULB |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A4E NON-CIRCULAR |
| ATTACHMENT METHOD | CEMENTED |
| SPECIAL FEATURES | 170.000 IN. LG,USED ON REAR SWINGING DOOR |
| MANUFACTURERS CODE | 71867 |
| DESIGN CONTROL REFERENCE | C4B1304-75 |
Restrictions/Controls & Freight Information | NSN 5330-00-907-2247
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
