NSN 5330-00-913-6055 NAS1598C08Y, 4575664, 457-5664
Product Details | PACKING WITH RETAINER
5330-00-913-6055 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS1598C08Y, 4575664, 457-5664 , 5330-00-913-6055, 00-913-6055, 5330009136055 , 009136055
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-913-6055 | 05680 ( PACKING WITH RETAINER ) |

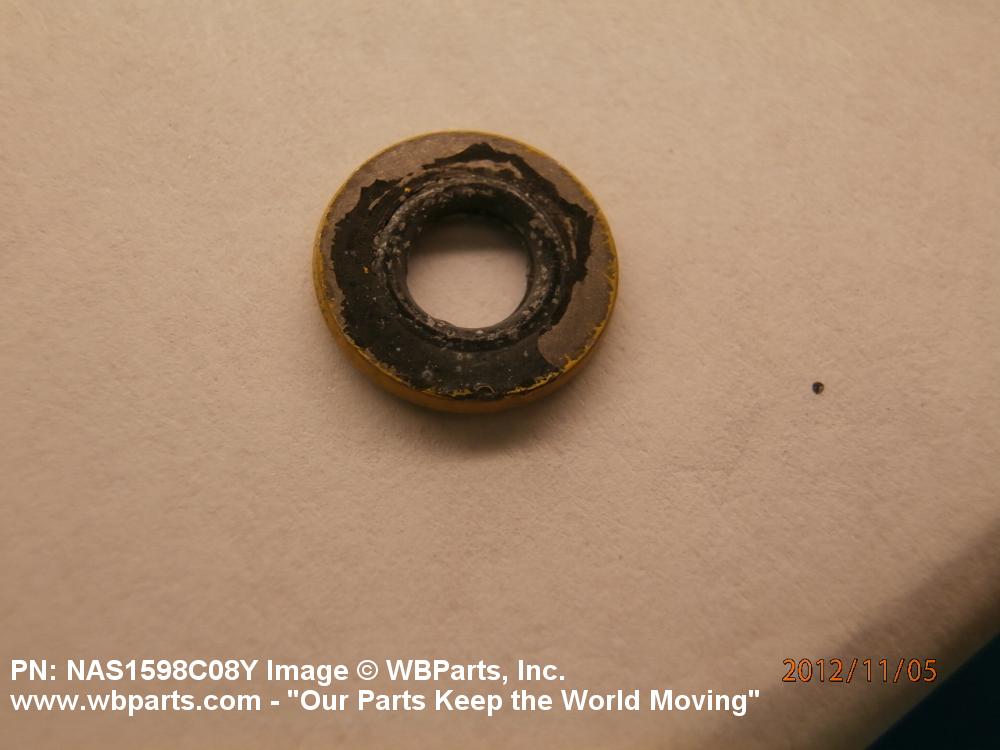

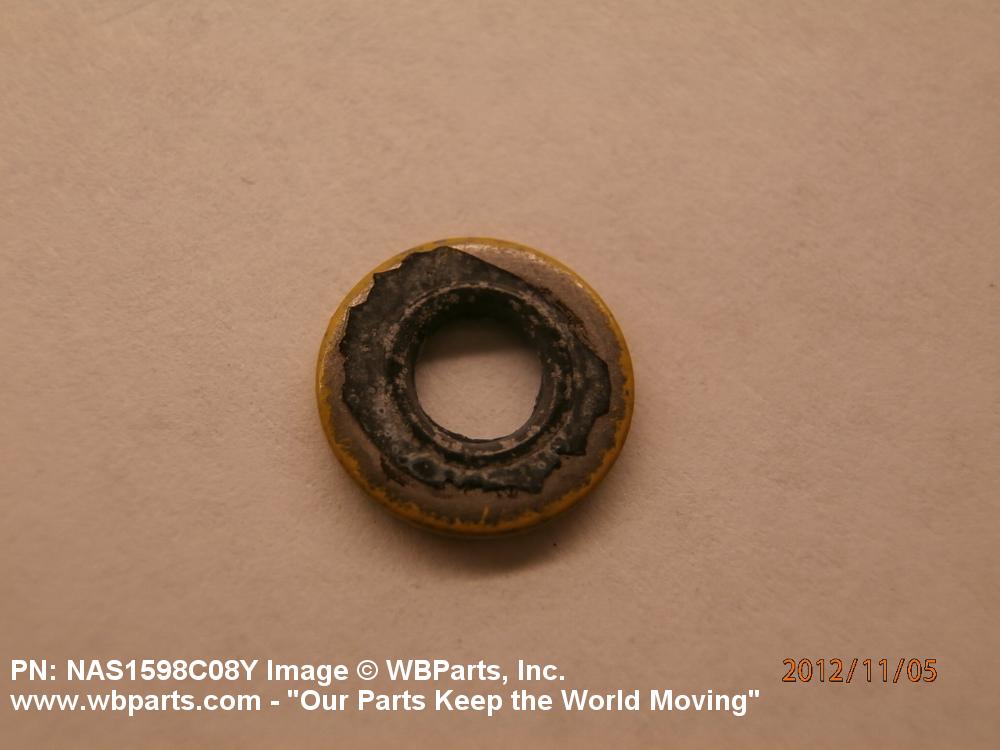

Drawings & Photos | NSN 5330-00-913-6055
Demand History | NSN 5330-00-913-6055
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1598C08Y | 2021-01-19 | 300 | Netherlands |
| NAS1598C08Y | 2020-11-307 | 50 | United States |
| NAS1598C08Y | 2020-11-307 | 100 | United States |
| NAS1598C08Y | 2012-10-296 | 120 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-00-913-6055
Technical Data | NSN 5330-00-913-6055
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR PACKING STEEL CORROSION RESISTING RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-7362,TY 2 MIL SPEC SINGLE MATERIAL RESPONSE PACKING |
| SURFACE TREATMENT | PASSIVATE RETAINER |
| CONSTRUCTION | ONE-PIECE |
| OUTSIDE DIAMETER | 0.370 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| PACKING INSIDE DIAMETER | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| RETAINER THICKNESS | 0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.050 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-00-913-6055
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-913-6055
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
