NSN 5330-00-944-5941 MS2719614, MS27196-14, MS2719624

Product Details | GASKET

5330-00-944-5941 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.

Part Alternates: MS2719614, MS27196-14, MS2719624, MS27196-24, XG0299100102 , 5330-00-944-5941, 00-944-5941, 5330009445941, 009445941

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 MAR 1966	00-944-5941	04522 ( GASKET )

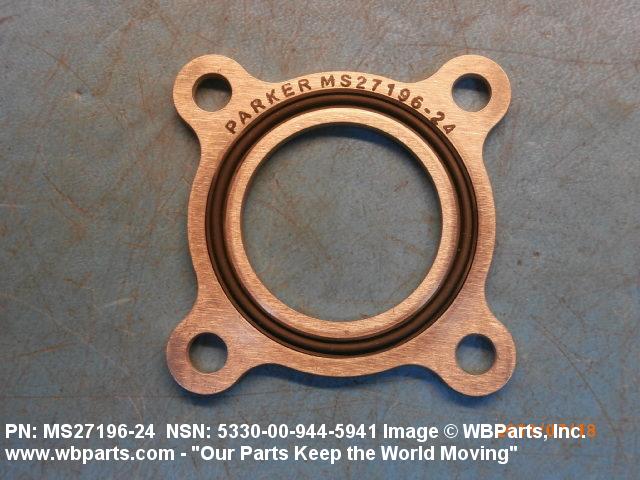

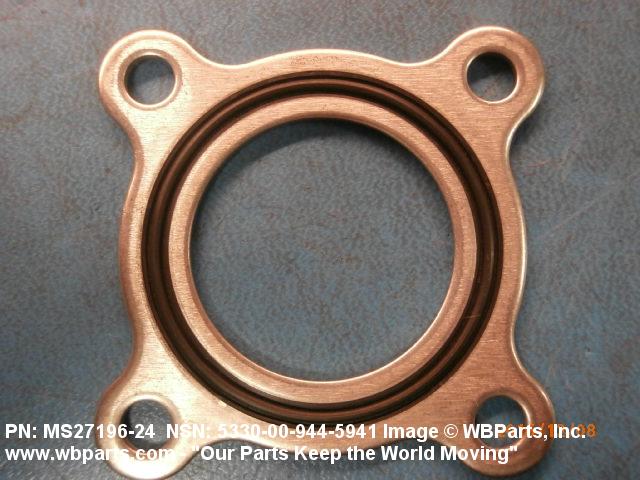

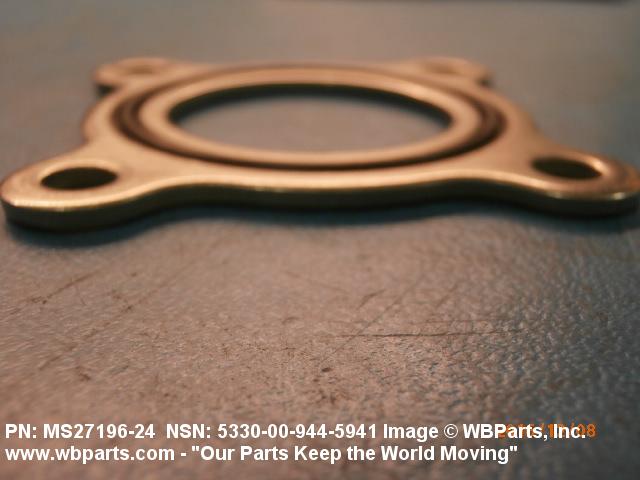

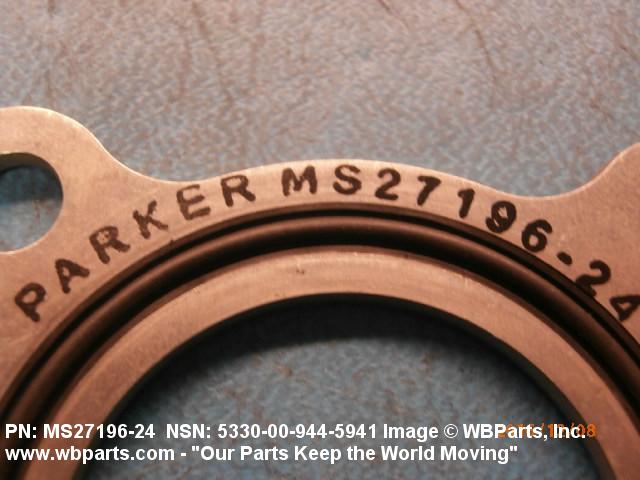

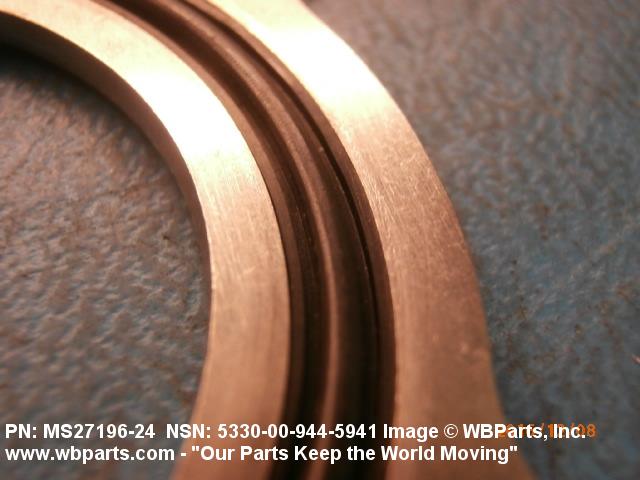

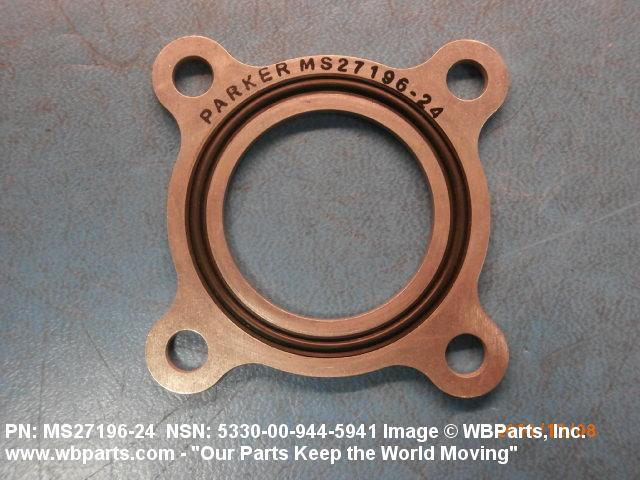

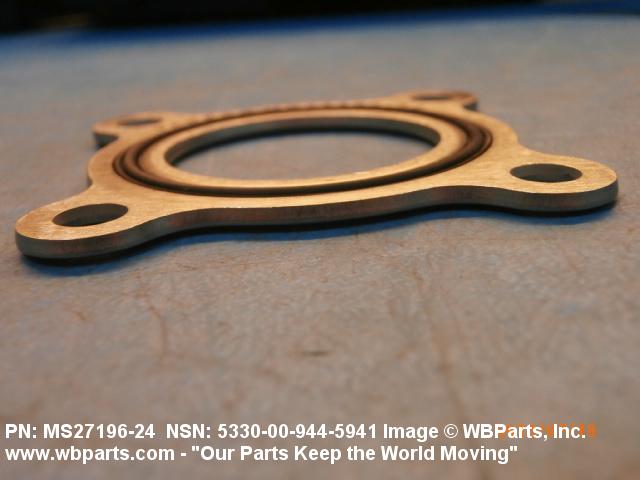

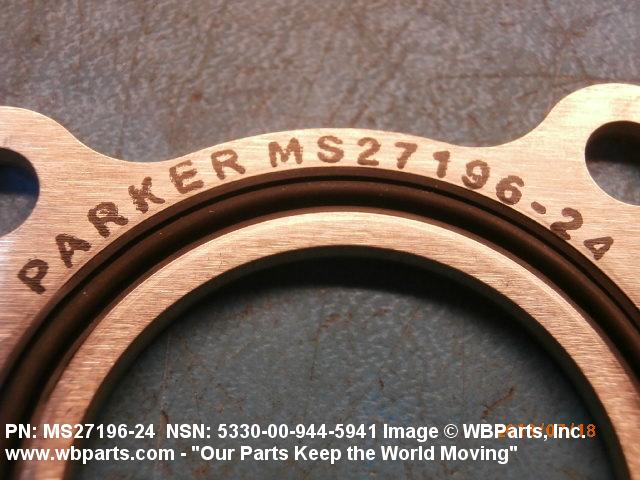

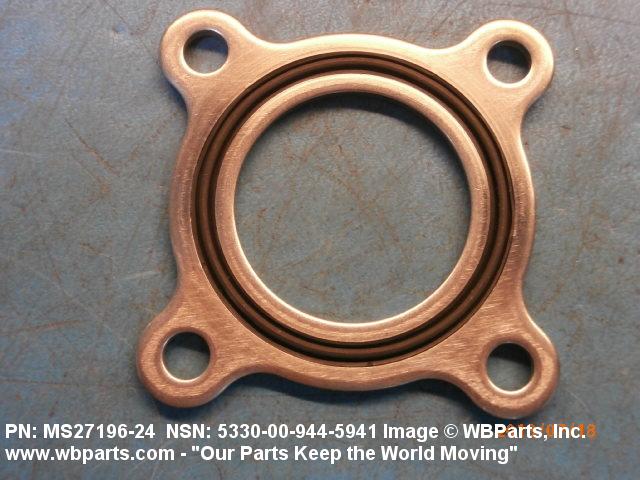

Drawings & Photos | NSN 5330-00-944-5941

Part Number	Request Date	QTY	Origin
5330-00-944-5941	2025-10-289	331	DIBBS
5330-00-944-5941	2025-07-201	434	DIBBS
MS2719624	2025-04-97	10	us
5330-00-944-5941	2025-03-79	298	DIBBS
MS2719624	2025-03-73	1	Japan
5330-00-944-5941	2024-05-137	244	DIBBS
MS2719624	2024-01-10	1	US
MS2719624	2022-10-280	4	United States
MS2719624	2022-07-208	229	United States
5330-00-944-5941	2022-06-160	7	US
5330-00-944-5941	2021-06-168	25	United States
MS2719624	2020-03-80	28	US
MS2719624	2019-04-112	2	United States
5330-00-944-5941	2018-10-304	1	DIBBS-RFPs
MS2719624	2018-07-205	15	United States
MS2719624	2018-07-204	4	United States
MS2719624	2018-07-193	4	United States
5330-00-944-5941	2018-05-142	11	US
5330-00-944-5941	2018-05-142	110	US
5330-00-944-5941	2018-05-142	275	US
5330-00-944-5941	2018-05-142	520	US
5330-00-944-5941	2018-05-142	1050	US
5330-00-944-5941	2018-05-142	2550	US
5330-00-944-5941	2018-05-142	5100	US
MS27196-24	2018-05-135	1	FX
MS2719624	2017-04-118	6	United States
MS2719624	2017-03-69	6	United States
MS2719624	2017-02-39	1	United States
MS2719624	2017-01-31	1	US
MS2719624	2016-12-341	4	us
MS2719624	2016-03-70	3	United States
MS2719624	2014-12-336	100	US
5330-00-944-5941	2013-04-108	400	DIBBS
5330-00-944-5941	2009-08-238	320	DIBBS
5330-00-944-5941	2009-08-225	320	DIBBS
5330-00-944-5941	2009-07-182	889	DIBBS
5330-00-944-5941	2008-11-331	2	MX
5330-00-944-5941	2008-07-189	1	US
5330-00-944-5941	2008-06-175	2	UM
5330-00-944-5941	2008-06-175	2	UM

Cross Reference | NSN 5330-00-944-5941

Part Number	Cage Code	Manufacturer
MS27196-24	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27196-24	83259	PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS
MS27196-24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-00-944-5941

Compare

Related Products | NSN 5330-00-944-5941

5330-00-944-5952, 5330-00-944-6059, 5330-00-944-6354, 5330-00-944-6675, 5330-00-944-6676

Technical Data | NSN 5330-00-944-5941

Characteristic	Specifications
MATERIAL	STEEL COMP 302 AND RUBBER FLUOROCARBON CLASS FPM OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-R-83248 TY 2,CL 1 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
CROSS-SECTIONAL SHAPE STYLE	F50 METAL AND SYNTHETIC RUBBER

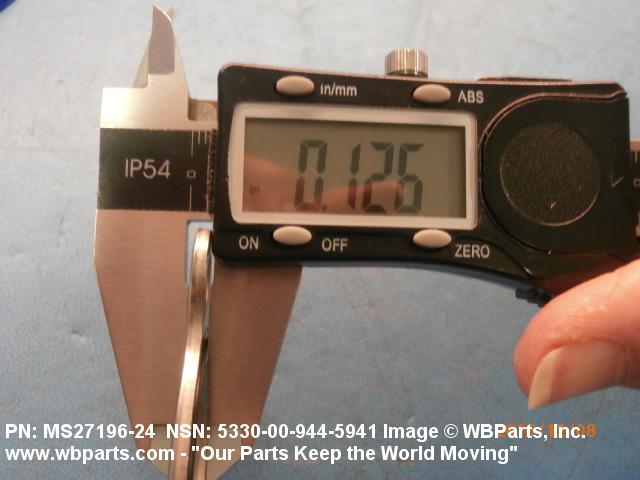

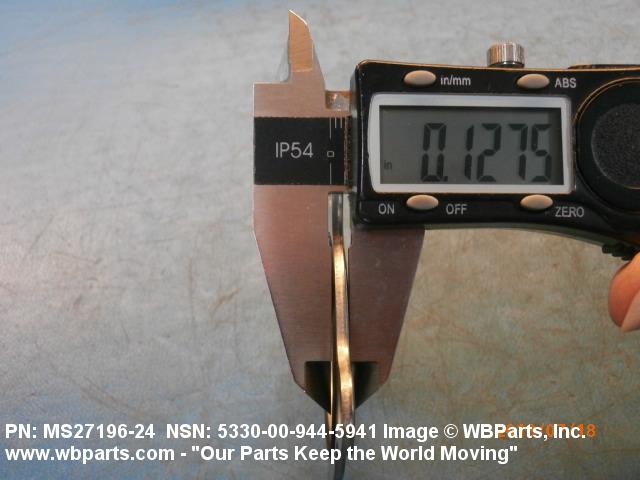

CROSS-SECTIONAL THICKNESS	0.132 INCHES NOMINAL

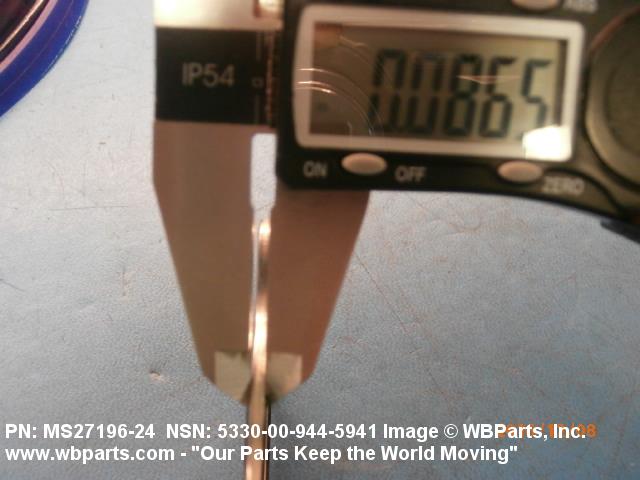

GAGE RING THICKNESS	0.084 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
STYLE DESIGNATOR	B21A NON-CIRCULAR

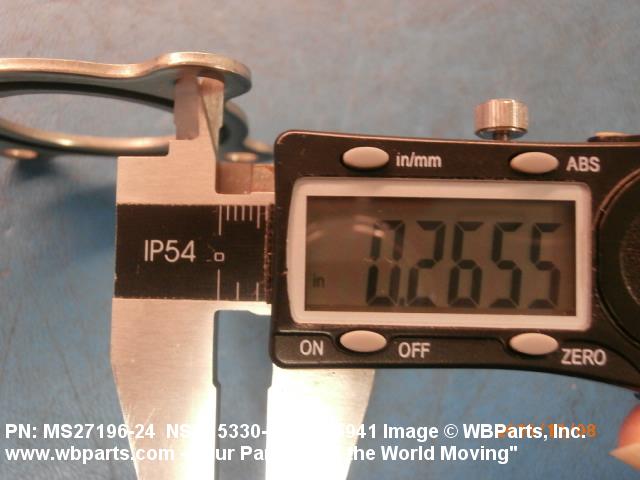

HOLE DIAMETER	0.261 INCHES MINIMUM AND 0.276 INCHES MAXIMUM

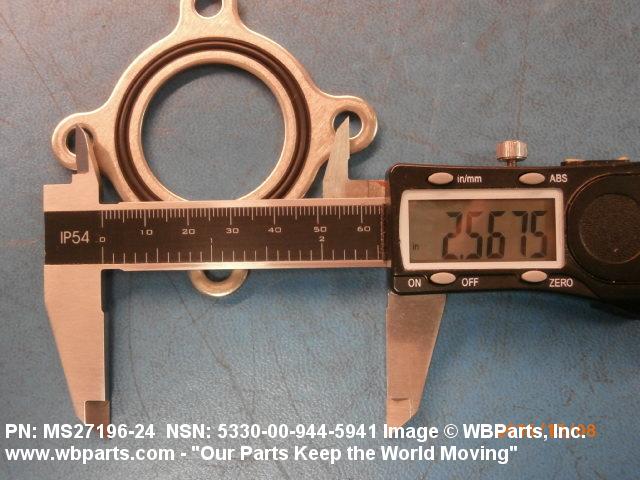

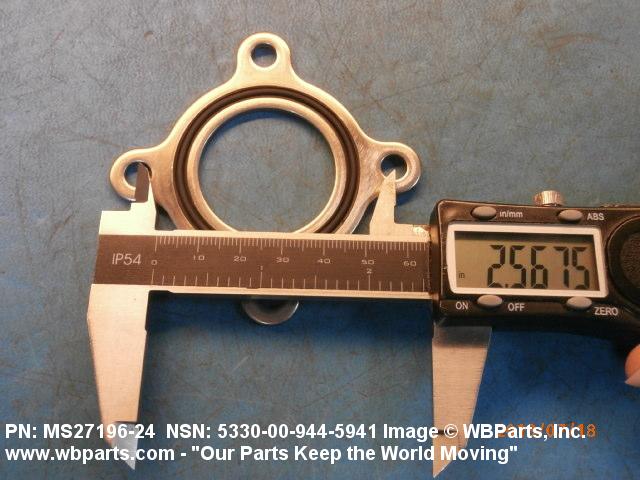

BOLT CIRCLE DIAMETER	2.558 INCHES MINIMUM AND 2.568 INCHES MAXIMUM

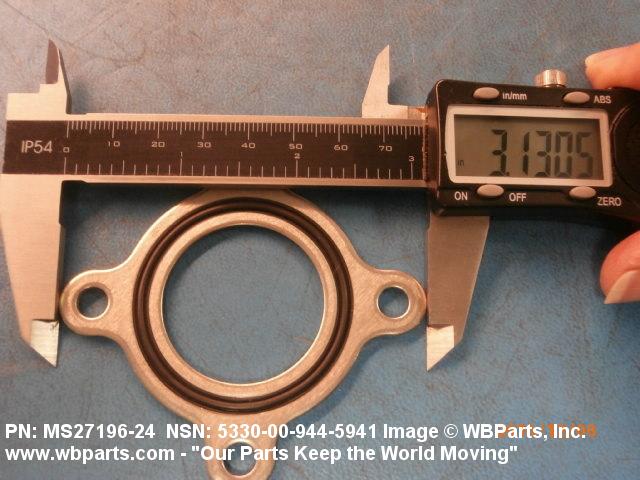

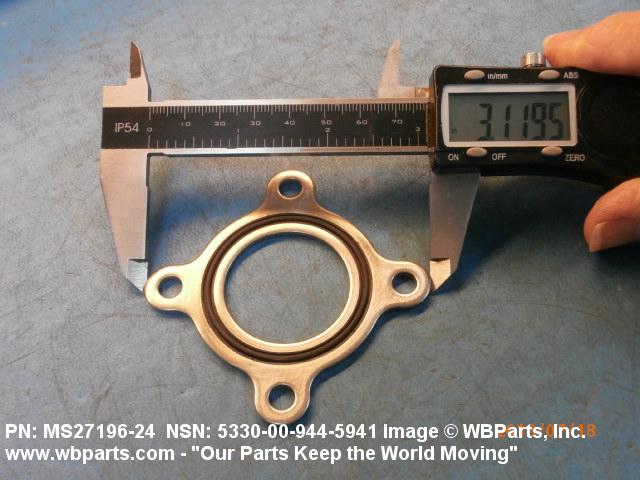

OVERALL WIDTH	3.125 INCHES NOMINAL

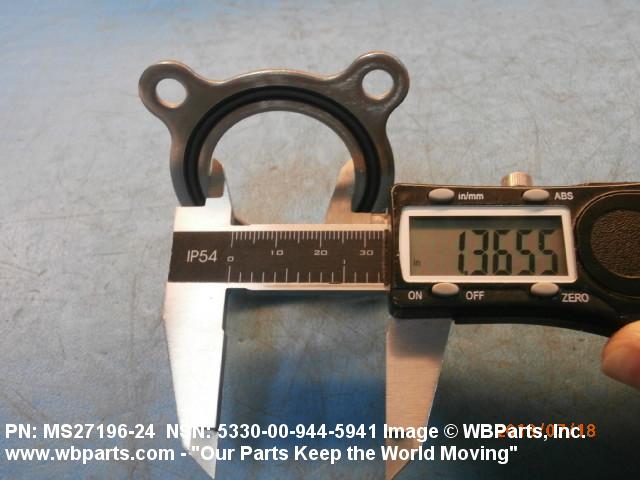

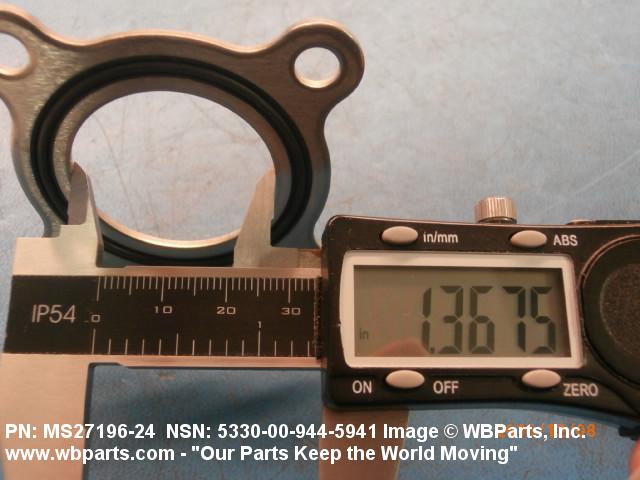

APERTURE DIAMETER	1.367 INCHES MINIMUM AND 1.377 INCHES MAXIMUM

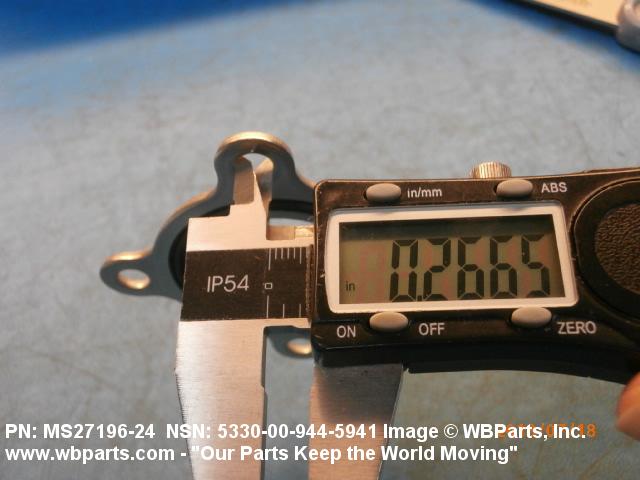

OUTSIDE CORNER RADIUS	0.266 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
OUTSIDE CORNER INVERTED RADIUS	0.266 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
SIDE RADIUS FROM GASKET CENTER	1.057 INCHES MINIMUM AND 1.067 INCHES MAXIMUM
BOLT HOLE QUANTITY	4

Restrictions/Controls & Freight Information | NSN 5330-00-944-5941

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-00-944-5941

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
