Product Details | PREFORMED PACKING
5330-00-953-4562 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: 08242394, 082-42394, 5330-00-953-4562, 00-953-4562, 5330009534562, 009534562
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAY 1966 | 00-953-4562 | 04521 ( PACKING, PREFORMED ) |

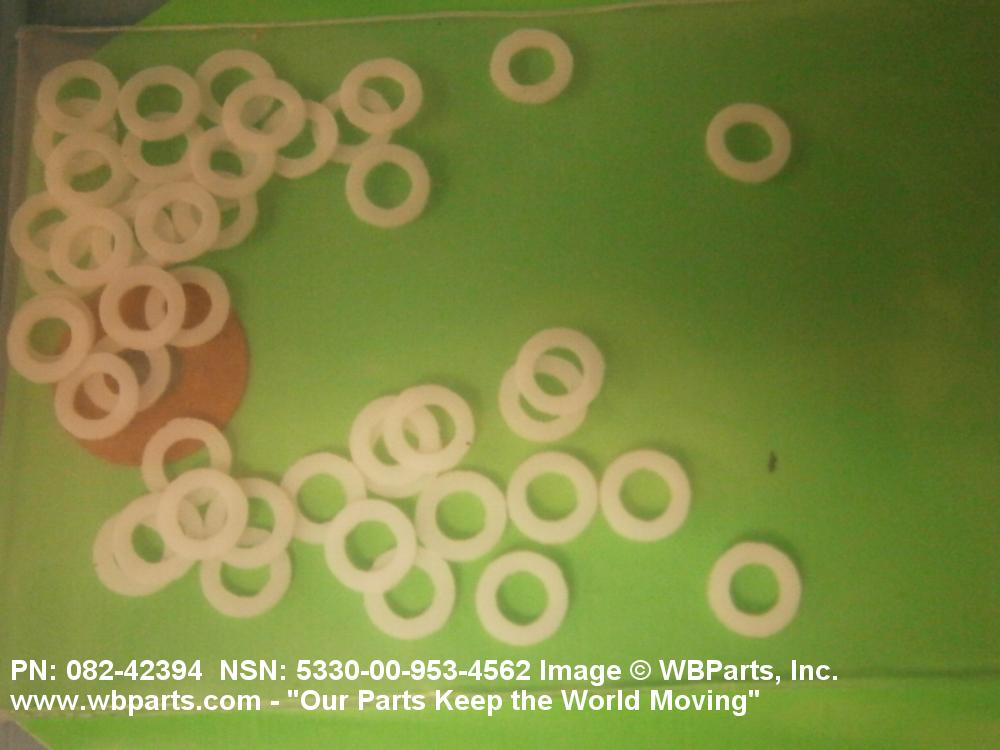

Drawings & Photos | NSN 5330-00-953-4562
Demand History | NSN 5330-00-953-4562
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 082-42394 | 2019-06-03 | 63 | DIBBS |
| 082-42394 | 2019-05-12 | 10 | DIBBS |
| 082-42394 | 2019-04-18 | 94 | DIBBS |
| 082-42394 | 2019-02-21 | 9 | DIBBS |
| 08242394 | 2012-08-14 | 40 | United States |
| 5330-00-953-4562 | 2012-08-09 | 40 | United States |
| 5330-00-953-4562 | 2012-08-09 | 40 | United States |
| 5330-00-953-4562 | 2012-06-04 | 30 | United States |
| 08242394 | 2012-05-09 | 10 | Canada |
| 08242394 | 2012-05-03 | 10 | Canada |
Cross Reference | NSN 5330-00-953-4562
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 082-42394 | 94697 | MOOG, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-00-953-4562
5330-00-953-4563, 5330-00-953-4573, 5330-00-953-4574, 5330-00-953-4575, 5330-00-953-4576
Technical Data | NSN 5330-00-953-4562
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYPROPYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D2 SQUARE/RECTANGULAR |
| CROSS-SECTIONAL HEIGHT | 0.011 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.142 INCHES MINIMUM AND 0.144 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 0.239 INCHES NOMINAL |
| JOINT TYPE | SCARF-PERIPHERAL OVERALL |
| MANUFACTURERS CODE | 94697 |
| DESIGN CONTROL REFERENCE | 082-42394 |
Restrictions/Controls & Freight Information | NSN 5330-00-953-4562
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-00-953-4562
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
