NSN 5330-01-016-7566 NAS1523C4H, K7031046, K7031-04-6

Product Details | PACKING WITH RETAINER

5330-01-016-7566 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.

Part Alternates: NAS1523C4H, K7031046, K7031-04-6, 5330-01-016-7566, 01-016-7566, 5330010167566, 010167566

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 FEB 1976	01-016-7566	05680 ( PACKING WITH RETAINER )

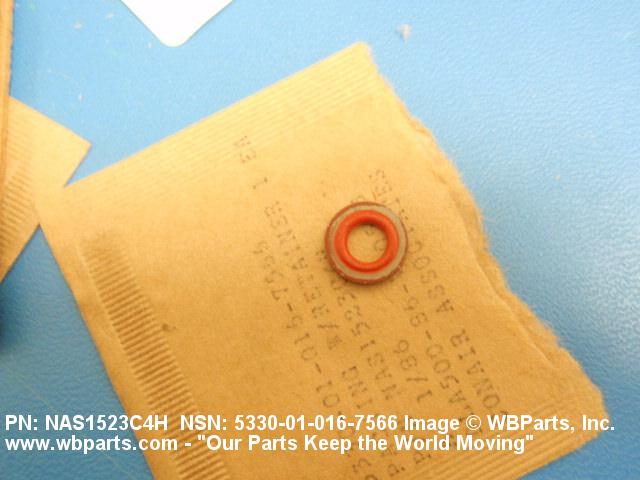

Drawings & Photos | NSN 5330-01-016-7566

Part Number	Request Date	QTY	Origin
NAS1523C4H	2025-02-51	70	United States
5330-01-016-7566	2021-11-308	248	DIBBS
5330-01-016-7566	2017-03-89	102	DIBBS
5330-01-016-7566	2017-03-81	102	DIBBS
5330-01-016-7566	2014-06-171	1000	US
NAS1523C4H	2012-03-61	100	US
K7031046	2011-03-63	200	United States
NAS1523C4H	2011-03-63	400	United States
K7031046	2010-08-225	20	US
K7031046	2009-12-335	200	United States
NAS1523C4H	2009-04-98	250	United States
K7031046	2008-01-29	1000	United States
K7031046	2007-11-318	800	United States
K7031046	2007-03-61	1000	US

Cross Reference | NSN 5330-01-016-7566

Part Number	Cage Code	Manufacturer
K7031-04-6	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1523C4H	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
