NSN 5330-01-017-5582 62400033, 62400-033, 62400-105 PIECE 46
Product Details | GASKET
5330-01-017-5582 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 62400033, 62400-033, 62400-105 PIECE 46, 62400105PIECE46, 5330-01-017-5582, 01-017-5582, 5330010175582, 010175582
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAR 1976 | 01-017-5582 | 04522 ( GASKET ) |

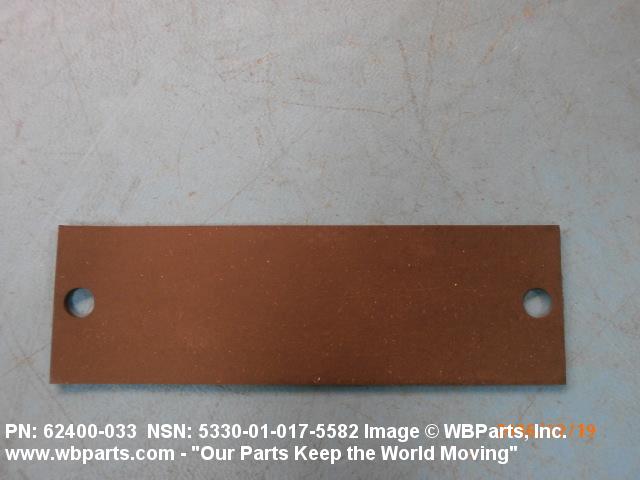

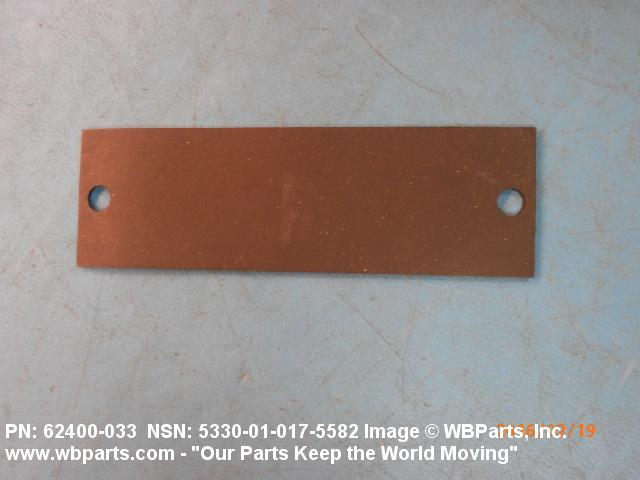

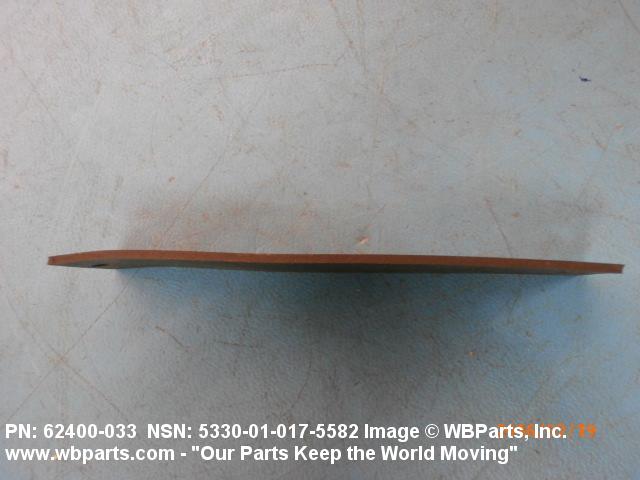

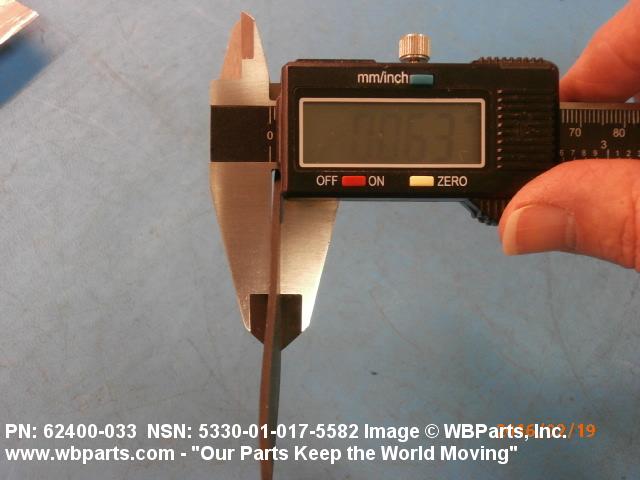

Drawings & Photos | NSN 5330-01-017-5582
Demand History | NSN 5330-01-017-5582
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 62400-033 | 2022-04-97 | 160 | DIBBS |
| 62400033 | 2016-02-43 | 7 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-017-5582
Technical Data | NSN 5330-01-017-5582
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-900 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 40.0 SHORE DUROMETER A MINIMUM AND 50.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | B19A NON-CIRCULAR |

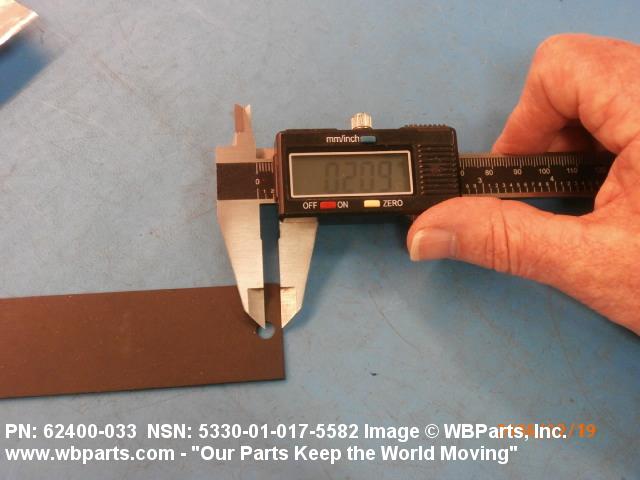

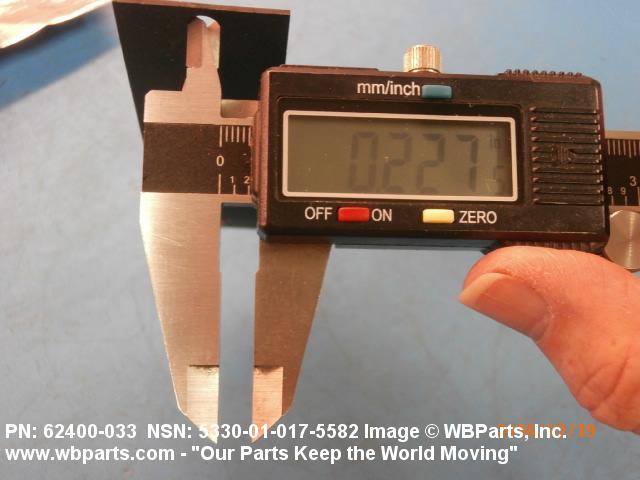

| HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |

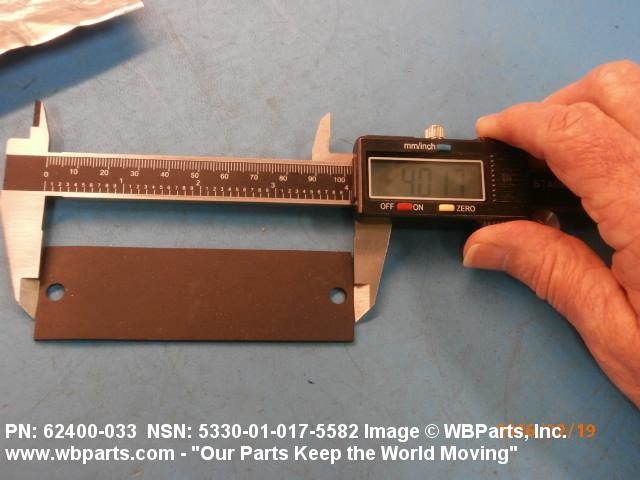

| OVERALL LENGTH | 3.980 INCHES MINIMUM AND 4.020 INCHES MAXIMUM |

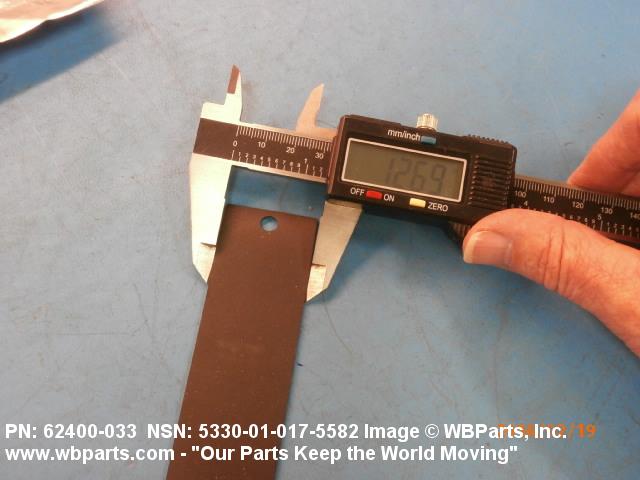

| OVERALL WIDTH | 1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM |

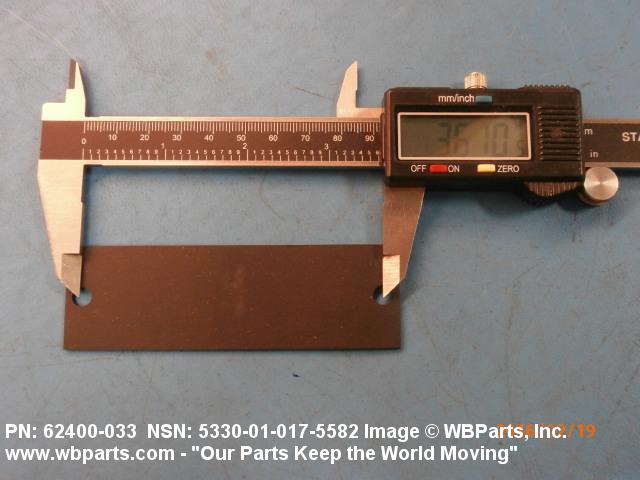

| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 3.600 INCHES MINIMUM AND 3.640 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.170 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |

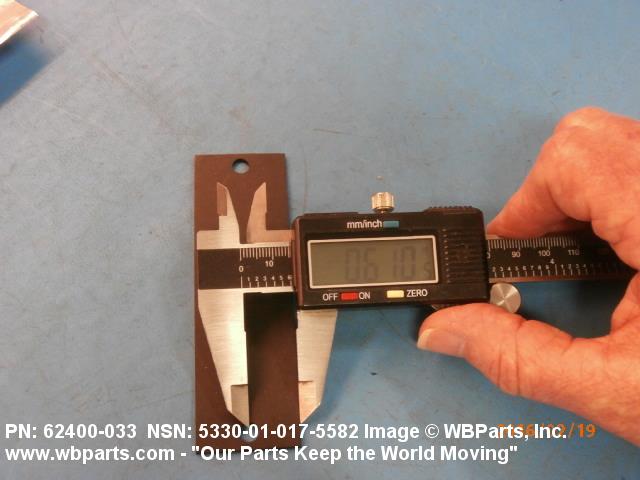

| BOLT HOLE CENTERLINE TO NEAREST EDGE DISTANCE | 0.600 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 2 |
| III TEMP RATING | -20.0 DEG FAHRENHEIT AND 130.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 12763 |
| DESIGN CONTROL REFERENCE | 62400-033 |
Restrictions/Controls & Freight Information | NSN 5330-01-017-5582
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-017-5582
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
