NSN 5330-01-025-4408 A06486.009.142, A06486009142, A6468.009.142
Product Details | GASKET
5330-01-025-4408 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: A06486.009.142, A06486009142, A6468.009.142, A6468009142, A6486.009.142, A6486.009.142 T FN, A6486009142, A6486009142TFN, A6486-009-142TFN, AS568-009MILP19 468, AS568009MILP19468, 20107 PC 14, 20107 PC NO 14, 20107PC14, 20107PCNO14, 20197 FIND 9, 20197FIND9, 20260 FIND 10, 20260FIND10, 20261 FIND 10, 20261FIND10, 20313PIECE10, 8551 PIECE 8, 8551PIECE8, 8575 PIECE 8, 8575PIECE8, 8600 PIECE 22, 8600PIECE22, 9921 PIECE 14, 9921PIECE14, 5330-01-025-4408, 01-025-4408, 5330010254408, 010254408
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 AUG 1976 | 01-025-4408 | 04522 ( GASKET ) |

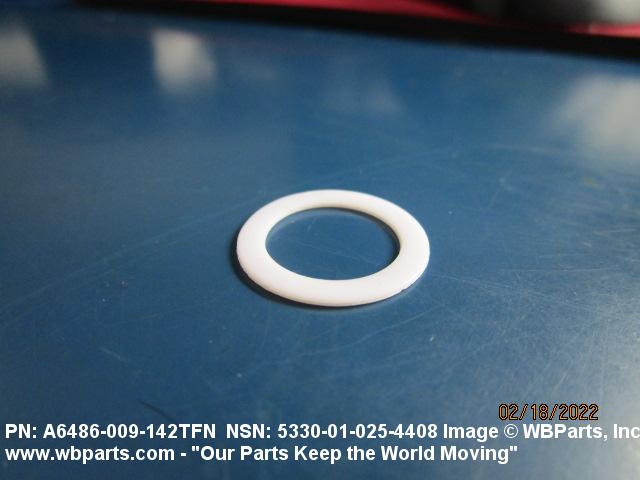

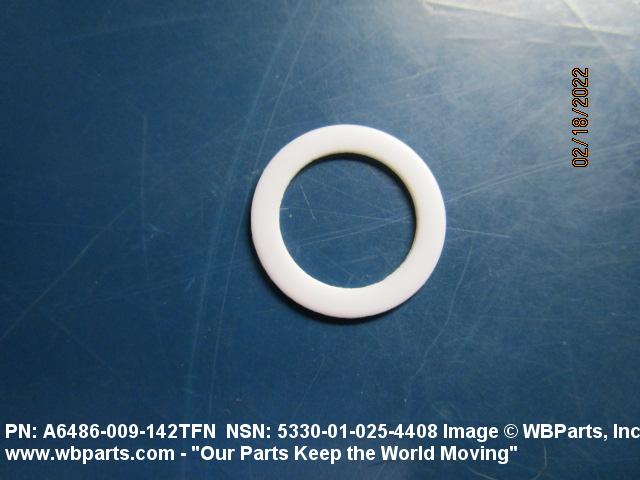

Drawings & Photos | NSN 5330-01-025-4408
Demand History | NSN 5330-01-025-4408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20107 PC 14 | 2024-03-81 | 311 | DIBBS |
| 20313PIECE10 | 2024-03-81 | 311 | DIBBS |
| A6486-009-142TFN | 2024-03-81 | 311 | DIBBS |
| 20107 PC 14 | 2023-09-262 | 311 | DIBBS |
| 20313PIECE10 | 2023-09-262 | 311 | DIBBS |
| A6486-009-142TFN | 2023-09-262 | 311 | DIBBS |
| 20107 PC 14 | 2023-04-117 | 311 | DIBBS |
| 20313PIECE10 | 2023-04-117 | 311 | DIBBS |
| A6486-009-142TFN | 2023-04-117 | 311 | DIBBS |
| 5330-01-025-4408 | 2022-02-41 | 186 | us |
| 20107 PC 14 | 2021-10-291 | 186 | DIBBS |
| 20313PIECE10 | 2021-10-291 | 186 | DIBBS |
| A6486-009-142TFN | 2021-10-291 | 186 | DIBBS |
| 20107 PC 14 | 2021-10-280 | 186 | DIBBS |
| 20313PIECE10 | 2021-10-280 | 186 | DIBBS |
| A6486-009-142TFN | 2021-10-280 | 186 | DIBBS |
| 20107 PC 14 | 2021-05-147 | 359 | DIBBS |
| 20313PIECE10 | 2021-05-147 | 359 | DIBBS |
| A6486-009-142TFN | 2021-05-147 | 359 | DIBBS |
| 20107 PC 14 | 2021-05-132 | 359 | DIBBS |
| 20313PIECE10 | 2021-05-132 | 359 | DIBBS |
| A6486-009-142TFN | 2021-05-132 | 359 | DIBBS |
| 20107 PC 14 | 2020-10-287 | 299 | DIBBS |
| 20313PIECE10 | 2020-10-287 | 299 | DIBBS |
| A6486-009-142TFN | 2020-10-287 | 299 | DIBBS |
| 20107 PC 14 | 2020-05-124 | 800 | DIBBS |
| 20313PIECE10 | 2020-05-124 | 800 | DIBBS |
| A6486-009-142TFN | 2020-05-124 | 800 | DIBBS |
| 20107 PC 14 | 2020-02-41 | 572 | DIBBS |
| 20313PIECE10 | 2020-02-41 | 572 | DIBBS |
| A6486-009-142TFN | 2020-02-41 | 572 | DIBBS |
| 20107 PC 14 | 2019-10-295 | 800 | DIBBS |
| 20313PIECE10 | 2019-10-295 | 800 | DIBBS |
| A6486-009-142TFN | 2019-10-295 | 800 | DIBBS |
| 20107 PC 14 | 2019-05-134 | 572 | DIBBS |
| 20313PIECE10 | 2019-05-134 | 572 | DIBBS |
| A6486-009-142TFN | 2019-05-134 | 572 | DIBBS |
| 20107 PC 14 | 2019-05-126 | 572 | DIBBS |
| 20313PIECE10 | 2019-05-126 | 572 | DIBBS |
| A6486-009-142TFN | 2019-05-126 | 572 | DIBBS |
| 20107 PC 14 | 2019-02-37 | 572 | DIBBS |
| 20313PIECE10 | 2019-02-37 | 572 | DIBBS |
| A6486-009-142TFN | 2019-02-37 | 572 | DIBBS |
| 5330-01-025-4408 | 2018-11-305 | 471 | DIBBS |
| 5330-01-025-4408 | 2017-12-353 | 355 | DIBBS |
| 5330-01-025-4408 | 2017-11-333 | 355 | DIBBS |
| 5330-01-025-4408 | 2008-05-148 | 3002 | DIBBS |
Cross Reference | NSN 5330-01-025-4408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20107 PC 14 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20107 PC NO 14 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20197 FIND 9 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20260 FIND 10 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20261 FIND 10 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 20313PIECE10 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 8551 PIECE 8 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 8575 PIECE 8 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 8600 PIECE 22 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| 9921 PIECE 14 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| A06486.009.142 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| A6468.009.142 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| A6486-009-142TFN | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| A6486.009.142 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| A6486.009.142 T FN | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AS568-009MILP19 468 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-025-4408
Related Products | NSN 5330-01-025-4408
Technical Data | NSN 5330-01-025-4408
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYURETHANE AND PAPER OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |

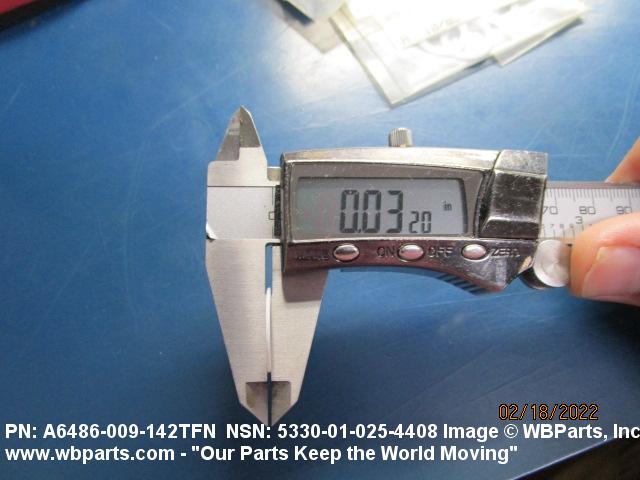

| CROSS-SECTIONAL THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

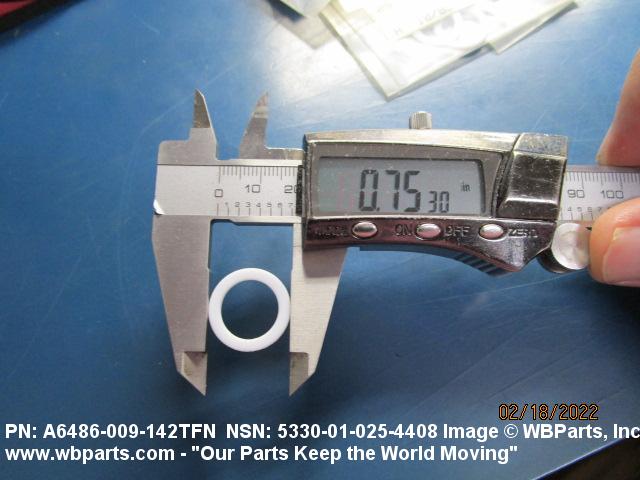

| OUTSIDE DIAMETER | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |

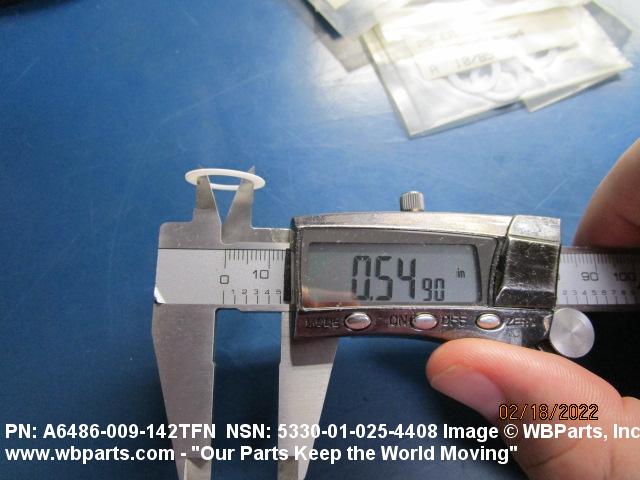

| APERTURE DIAMETER | 0.516 INCHES MINIMUM AND 0.546 INCHES MAXIMUM |
| MANUFACTURERS CODE | 01343 |
| DESIGN CONTROL REFERENCE | A6486-009-142TFN |
Restrictions/Controls & Freight Information | NSN 5330-01-025-4408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-025-4408
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
