NSN 5330-01-032-5115 11675391, 01-032-5115, 010325115
Product Details | NONMETALLIC ANGLE SEAL
5330-01-032-5115 An item fabricated from NONMETALLIC ANGLE. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting hole(s), slot(s), press fit buttons and the like, must be of one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; GASKET; and PACKING PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC ANGLE.
Part Alternates: 11675391, 5330-01-032-5115, 01-032-5115, 5330010325115, 010325115
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 DEC 1976 | 01-032-5115 | 32845 ( SEAL, NONMETALLIC ANGLE ) |
Drawings & Photos | NSN 5330-01-032-5115
Demand History | NSN 5330-01-032-5115
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-032-5115 | 2020-11-334 | 4 | DIBBS |
| 5330-01-032-5115 | 2020-11-334 | 5 | DIBBS |
| 5330-01-032-5115 | 2018-10-291 | 2 | DIBBS |
| 5330-01-032-5115 | 2018-02-58 | 1 | DIBBS |
| 5330-01-032-5115 | 2017-09-249 | 1 | DIBBS |
| 5330-01-032-5115 | 2011-07-189 | 12 | DIBBS |
| 5330-01-032-5115 | 2011-06-176 | 3 | DIBBS |
| 5330-01-032-5115 | 2011-06-176 | 5 | DIBBS |
| 5330-01-032-5115 | 2010-10-298 | 3 | DIBBS |
Cross Reference | NSN 5330-01-032-5115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11675391 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-032-5115
Technical Data | NSN 5330-01-032-5115
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | NATURAL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | J5 L SHAPE |
| RIGHT/BASE FLANGE HEIGHT | 0.690 INCHES NOMINAL |
| LEFT FLANGE HEIGHT | 1.500 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT TOE | 0.250 INCHES NOMINAL |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.250 INCHES NOMINAL |
| INNER RADIUS WHERE FLANGES JOIN | 0.190 INCHES NOMINAL |
| OUTER RADIUS WHERE FLANGES JOIN | 0.190 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 12.120 INCHES NOMINAL |
| LEFT TIP STYLE | J10A RIGHT TAPER |
| FIRST TIP TAPER LENGTH | 0.750 INCHES NOMINAL |
| FIRST TIP THICKNESS | 0.120 INCHES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | NOT IDENTICAL |

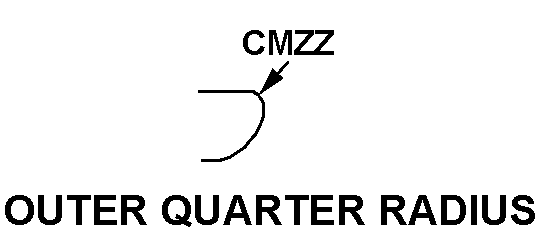

| RIGHT TIP STYLE | J3B OUTER QUARTER RADIUS |
| SECOND TIP RADIUS | 0.190 INCHES NOMINAL |
| SPECIAL FEATURES | RELIEVED 3 PLACES |
| III END ITEM IDENTIFICATION | M110 HOWITZER FAMILY |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11675391 |
Restrictions/Controls & Freight Information | NSN 5330-01-032-5115
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146150 | GUN CARRAIGE/GUN MOUNT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-032-5115
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
