NSN 5330-01-041-4802 4187940 , 01-041-4802, 010414802
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-041-4802 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 4187940 , 5330-01-041-4802, 01-041-4802, 5330010414802, 010414802
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAY 1977 | 01-041-4802 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-041-4802
Demand History | NSN 5330-01-041-4802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-041-4802 | 2012-02-54 | 100 | US |
Cross Reference | NSN 5330-01-041-4802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4187940 | 80212 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-041-4802
Technical Data | NSN 5330-01-041-4802
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 3347 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |

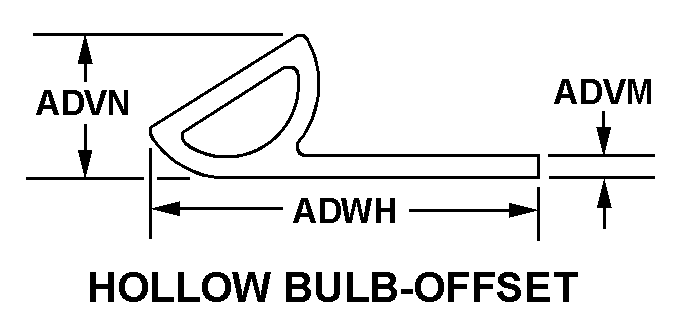

| CROSS-SECTIONAL SHAPE STYLE | H48 HOLLOW BULB-OFFSET |
| CROSS-SECTIONAL THICKNESS | 0.047 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.660 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 1.000 INCHES NOMINAL |
| FABRICATION METHOD | SOLID |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 23.500 INCHES MINIMUM AND 23.750 INCHES MAXIMUM |
| III SUPPLEMENTARY FEATURES | 2OCT00 ITEM REVIEWED UNDER GIRDER PROJECT. FG NON-CONCUR CANCELLATION ACTION |
| MANUFACTURERS CODE | 80212 |
| DESIGN CONTROL REFERENCE | 4187940 |
Restrictions/Controls & Freight Information | NSN 5330-01-041-4802
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | 25 | UNICOR-Federal Prison Industries Washington, DC 20534 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
